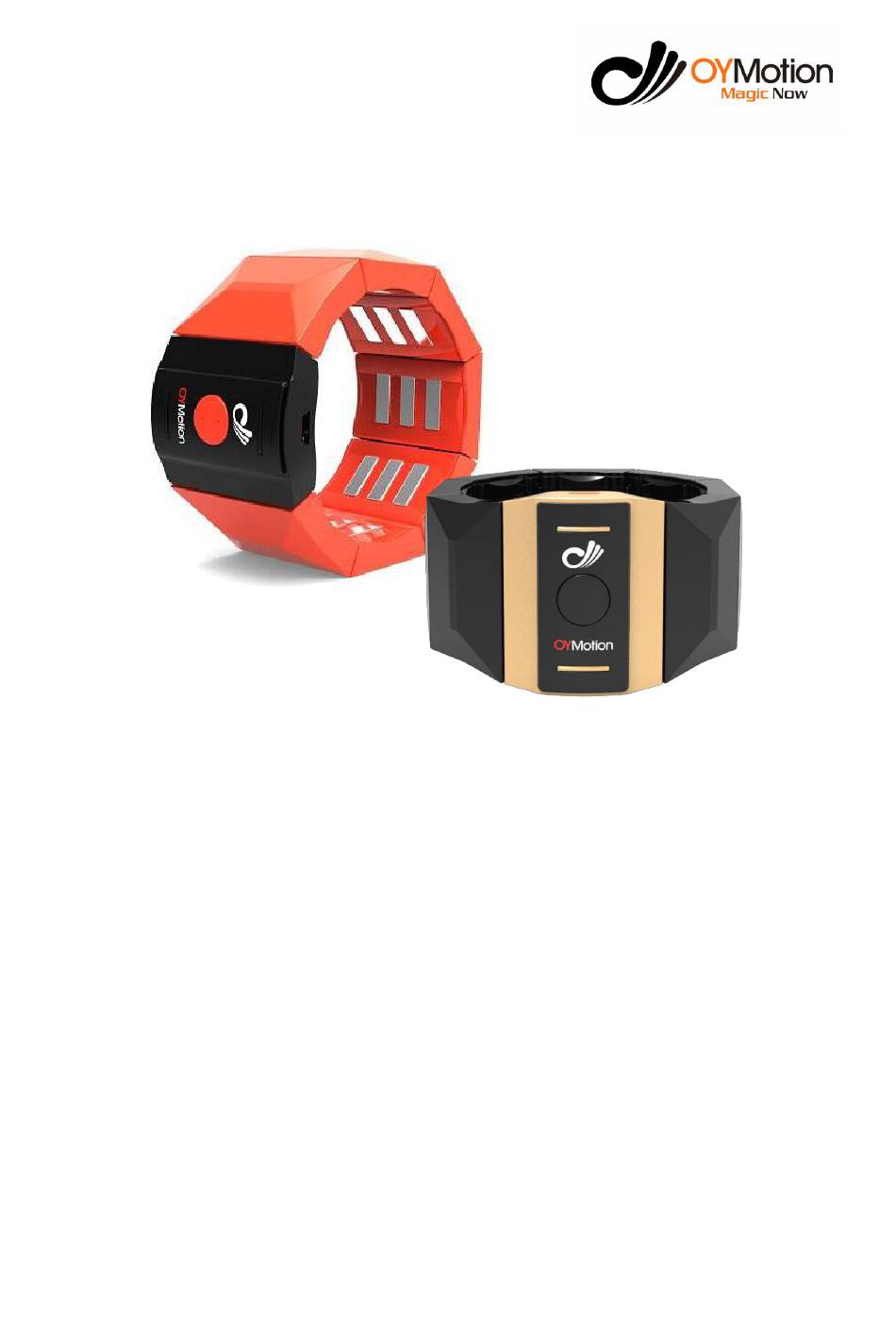

- Page 1 EMG Armband User Manual OYMotion Technologies, Co. Ltd Addr: Floor 3, Building 1, 400 Fang Chun Road, Shanghai, China Phone: +86-21-63210200 Email: info@oymotion.com Version 1.0...
- Page 2 4. Product model description............................1 5. Product structure and dimensions........................... 1 5.1. gForce EMG Armband’s hardware composition................... 1 5.2. gForce EMG Armband’s size and weight....................... 2 5.3. gForce Dongle bluetooth Data Transceiver....................2 6. System description and instructions.........................2 6.1. gForce support platform..........................2 6.2.
- Page 3 All Rights Reserved by OYMotion Technologies, Co. Ltd 1. Trademarks & Patents gForce is a registered trademark of OYmotion Technology Co., Ltd. (hereinafter referred to as OYmotion). gForce EMG Armband is registered and produced by OYmotion Technology Co., Ltd. with the patent owned by the company. Without the written permission of OYmotion Technology Co., Ltd., no other group or individual,may reproduce and disseminate any part of this document in...
- Page 4 65-90 mm Height 40 mm Thickness 10 mm Weight about 80 g 5.3. gForce Dongle Gforce Dongle is a USB Bluetooth data transceiver used with gforce EMG Armband. Measurement Index Measurement Value Length 35 mm Width 20 mm Thickness 8 mm Weight About 3.5 g...
- Page 5 The internal tools of the platform include web server, data collection service, machine learning engine and interface display service. 6.2.2. The personal gesture training, modeling and uploading of gforce EMG Armband can be completed through the guidance of OTrain platform to achieve personalized gesture...
- Page 6 All Rights Reserved by OYMotion Technologies, Co. Ltd 6.3. gForce and Arduino development board (additional purchase required) gForce Joint acts as a Bluetooth Center and can automatically establish a connection with gForce Pro Armband through Bluetooth BLE for data transmission. gForce Pro sends the recognized gesture index and quaternion values to gForce Joint.
- Page 7 All Rights Reserved by OYMotion Technologies, Co. Ltd Power waste 0.1W Battery 200mAh Power input USB 5V Gesture classification 8 kinds Gesture definition Support customization Support real-time output of original EMG data Sampling rate: 1000Hz（max） ADC：8bit Original EMG data ...
- Page 8 FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
