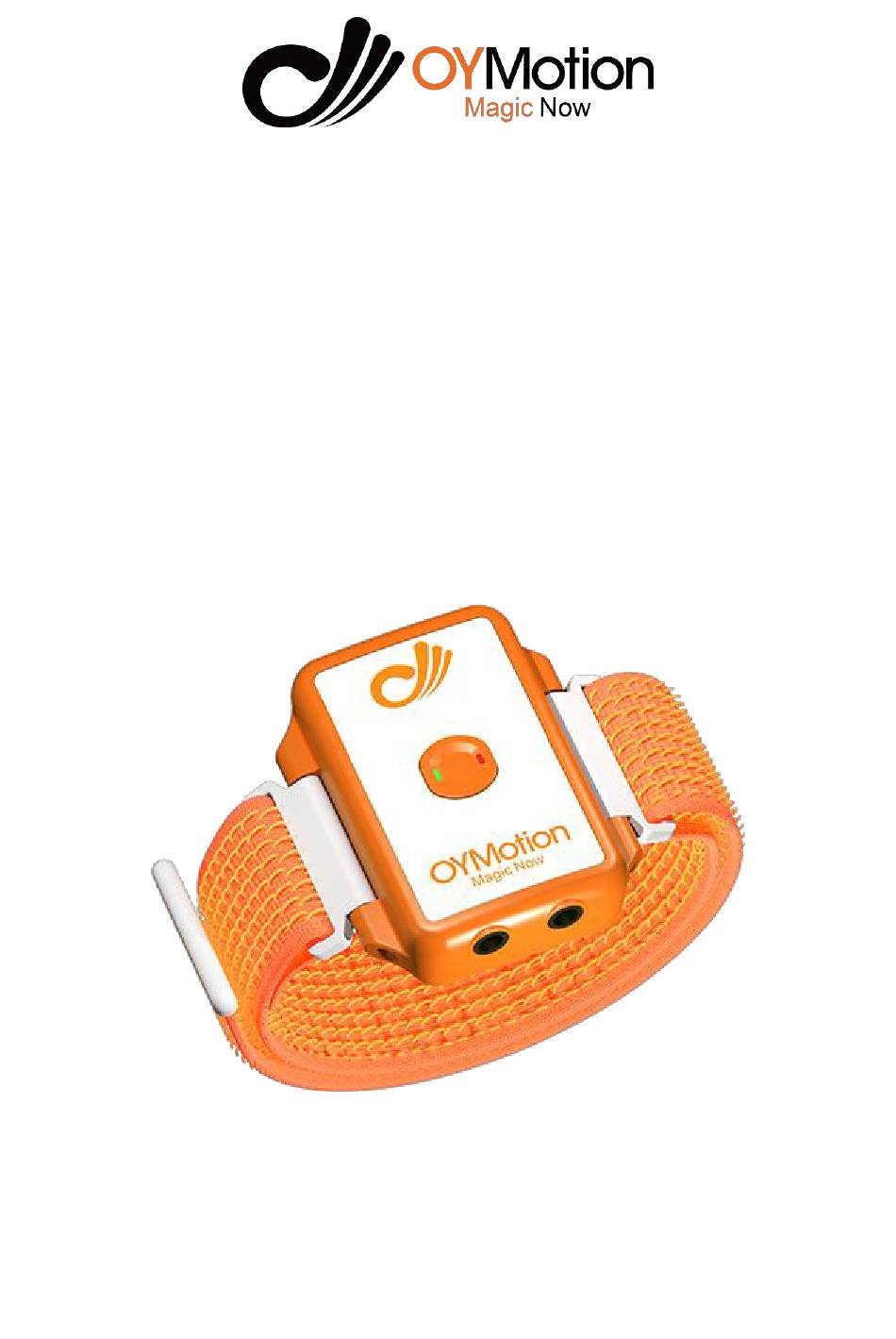

- Page 1 Muscle Strength Training Device User Manual OYMotion Technologies Co., Ltd. www.oymotion.tech...
-
Page 2: Table Of Contents
Table of contents 1. Preface ........................................ 1 2. Product Description ..................................1 3. Applicable Model .....................................1 4. Model Difference .....................................1 5. Scope of Application ..................................2 6. Products and packaging ..................................2 7. Product Components ..................................3 8. Product Connection Method................................. 5 9. Product Instructions ..................................6 10. -
Page 3: Preface
gForceDuo Muscle Strength Training Device User Manual 1. Preface Dear user, thank you for purchasing OYMotion gForceDuo Muscle Strength Training Device products. In order to further understand the product, please read this manual carefully before use. Have a great experience! 2. -
Page 4: Scope Of Application
Copyright © OYMotion Technologies Co., Ltd. 5. Scope of Application This product is suitable for users with upper limb dysfunction caused by cerebrovascular accidents, brain trauma or other neurological diseases, as well as users who need to restore upper limb function after surgery. -
Page 5: Product Components
gForceDuo Muscle Strength Training Device User Manual 7. Product Components 7.1. gForceDuo Muscle Strength Training Device 7.1.1. a 1-Green status indicator light 5-Myoelectric sensor channel 2 9-electrode 2-Red charging indicator light 6-Velcro strap 10-Disposable electrode 3-Multi-function button 7-USB charging port sheets 4-Myoelectric sensor channel 1 8-Myoelectric wire connector... - Page 6 Front (glue side) Back side (electrode buckle side) 7.3. Supporting training game APP The training game APP independently developed by Shanghai OYMotion Technologies Co., Ltd. can be installed directly on Android phones , tablets or smart TVs. gForceDuo communicates with the training game through Bluetooth . The games built into the training Game APP, through professional and interesting design, interact with users on the training process and provide real-time feedback to help users achieve early recovery.
-
Page 7: Product Connection Method
gForceDuo Muscle Strength Training Device User Manual Wearing gForceDuo, combined with the table tennis game in the gForceDuo intelligent muscle strength training system, follow the direction of the table tennis ball flying over the screen, with the elbow as the fulcrum, move the forearm to left or right. then drive the racket and hit the table tennis ball. -
Page 8: Product Instructions
Copyright © OYMotion Technologies Co., Ltd. 9. Product Instructions 9.1. Electrode pad usage : gForceDuo has 2 sets of EMG cables, each set has 3 wires, the colors are red, green and yellow. The red one is the reference level output line, and the adjacent green and yellow lines correspond to the left and right EMG differential pairs. -
Page 9: Product Specifications
gForceDuo Muscle Strength Training Device User Manual Product Specifications Main Indicators Parameter communication method Bluetooth low energy BLE4.2 Communication distance 10 meters (open space without barriers) Power consumption 0.13W Battery 160mAh/3.7V Power input Micro-USB 5V Vibration motor ... -
Page 10: Packing List
Copyright © OYMotion Technologies Co., Ltd. should not feel fatigue after training. 11.4. This product needs to be used with the OYMotion training Game APP, and is only suitable for smart TVs, smart tablets, and smartphones with Android systems . -
Page 11: Contact Us
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Contact us Name: OYMotion Technologies Co., Ltd. Address: Floor 6, Building 2, 222 Guangdan Road, Pudong, Shanghai PRC code : 201318... - Page 13 Follow the WeChat public account Get more information...
