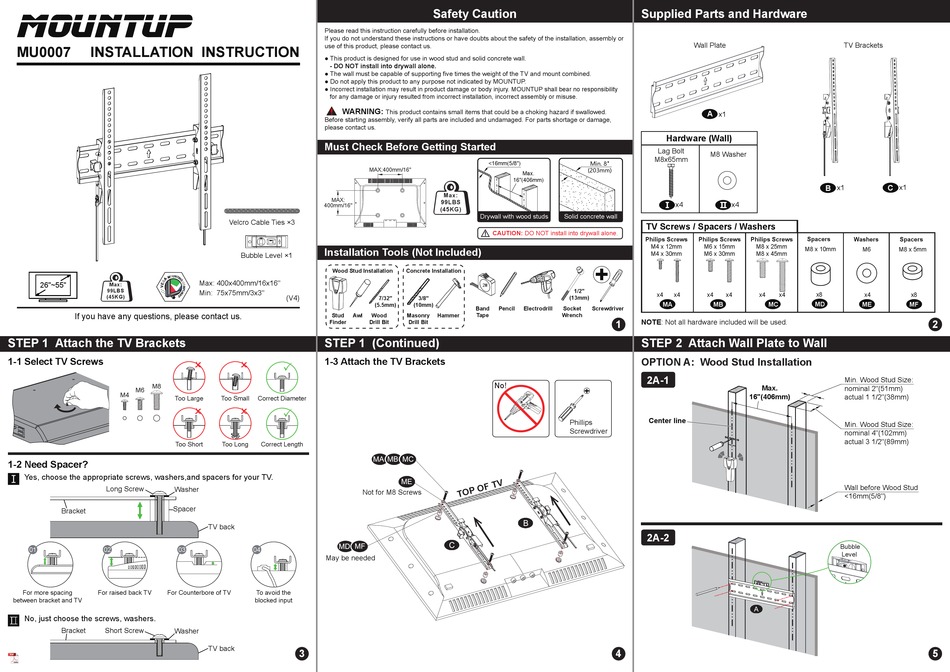

Mountup MU0007 Installation Instruction

MU0007 INSTALLATION INSTRUCTION
26"~55"
Max:
99LBS
(45KG)
If you have any questions, please contact us.
STEP 1 Attach the TV Brackets
1-1 Select TV Screws
M8
M6
M4
Too Large
Too Short
1-2 Need Spacer?
Yes, choose the appropriate screws, washers,and spacers for your TV.
Long Screw
Washer
Bracket
Spacer
01 02 03
For more spacing For raised back TV For Counterbore of TV
between bracket and TV
No, just choose the screws, washers.
Bracket Short Screw
Washer
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or
use of this product, please contact us.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount combined.
● Do not apply this product to any purpose not indicated by MOUNTUP.
● Incorrect installation may result in product damage or body injury. MOUNTUP shall bear no responsibility
for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
WARNING:
Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage,
please contact us.
Must Check Before Getting Started
MAX:400mm/16"
MAX:
400mm/16"
Velcro Cable Ties ×3
Installation Tools (Not Included)
Bubble Level ×1
Wood Stud Installation
Max: 400x400mm/16x16"
Min: 75x75mm/3x3"
(V4)
Stud Awl Wood
Finder Drill Bit
STEP 1 (Continued)
1-3 Attach the TV Brackets
 

Too Small Correct Diameter
 

Too Long Correct Length
Not for M8 Screws
TV back
04
May be needed
To avoid the
blocked input
TV back
3
Safety Caution
This product contains small items that could be a choking hazard if swallowed.
<16mm(5/8")
Max.
16"(406mm)
Max:
99LBS
(45KG)
Drywall with wood studs
CAUTION: DO NOT install into drywall alone.
Concrete Installation
2M
7/32" 3/8"
(5.5mm) (10mm)
Band Pencil Electrodrill
Masonry Hammer Tape
Drill Bit
No!
Supplied Parts and Hardware
Wall Plate
x1
A
Hardware (Wall)
Lag Bolt
M8 Washer
M8x65mm
Min. 8"
(203mm)
Ⅰ x4 Ⅱ x4
Solid concrete wall
TV Screws / Spacers / Washers
Philips Screws Philips Screws
M4 x 12mm M6 x 15mm
M4 x 30mm M6 x 30mm
1/2"
x4 x4 x4 x4
(13mm)
MA MB
Socket Screwdriver
Wrench
NOTE: Not all hardware included will be used.
1
STEP 2 Attach Wall Plate to Wall
OPTION A: Wood Stud Installation
2A-1
Center line
Phillips
Screwdriver
2A-2
4
TV Brackets
x1 x1
C
B
Spacers
Philips Screws Washers Spacers
M8 x 25mm
M8 x 10mm
M6 M8 x 5mm
M8 x 45mm
x4 x4 x8 x4 x8
MD
MC ME MF
Min. Wood Stud Size:
nominal 2"(51mm)
Max.
actual 1 1/2"(38mm)
16"(406mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Wall before Wood Stud
<16mm(5/8")
Bubble
Level
2
5
