- Page 1 Equipment Manual STEP CHAIR Review January 10, 2020...
- Page 2 PLEASE READ IT CAREFULLY BEFORE STARTING INSTALLATION AND OPERATION. PRESERVE AND KEEP IT FOR FUTURE CONSULTATIONS. Equipment Manual STEP CHAIR Throughout this manual, this symbol on the left will indicate extremely. important information that must be read, understood and strictly followed.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product presentation ............4 Technical specifications ............. 5 Packaging content .............. 6 Installation manual ............7 Components ............... 8 Preparation for assembly ..........9 Detailed assembly .............. 10 User manual ............... 12 Uses and settings ............... 12 Maintenance and Safety ........... -
Page 4: Product Presentation

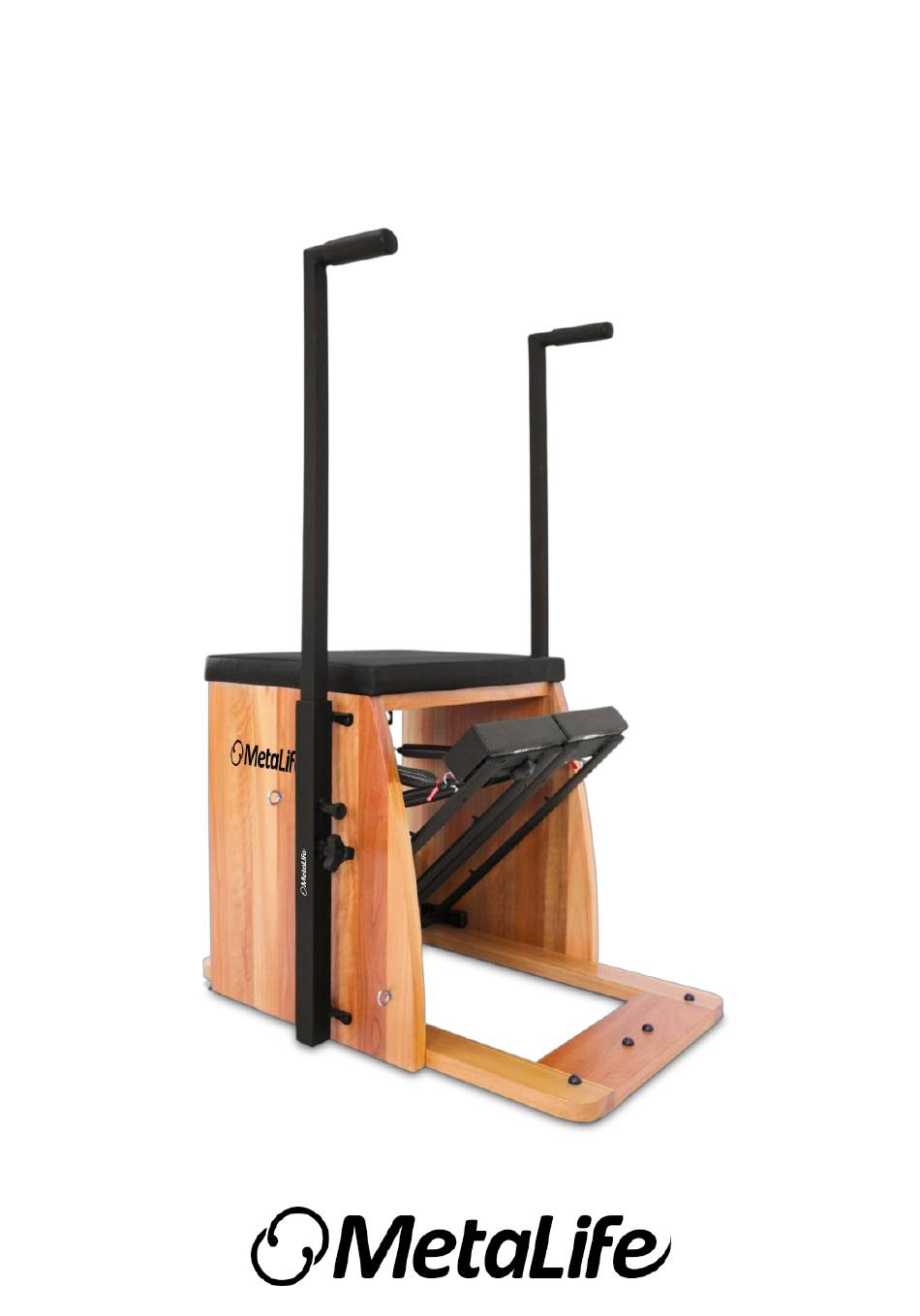

Compact and easy to handle, the Step Chair is perfect for studios and gyms with limited space. Mainly applied in leg and trunk exercises, the Step Chair is also versatile for training other muscle groups. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS DIMENSION STEP CHAIR 0.62m 0.88m 0.67m 1.44m 40 KG 140 KG Note: The weight of the MAXIMUM equipment may change due to WEIGHT the density variation of the raw SUPPORTED material used in its manufacture. -
Page 6: Packaging Content
PACKAGING CONTENT CONTENT STEP CHAIR SET STEP CHAIR CANE SET (2X) STEP CHAIR MANUAL KIT FLAT WASHER ZB 1.9x7x17mm (1/4) (4x) INT HEX SCREW CH ZP 1/4x1 (4x) INT HEX SCREW CL ZP 1/4x1.1/2 (4X) SHORT HEXAGONAL ALLEN KEY 5/32... -
Page 7: Installation Manual
INSTALLATION MANUAL For your convenience, Metalife has a Network of Authorized Technicians qualified to install your equipment. An installation fee will be charged for this service, which does not include site repair. Any type of modification to the environment is the sole responsibility of the client. -
Page 8: Components
COMPONENTS CONTENT UPHOLSIVE SEAT SC / BC PEDAL UPHOLSTERY 2 SC PEDAL UPHOLSTERY 1 SC SC 201 2 CANE SET INT HEX SCREW CL ZP 1/4x1.1/2 FLAT WASHER ZB 1.9x7x17mm (1/4) INT HEX SCREW CH ZP 1/4x1 RED SPRING 3.5x29.5x425mm BLUE SPRING 2.7x29.5x400mm SC SET SHORT HEXAGONAL ALLEN KEY 3/16... -
Page 9: Preparation For Assembly
PREPARATION FOR ASSEMBLY The Step Chair must be installed and used in an environment conducive to Pilates practice. The following characteristics must be respected in the equipment installation area: • Proper leveling and floor stability; • Low humidity; • Protection against sunlight. -
Page 10: Detailed Assembly
DETAILED ASSEMBLY ASSEMBLING THE UPHOLSTERY Align the seat upholstery with the wooden structure, so the holes match. Secure it using the INT HEX SCREW CL ZP 1/4x1.1/2 and FLAT WASHER ZB 1.9x7x17mm (1/4). Tighten up with the SHORT HEXAGONAL ALLEN WRENCH 3/16. DO NOT OVERTIGHTEN. - Page 11 FITTING OF CANES Before attaching the canes, unscrew the threaded knob and pull the retractable knob so that the cane can freely enter the bracket. The canes must be fitted to the cane holders with the handles facing the pedals. Release the retractable handle until it snaps into one of the cane adjustments.
-
Page 12: User Manual
USER MANUAL USES AND SETTINGS LOCKING THE PEDALS The Step Chair features pedals with independent movements, which can be locked to act as a single motion base. To attach or detach the pedals, use the lock on the bottom of the pedal upholstery. - Page 13 SUBJECT TO VARIATIONS IN STRENGTH AND DIMENSIONS. THE STEP CHAIR COMES EQUIPPED WITH A PAIR OF RED (VERY STRONG) AND BLUE (STRONG) SPRINGS. THE SPRINGS CAN BE IDENTIFIED BY THE SEALS WITH COLORS. IN ADDITION TO IDENTIFYING IT, THE SEAL...
- Page 14 SPRINGS IN THE EYEBOLTS (NOT INCLUDED) The side eyebolts of the Step Chair are intended for use with Yellow springs (Very Weak) and hand handles (item not included). It is necessary to remove the canes to use the side eyebolts. To attach the...
- Page 15 CANES The canes have 6 (six) height adjustments. There are two knobs that adjust the canes. Loosen the threaded knob, pull the retractable knob and slide the cane until you find the hole of the desired height. THE MEETING OF THE RETRACTABLE KNOB WITH ONE OF THE HOLES WILL CAUSE IT TO PARTIALLY FIT.
-
Page 16: Maintenance And Safety
IRREVERSIBLY. THE WOOD SURFACES ARE DELICATE; CONTACT TECHNICAL ASSISTANCE ON 0800 056 2467, THEY ACCEPT CLEANING WITH DRY FLANNEL OR CLOTH OR BY EMAIL ASSISTENCIA@METALIFE.COM.BR. WE MOISTENED IN SOLUTION OF NEUTRAL SOAP AND WILL BE AT YOUR DISPOSAL FOR ANY CLARIFICATIONS. - Page 17 KNOCKS, WHICH DAMAGE THE SURFACE FINISH, OF ITS COMPONENTS. LEAVING THE METAL APPARENT AND SUSCEPTIBLE TO METALIFE ASSUMES NO LIABILITY UNDER ANY FORM OF OXIDATION. NEVER USE ABRASIVE MATERIALS SUCH AS IMPROPER USE OF THE EQUIPMENT. ENSURE THAT IT IS...
- Page 18 BE USED UNTIL IT IS PROPERLY REPAIRED OR REPLACED REPLACE THEM ONLY WITH PARTS SUPPLIED BY WITH A NEW ONE; METALIFE, ENSURING THEIR SAFETY AND DURABILITY. - MAKE SURE THAT SPRING TENSIONING STILL CORRESPONDS TO ITS USE. IF VARIATIONS IN SPRINGS...
-
Page 19: Warranty Term
Your Metalife Pilates product is warranted against manufacturing defects that have been duly verified by Metalife Ind. e Com. de Móveis Ltda., or by its authorized technical assistance network, during the legal term of 03 (three) months, counted from the date of the invoice, with Metalife granting 21 (twenty-one) months... - Page 20 - Travel to service products that are installed outside the headquarters of the Metalife technical assistance center, which may charge a technician’s travel fee, previously approved by the client, according to the mileage table used by Metalife Ind. e Com. de Móveis Ltda. and disclosed through the authorized Metalife Technical Assistance service;...
- Page 21 Metalife Indústria e Comércio de Móveis Ltda Rodovia BR 280, 2.147 - Galpão 1 Rio Negrinho - SC CEP 89295-000 www.metalifepilates.com.br...
