- Page 1 Equipment Manual REFORMER TOWER Review January 10, 2020...
- Page 2 PLEASE READ IT CAREFULLY BEFORE STARTING INSTALLATION AND OPERATION. PRESERVE AND KEEP IT FOR FUTURE CONSULTATIONS. Equipment manual REFORMER TOWER Throughout this manual, this symbol on the left will indicate extremely important information that must be read, understood and strictly followed.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product presentation ............4 Technical specifications ............5 Packaging content ..............6 Installation manual ............... 8 Components ................8 Preparation for assembly ............ 10 Detailed assembly ............... 11 User manual ................ 13 Preparing the Reformer for use with the Tower ....13 Uses and settings .............. -
Page 4: Product Presentation

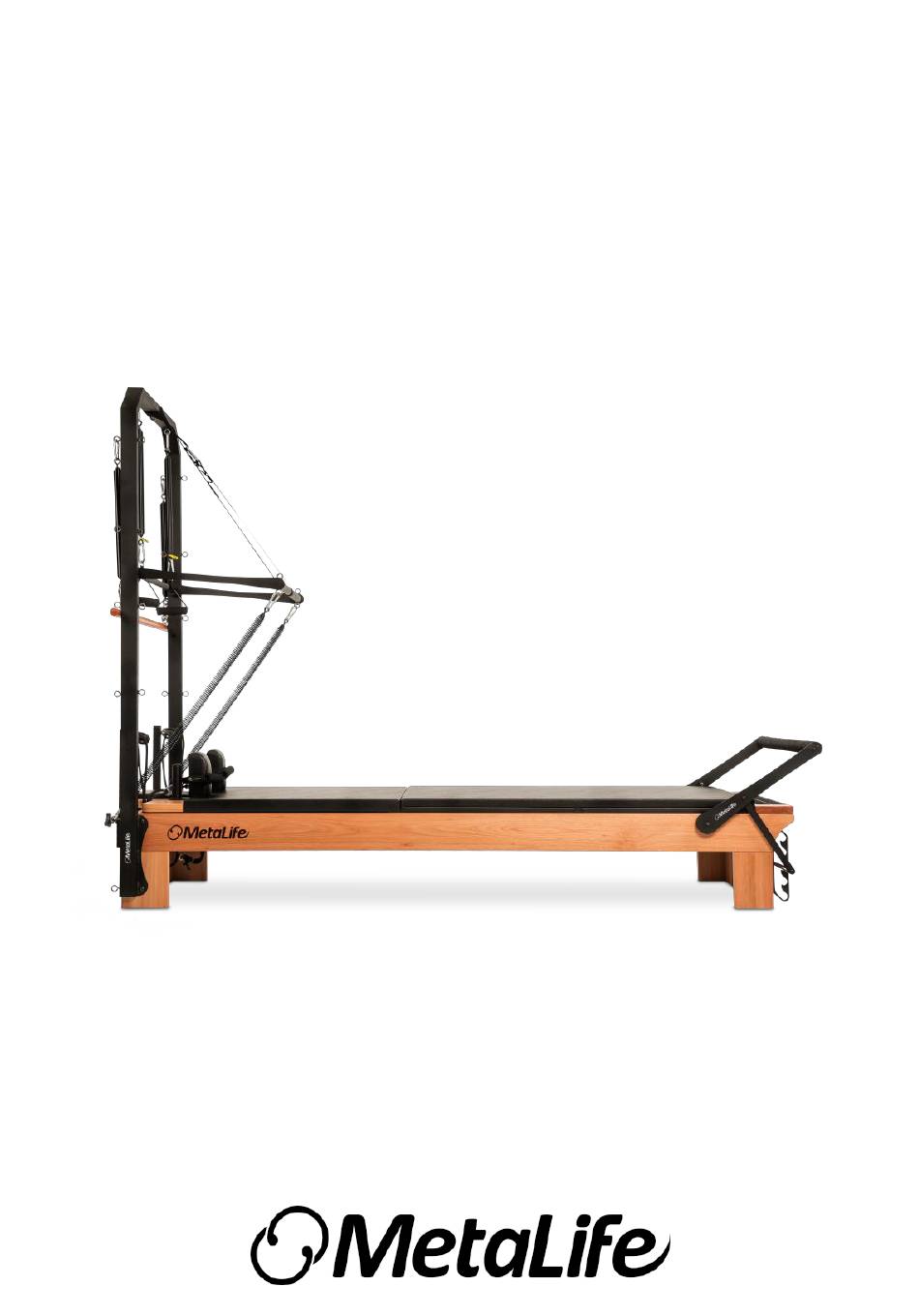

It also has 21 eyes for adjusting the springs and three points for height adjustment of the Support Bar. The Reformer Tower comprises two pieces of equipment traditionally used in Pilates classes: the classic Reformer and the Wall Unit. According to Letícia Toledo, technical coordinator at Pilates StudioFit, the novelty focuses mainly on the body's natural movements, obtaining significant benefits in a regular practice. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS REFORMER DIMENSION HIGH REFORMER TOWER TOWER 1.96m 2.18m 0.82m 0.82m 25 KG Note: The weight of the equipment may change due to the density variation of the raw material used in its manufacture. -
Page 6: Packaging Content
PACKAGING CONTENT CONTENT TR STRUCTURE SET TR / CD / WU GRAB BAR FRAME SET TR RF PACKAGING TR RF MANUAL KIT ROLL-DOWN BAR... - Page 7 CONTENT SHORT HEXAGONAL ALLEN KEY 7/32 INT HEX SCREW PN ZP 3/8X3/4 (8X) THIGH-FOOT HANDLE (2x) SAFETY STRAP (1X) BLACK SPRING (2X) YELLOW SPRING (2X) WHITE SPRING (2X) BLUE SPRING (2X) SAFETY CLIP SINGLE LOCK CARABINER 8X80MM (17X)
-
Page 8: Installation Manual
INSTALLATION MANUAL For your convenience, Metalife has a network of authorized and qualified technicians to install your equipment. An installation fee will be charged for this service, which does not include site repair. Any type of modification to the environment is the sole responsibility of the client. - Page 9 COMPONENTS CONTENT TR STRUCTURE SET TR / CD / WU GRAB BAR FRAME SET INT HEX SCREW PN ZP 3/8X3/4 SHORT HEXAGONAL ALLEN KEY 7/32...
-
Page 10: Preparation For Assembly
PREPARATION FOR ASSEMBLY The Reformer Tower must be installed and used in an environment conducive to Pilates practice. The following characteristics must be respected in the equipment installation area: • Proper leveling and floor stability; • Low humidity; • Protection against sunlight. -
Page 11: Detailed Assembly
DETAILED ASSEMBLY Removal of the Support Bar Frame It will be necessary that the Support Bar Set is separate from the TR Structure Set for installation. Therefore, tighten the Support Bar Frame causing the pins to come out of the tower, thus releasing the Support Bar Frame Set. - Page 12 Fixing the Tower Fit the INT HEX SCREWS PN ZP 3/8X3/4 as indicated, 7/32 SHORT HEXAGONAL ALLEN WRENCH to fasten them. Installation of the Support Bar Place the Support Bar back on the Tower, inserting the movable Support Bar pin, pushing at the desired height, place the pin inside and push it to retract to the point where you can align the fixed pin...
-
Page 13: User Manual
USER MANUAL Preparing the Reformer for use with the Tower Use in Reformer mode Tower together with Reformer allows you to combine the Reformer and Wall Unit exercises. In this case, make the adjustments in the Reformer's carriage (springs and stopper) and check if there is a need to use the ropes. -
Page 14: Uses And Settings
Support Bar The Support Bar has 3 (three) height settings, which can be adjusted according to the size of the person or the type of exercise. To adjust, just fasten in the direction indicated in the figure, until the pins are released from the metallic structure, position the bar at the new desired height and secure the Grab Bar with... - Page 15 Safety Strap To use the safety strap, thread one ring through the other around the top beam of the tower, then pull to tighten up. The end of the strap closest to the links must be on the beam. At the end that is free, a carabiner must be hooked and it must go through the Grab Bar and fasten it to one of the adjustment straps that the safety strap has,...
- Page 16 Springs The Tower comes equipped with a pair of blue (strong), white (medium), black (weak) and yellow (very weak) springs. The springs can be identified by the seals with colors. In addition to identifying it, the seal contains the spring's serial number, so it must not be removed, otherwise the warranty will be forfeited.
-
Page 17: Maintenance And Safety
IRREVERSIBLY. THE WOOD SURFACES ARE DELICATE; CONTACT TECHNICAL ASSISTANCE ON 0800 056 2467, THEY ACCEPT CLEANING WITH DRY FLANNEL OR CLOTH OR BY EMAIL ASSISTENCIA@METALIFE.COM.BR. WE MOISTENED IN SOLUTION OF NEUTRAL SOAP AND WILL BE AT YOUR DISPOSAL FOR ANY CLARIFICATIONS. - Page 18 METALIFE DURING MAINTENANCE AND REPLACEMENT KNOCKS, WHICH DAMAGE THE SURFACE FINISH, OF ITS COMPONENTS. LEAVING THE METAL APPARENT AND SUSCEPTIBLE TO METALIFE ASSUMES NO LIABILITY UNDER ANY FORM OXIDATION. NEVER USE ABRASIVE MATERIALS SUCH AS OF IMPROPER USE OF THE EQUIPMENT. ENSURE THAT STEEL...
- Page 19 ANY FAULTY COMPONENT SHOULD NOT BE USED UNTIL REPLACE THEM ONLY WITH PARTS SUPPLIED BY IT IS PROPERLY REPAIRED OR REPLACED WITH A NEW METALIFE, ENSURING THEIR SAFETY AND DURABILITY. ONE; - MAKE SURE THAT SPRING TENSIONING STILL CORRESPONDS TO ITS USE. IF VARIATIONS IN SPRINGS...
-
Page 20: Warranty Term
- Expenses arising and resulting from the installation of parts and accessories that do not belong to the product, even those sold by Metalife Ind. e Com. de Móveis Ltda., except for those specified for each model in the Equipment Manual;... - Page 21 General considerations: - Metalife does not authorize any person or entity to assume, on its behalf, any other liability related to the warranty of its products, other than those set forth herein;...
- Page 22 Metalife Indústria e Comércio de Móveis Ltda Rodovia BR 280, 2.147 - Galpão 1 Rio Negrinho - SC CEP 89295-000 www.metalifepilates.com.br...
