Summary of Contents for Poollock V5A
- Page 1 HORT NSTALLATION ANUAL Safety covers since 1975...

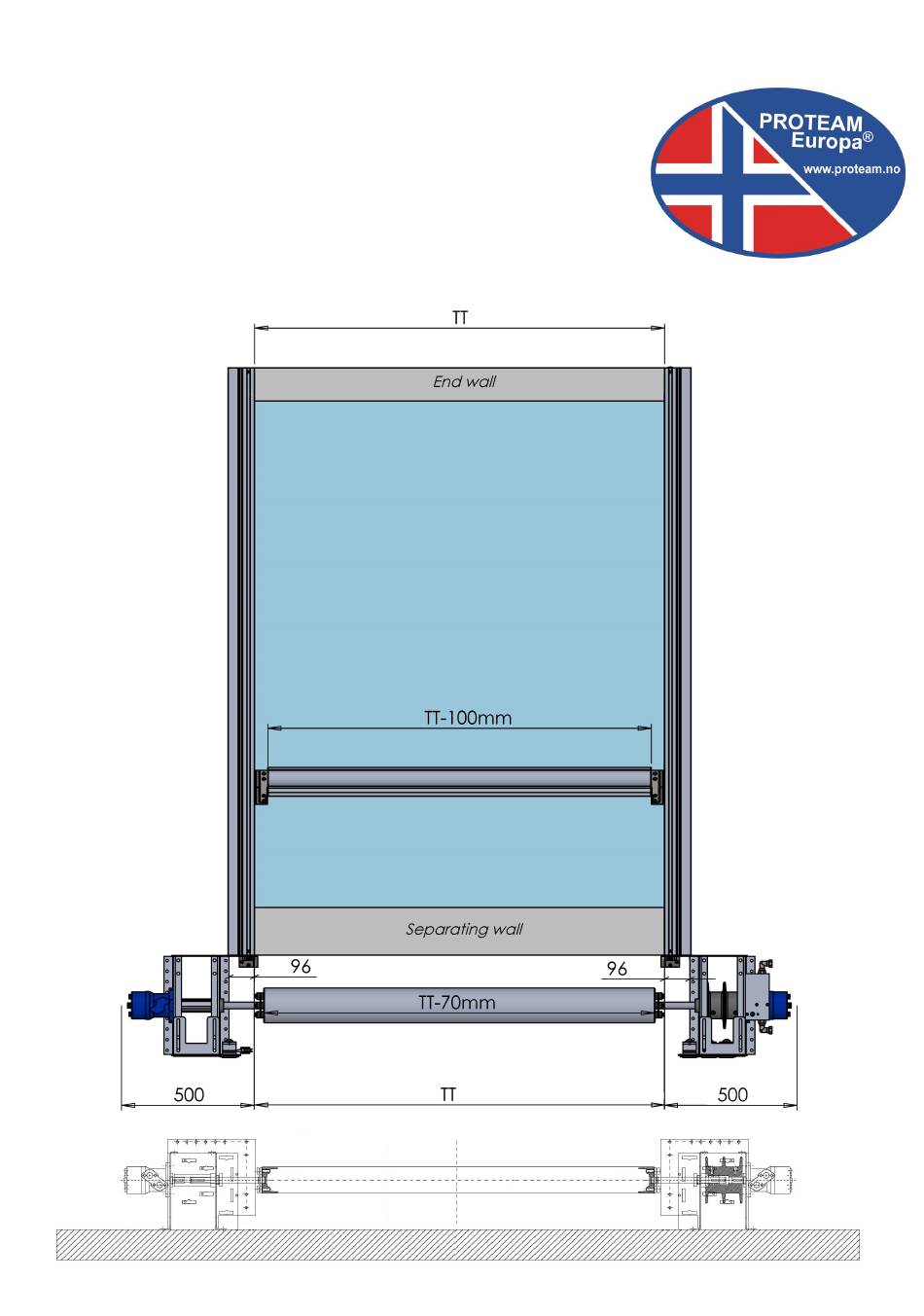

- Page 2 Pocket end pulley (hidden inside TT (Track to track) Pocket track) End wall Pocket profile (TL+125mm) Under track (inside Pocket profile) is mounted PVC Locking insert Glider -grey: 2x65=130mm -white: 2x40=80mm Leading Bar (TT-100mm) Movable 20mm Leading bar endcap Glider bracket Guide Separating wall Roll-up Tube incl.
- Page 3 1. Before installation & Pocket profile installation Measure the pool, and diagonal, and pit. Verify that it is according to the order. TL (Track length) = 20mm + separating wall + pool length + 25mm Pocket profile length = TL + 125mm Install Pocket profile flush with inner pit wall.
- Page 4 DETAIL Pocket profile 10 Under track Pocket profile 0 Pocket end pulley plug Liner lock profile PVC Locking insert Pocket end pulley plug alternative Pocket end pulley This thicker side down! DETAIL Leading bar end cap Glider bracket Glider Pocket track DETAIL DETAIL Separating wall...
- Page 5 GUIDES + UNDER TRACK PROFILE + END PULLEYS POCKET PROFILE 0 ROLLUP TUBE ENDCAP & LEADING BAR ENDCAPS + LEADING BAR + GLIDER BRACKET EQUALIZER ROLLUP TUBE Rubber pad M8x40 HOSES 3/8`` 3.5x16 4.8x19 5.5x60 8x40 POWER PACK V5A MECHANISM...
