HARTLAND 280 / 390
OPBOUWINSTRUCTIE • PITCHING INSTRUCTION • AUFBAUANLEITUNG

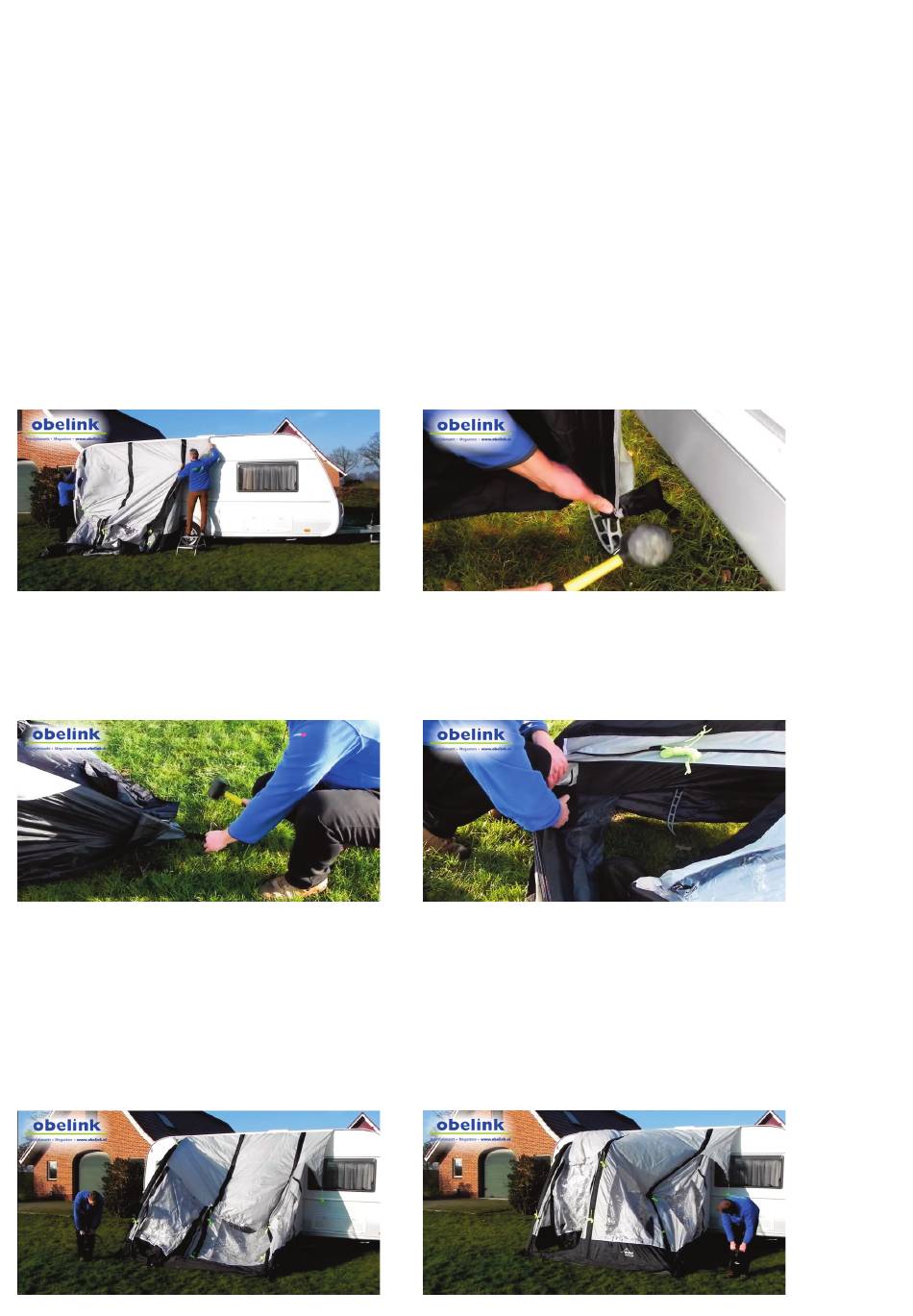

1. Haal de tent uit de verpakking.
Schuif de tochtstrook en de wielflap in de daarvoor bestemde rail aan de onderkant van de caravan.
De tochtstrook kan als referentie gebruikt worden voor de tent.
Take the tent out of the bag. Slide the draft skirt and wheel cover in the rail that can be found at the bottom
side of the caravan. The draft skirt can be uses as reference for placing the awning at the right place.
2. Schuif de pees die aan de achterkant van het tentdoek zit door de caravan rail totdat de voortent op de
juiste plaats zit.
Slide the kador at the back of the awning through the caravan rail untill the awning is on the right place.
3. Zet de schuimranden aan de achterkant vast met haringen. Zorg ervoor dat de schuimranden haaks
met de ondergrond staan en tegen de caravanwand gedrukt worden.
Peg out the foam padding at the rear. Make sure that the foam padding makes a 90 degree angle with the
ground. Also make sure that the foam padding is placed against the wall of the caravan.
4. Zet nu de rest van de achterkant vast met haringen.

Peg out the remaining pegging points at the rear of the awning.

5. Trek de tent nu naar voren en zet de hoeken aan de voorzijde van de tent vast. Zorg ervoor dat
deze goed strak worden vastgezet in lijn met de hoeken aan de achterkant.
Pull the awning forwards and peg out the corners at the front. Make sure that the corners are pegged
out as tight as possible and aligned with the corners at the back.
2.
5.
6.
3.
6.
6.
