Summary of Contents for Thinuna TA-80D II

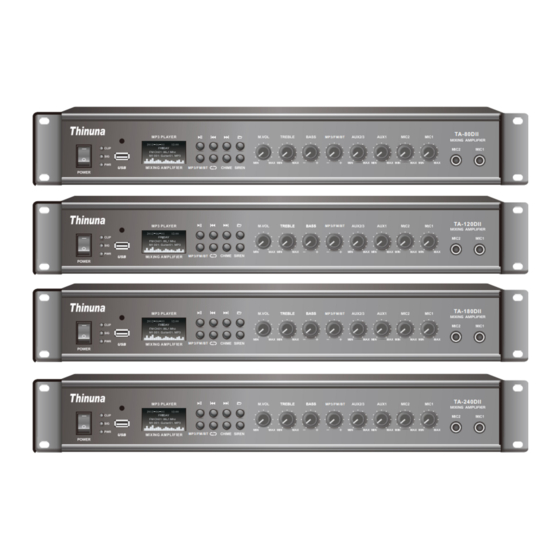

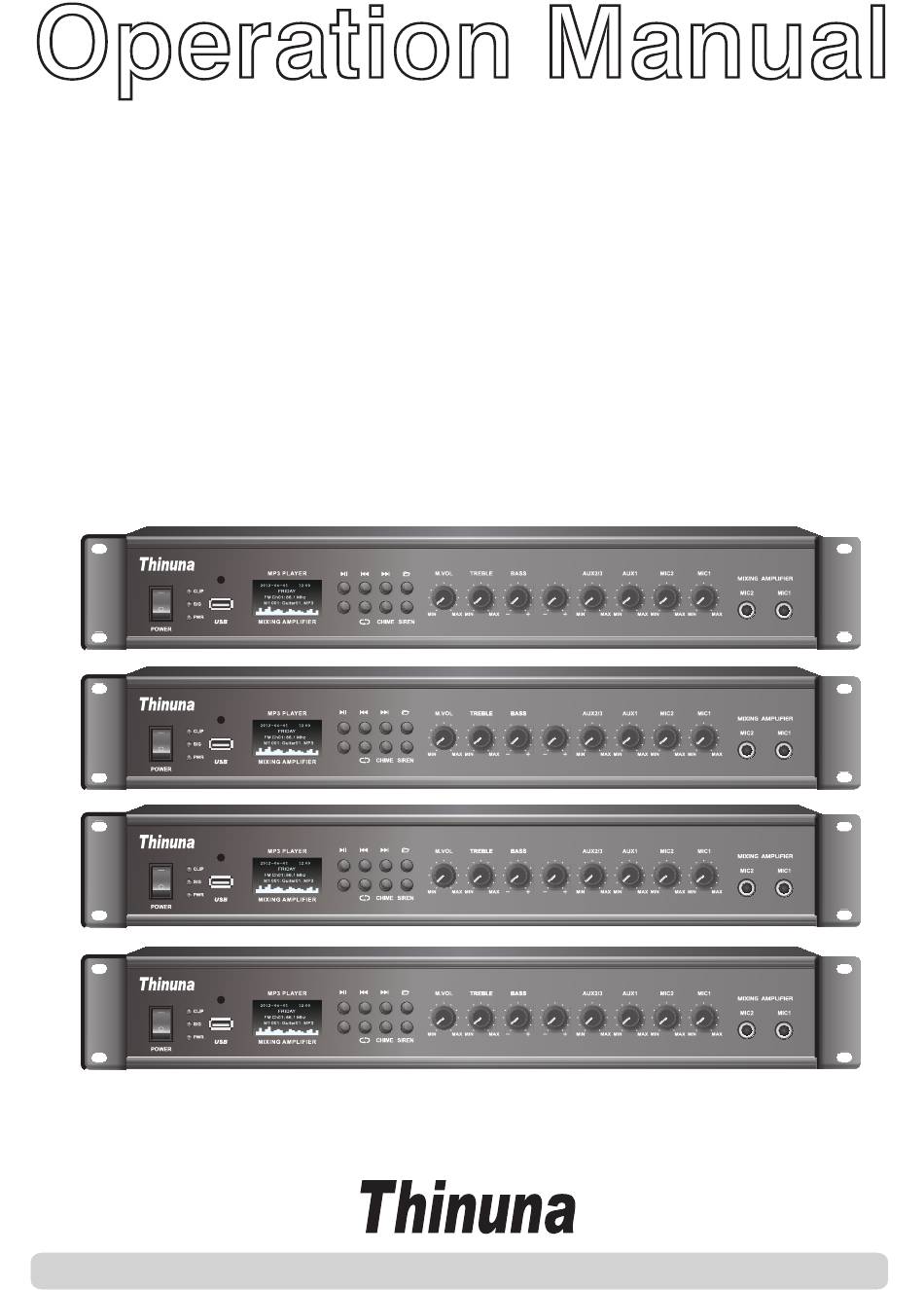

- Page 1 TA-80D II TA-120D II TA-180D II TA-240D II MP3/Tuner/BT Mixer Power Amplifier TA-80DII TA-80DII MP3/FM/BT MP3/FM/ MP3/FM/BT MP3/FM/ TA-120DII TA-120DII MP3/FM/BT MP3/FM/BT TA-180DII TA-180DII MP3/FM/BT MP3/FM/BT TA-180DII TA-240DII MP3/FM/BT MP3/FM/BT www.thinuna.com Version A...
-
Page 2: Table Of Contents
MP3/Tuner/BT Mixer Power Amplifier Contents Welcome....................................1 Warning....................................1 Installation Environment..............................2 Important Safety Instructions............................2 Features....................................3 Accessories...................................3 Operation....................................3 Front Panel..................................4 Rear Panel..................................5 IR Remote Controller and Quick Installation Guide.....................6 Specifications..................................7 Common Faults And Solutions............................8 Service....................................9... -
Page 3: Welcome
We are sincerely trust these products will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. Welcome to thinuna again, and thank you for becoming part of our worldwide extended family! Warning... -
Page 4: Installation Environment
Strong physical shocks to the unit may cause damage. Handle the unit with care. - Do not open the case or attempt repairs or modifications yourself This product contains no user-serviceable parts. Refer all maintenance to qualified Thinuna service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. -
Page 5: Features
MP3/Tuner/BT Mixer Power Amplifier Features: * Built-in MP3 player, support MP3 and WMA format, USB flash disk input port; * Built-in FM tuner； * With BT wireless audio function； * Built-in Chime and Siren； * 3 Aux, 2 Mic input and 1 Aux output; * Mic 1 input has priority (Mute other audio input);... -
Page 6: Front Panel
MP3/Tuner/BT Mixer Power Amplifier Front Panel TA-180DII TA-240DII MP3/FM/BT MP3/FM/BT In MP3 mode, press to prev music; 1. POWER SWITCH In FM Mode, press to prev station; and pressing for 3 seconds scan to prev station. 2. CLIP LED The LED indicate that you need to turn down the In MP3 mode, press to next music;... -
Page 7: Rear Panel
MP3/Tuner/BT Mixer Power Amplifier Rear Panel AUX1 AUX2 AUX3 FM ANTENA 8Ω 100V TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DON’T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 1. FM ANTENNA TERMINALS 9. -
Page 8: Ir Remote Controller And Quick Installation Guide
MP3/Tuner/BT Mixer Power Amplifier IR Remote Controller and Quick Installation Guide FM Tuner/MP3/BT player switcher Power switch Menu Previous music, Previous station, Play/Pause, FM auto scan manual scan to Previous station Next music, next station, manual scan to next station Stop Volume control Number... -
Page 9: Specifications
MP3/Tuner/BT Mixer Power Amplifier Specifications Model No. TA-80D II TA-120D II TA-180D II TA-240D II Rated Power 120W 180W 240W Mic Input -60dB, 600Ω, unbalanced, 6.3mm TS port Aux Input -20dB, 10kΩ, unbalanced, Stereo RCA port Aux Output 0dB, 600Ω, unbalanced, Stereo RCA port Speaker Output High Impendence: 100V, 70V;... -
Page 10: Common Faults And Solutions
Turn the power on. power Protected Check other problems which may cause activation protected. If still has problem, please contact B: other problems Thinuna directly or the authorized Distributor for your specific country or region. Page 8... -
Page 11: Service
first by locating the appropriate country which the product was purchased in, then by locating the product type. To obtain specific warranty information and available service locations contact Thinuna directly or the authorized Thinuna Distributor for your specific country or region. - Page 12 Notice: Thinuna Technology makes every effort to ensure the accuracy of information on this manual. The documents, graphics, and other information included in this manual may include technical inaccuracies, typographical, or other errors. Specifications are subject to change without notice.
