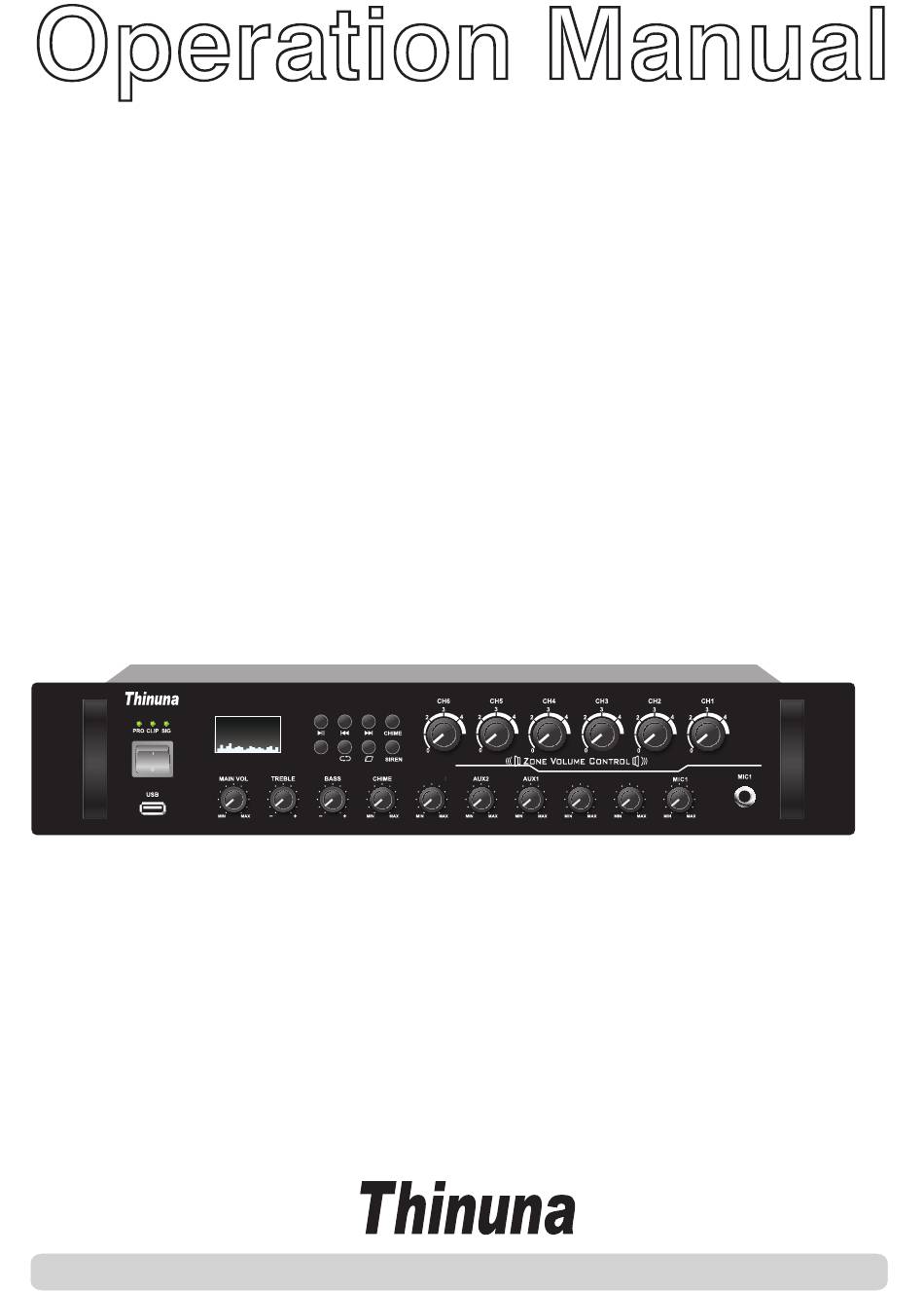

- Page 1 VTA-240F II VTA-360F II VTA-480F II VTA-600F II 6 zones MP3/Tuner/BT Mixer Amplifier With Volume Control VTA-600F II MIXER POWER AMPLIFIER 2012-06-16 12:00 FRIDAY FM CH01: 86.1 MHZ M1 001: SONG001. MP3 MP3/FM/BT MP3/FM/BT MIC3 MIC2 www.thinuna.com Version A...
-
Page 2: Table Of Contents
VTA-240F/360F/480F/600F II 6 Zones MP3/Tuner/BT Mixer Amplifier Contents Welcome................................... 1 Warning................................1 Installation Environment..............................2 Important Safety Instructions............................2 Features....................................3 Accessories..............................3 Operation..............................3 Front Panel..................................4 Rear Panel..................................5 Quick Installation Guide..............................6 Specifications..................................7 Common Faults And Solutions............................8 Service...................................9 www.thinuna.com Version A... -
Page 3: Welcome
We are sincerely trust these products will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. Welcome to thinuna again, and thank you for becoming part of our worldwide extended family! Warning... -
Page 4: Installation Environment
Strong physical shocks to the unit may cause damage. Handle the unit with care. - Do not open the case or attempt repairs or modifications yourself This product contains no user-serviceable parts. Refer all maintenance to qualified Thinuna service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. -
Page 5: Features
Keep volume levels turned down before switching on. NOTE: The system’s operation is delayed by approximately three seconds after pressing the power switch. This is due to the built-in protection circuitry, designed to protect speakers and other system components. www.thinuna.com Page 3 Version A... -
Page 6: Front Panel
Please check the Input 25. “CHIME” BUTTON (Controlled by "CHIME” and and Output condition of the amplifier. “M.VOL” knobs) 26. ZONE1~6 OUTPUT VOLUME CONTROL Control the volume of zone1~6 speakers here. www.thinuna.com Page 4 Version A... -
Page 7: Rear Panel
Connect “8Ω" to the "+" of 8ohms speaker. to prevent the unit from overheating. It is also important to operate the unit in a dust-free environment. 9. 8Ω SPEAKER OUTPUT TERMINAL Connect “GND” to the "-" of 8ohms speaker. www.thinuna.com Page 5 Version A... -
Page 8: Quick Installation Guide
Turn the Aux volume control knob to get the suitable level. 5. Paging with microphone Connect microphone to the Mic input port. b. Turn the Mic volume control knob to get the suitable. www.thinuna.com Page 6 Version A... -
Page 9: Specifications
VTA-240F/360F/480F/600F II 6 Zones MP3/Tuner/BT Mixer Amplifier Specifications Model No. VTA-240F II VTA-360F II VTA-480F II VTA-600F II Rated Power 240W 360W 480W 600W Mic Input -60dB, 600Ω, unbalanced, 6.3mm TS port Aux Input -20dB, 10k Ω, unbalanced, Stereo RCA port Aux Output 0dB, 600Ω, unbalanced, Stereo RCA port... -
Page 10: Common Faults And Solutions
Turn the power on. power Protected Check other problems which may cause activation protected. If still has problem, please contact B: other problems Thinuna directly or the authorized distributor for your specific country or region. www.thinuna.com Page 8 Version A... -
Page 11: Service
To obtain specific warranty information and available service locations contact Thinuna directly or the authorized Thinuna distributor for your specific country or region. - Page 12 Notice: Thinuna Technology makes every effort to ensure the accuracy of information on this manual. The documents, graphics, and other information included in this manual may include technical inaccuracies, typographical, or other errors. Specifications are subject to change without notice.
