Summary of Contents for Thinuna PP-6281A
- Page 1 PP-6281A Mixer / Pre-amplifier www.thinuna.com Version A...
-
Page 2: Table Of Contents
PP-6281A Mixer / Pre-amplifier Contens Welcome................................... 1 Warning................................1 Installation Environment..............................2 Important Safety Instructions............................2 Features....................................3 Accessories..............................3 Front Panel..................................4 Real Panel..................................5 Specifications..................................6 Service.....................................7 Note....................................8... -
Page 3: Welcome
We are sincerely trust these products will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. Welcome to thinuna again, and thank you for becoming part of our worldwide extended family! Warning... -
Page 4: Installation Environment
Strong physical shocks to the unit may cause damage. Handle the unit with care. - Do not open the case or attempt repairs or modifications yourself This product contains no user-serviceable parts. Refer all maintenance to qualified Thinuna service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. -
Page 5: Features
PP-6281A Mixer / Pre-amplifier Features * 5 Mic input; 3 Aux input and 2 EMC input; * Mic 1 and EMC1~2 input has priority; * 3 steps priority: MIC1 > EMC1~2 >MIC2~5 & AUX1~3; * Each input channel with volume control ;... -

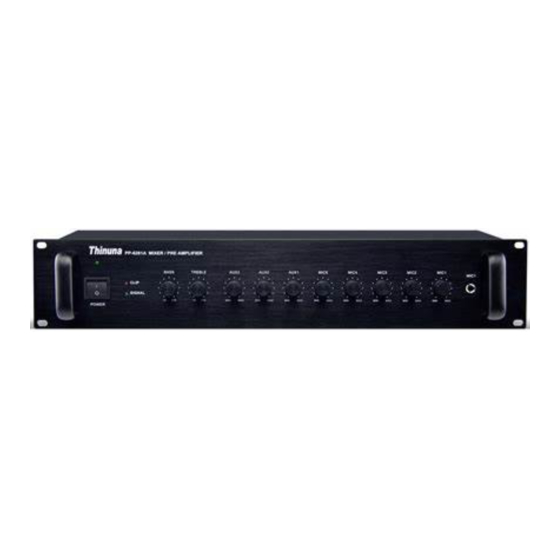

Page 6: Front Panel
PP-6281A Mixer / Pre-amplifier Front Panel 1. POWER SWITCH 2. POWER LED 3. CLIP LED The LED indicate that you need to turn down the pre-amplifier’s output volume. Do not operate the unit with the CLIP RED LED continuously on (illuminated). -
Page 7: Real Panel
PP-6281A Mixer / Pre-amplifier Rear Panel 1. MIC2 INPUT PORT: 1/4" TS unbalanced input port for MIC2. 2. MIC3 INPUT PORT: 1/4" TS unbalanced input port for MIC3. 3. MIC4 INPUT PORT: 1/4" TS unbalanced input port for MIC4. 4. MIC5 INPUT PORT: 1/4"... -
Page 8: Specifications
PP-6281A Mixer / Pre-amplifier Specifications Model No. PP-6281A Mic Input -55dB, unbalanced, 1/4”TS Aux Input -10dB，unbalanced，stereo，RCA EMC Input -10dB, unbalanced, 1/4”TS Audio Output 0dB，unbalanced，Mono，RCAx4 Frequency Response 20Hz~20kHz (±3dB) Mic input>65dB， Aux input>75dB <0.5% Power Source 220~240VAC，50/60Hz Power Consumption <10W Temperature / Humidity 0°C~40°C，... -
Page 9: Service
To obtain specific warranty information and available service locations contact Thinuna directly or the authorized Thinuna Distributor for your specific country or region. - Page 10 PP-6281A Mixer / Pre-amplifier Note...
- Page 11 PP-6281A Mixer / Pre-amplifier Note...
- Page 12 Notice: Thinuna Technology makes every effort to ensure the accuracy of information on this manual. The documents, graphics, and other information included in this manual may include technical inaccuracies, typographical, or other errors. Specifications are subject to change without notice.
