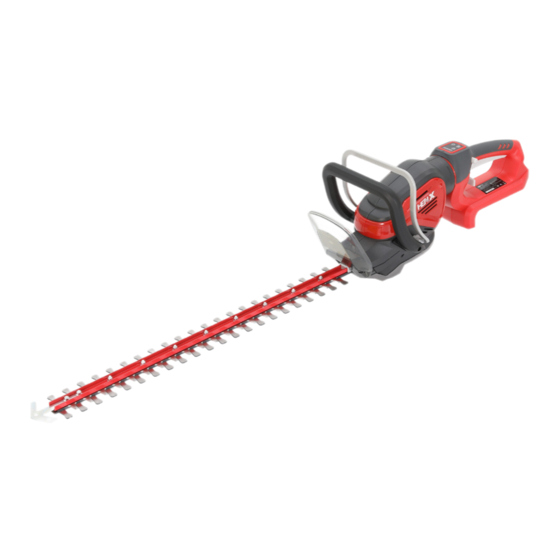

- Page 1 40-Volt Cordless Hedge Trimmer H40XZU20-G, H40XZU20-L H40XZU22-G, H40XZU22-L H40XZU24-G, H40XZU24-L OPERATOR’S MANUAL Original instructions WARNING: Read all safety rules and instructions carefully before operating this tool. Improper use can cause serious or fatal injury.
-
Page 2: Table Of Contents
Table Of Contents Safety Symbols..................4 Safety Instructions..............5-13 Introduction..................14 Specifications................14-15 Assembly....................16 Packing List..................16 Description................17-18 Operation..................19-24 Maintenance................25-27 Troubleshooting..............28-29 Warranty................30-31 Parts List....................32... - Page 3 IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE WARNING: some dust created by power cutting contains chemicals known to thestate ofCaliforniato cause cancer,birthdefectsorotherreproductive harm. some examples of these chemicalsare: Lead from lead-based paints crystalline silica from bricks and cement and other masonry products, and Arsenic and chromium from chemically-treated lumber.
-
Page 4: Safety Symbols
Safety Symbols Thepurpose of safety symbolsisto attract yourattention to possibledangers.The safetysymbolsandtheexplanations withthemdeserve yourcarefulattentionand understanding.The symbol warnings do not, by themselves, eliminate any danger.The instructions and warnings they give are no substitutes for proper accident prevention measures. WARNING: Be sure to read and understand all safety instructions in this Operator’s Manual, including all safety alert symbols such as “DANGER,”... -
Page 5: Safety Instructions
Safety Instructions This page depicts and describes safety symbols that may appear on this product. Read, understand,andfollowallinstructionsonthemachinebeforeattemptingtoassemble and operate. safety Alert indicates a potential personal injury hazard. Read the Toreduce the risk of injury, user must read Operator’s operator’s manual. Manual Always wear safety goggles or safety glasses Eye Protection... - Page 6 Charging and Store the battery pack only in Charging/Store dry rooms with an ambient temperature of the battery pack 50°F to 104°F (+10°C to +40°C). Volt Voltage Amperes current hertz Frequency (cycles per second) Watt Power Minutes Time Alternating Type of current current direct current Type or a characteristic of current...
- Page 7 IMPORTANT SAFETY INSTRUCTIONS 1) Avoid Dangerous Environment – Don’t use appliances in damp or wet locations. 2) Don’t Use In Rain. 3) Keep Children Away – All visitors should be kept at a distance from work area. 4) Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts.
- Page 8 Carrying the appliances with your finger on the power switch, or energizing appliances that have the switch on, invites accidents. Make sure the power switch is off and the battery pack is removed before clearing jammed material, making adjustments, changing accessories, storing or servicing the appliance.
- Page 9 General Power Tool Safety Warnings WARNING: Read all safety warnings and instructions. Fail to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Theterm“powertool”inthewarning referstoyourmains-operated(corded)powertool or battery-operated (cordless) power tool. Work Area Safety Keep work area clean and well lit.
- Page 10 drugs,alcoholormedication.A moment of inattentionwhileoperating powertools may result in serious personal injury. Use personal protectiveequipment.Alwayswear eye protection.Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentionalstarting. Ensure the switch isin the off-positionbefore connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 11 breakage of parts and any other condition that may affect the power tools operation. If damaged,have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control;...
- Page 12 Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Hedge Trimmer Safety Warnings DANGER – Keep hands away fromblade. contact with blade will result in serious personal injury.
- Page 13 neverremoveortamperwithsafetydevices.checktheirproperoperationregularly. never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device. never operate the hedge trimmer without proper guards, plates, or other safety protective devices in place. check damaged parts before further use of the hedge trimmer.A guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function.
-
Page 14: Introduction
Henx customer service center86-574-62037812. Thismanual containsimportant informationon to the safe assembly, operation and maintainance of your hedge trimmer. Read it carefully before using the hedge trimmer. -
Page 15: Specifications
Specifications Voltage 40V DC no-Load speed Low Speed:1600/min High Speed:2100/min Cutting Length 24" (610mm) □ 22” (550mm) □ 20”(508mm) □ Weight (Without battery pack, blade guard) 8.5 lb(3.84kg) Battery Lithium-Ion pack Models H40B75 H40B50 H40B25 H40B200 voltage 40 VDC 40 VDC 40 VDC 40VDC 20Ah... -
Page 16: Assembly
Assembly WARNING: if any parts are damaged or missing do not operate this product until theparts are replaced.Use of this product with damaged or missing parts could result in serious personal injury. WARNING: do not attempt to modify this product or create accessories not recommendedforusewiththishedgetrimmer.Anysuchalterationormodificationis misuse and could result in a hazardous condition leading to possible serious personal injury. -
Page 17: Description
Description Know Your hedge trimmer (fig. 1) The safe use of this product requires and understanding of the information on the tool and in this operator’s manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. - Page 18 Blades steel blades for cutting hedges and shrubs. Blade guard Thebladeguardkeepstheoperatorfromcomingincontactwiththesharpblades when thetoolisnotinuse.it alsohelpskeepthe bladesfrombeingnicked or damaged when the tool is in storage. Battery release button Press to release the battery pack from the tool. Latch Locks the battery pack in place when installed on the tool. Ejection mechanism Aids in removing the battery.
-
Page 19: Operation
Operation WARNING: donot allowfamiliaritywith thisproducttomake you careless. Rememberthatacarelessfractionofasecondissufficienttoinflictseriousinjury. WARNING: Always wear eye protection with side shields, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. WARNING: do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 20 To install/remove battery pack (fig . 2 & 3) WARNING: Always remove thebatterypackfromthe productwhenyouare assembling parts, making adjustments, cleaning, or when not in use. Removing the battery pack will prevent accidental starting that could cause serious personal injury. NOTE: Fully charge the battery pack before first use. To install (fig.
- Page 21 Holding the hedge trimmer The unit hasbotha frontandrearhandle.Withtheblade directed awayfromyou, hold the unit by both handles. The switchleverinthefronthandle can be activated on any of the three sides, giving you many choices for a comfortable grip when performing cutting operations (Fig. 4, 5 & 6). WARNING: Always keep both hands on the hedge trimmer handles.
- Page 22 To Start The Hedge Trimmer Your hedge trimmerisequippedwith twoswitch levers.Both switchleversneedto be pressed for the hedge trimmer to start. After the battery pack is mounted, press the “On/Off” button; depress and hold the switch lever in the front handle and pressthe lock-off button and the switchleverintherear handle at the same time to start thehedge trimmer.
- Page 23 Before starting the hedge trimmer,maintainproperfootingandbalanceand do not overreach. Wear safety goggles, non-skid footwear and rubber gloves. hold theunitwith bothhands with thecutting bladesdirectedawayfrom you. Always use the hedge trimmerproperly. Keep from trimming too much at one time. This can cause the blades to bind and slow, reducing the cutting efficiency.
- Page 24 Side Cutting When trimming the sides of the hedge, begin at the bottom and cut upwards (see Fig. 8).Trimthe side of a hedge so that it will be slight narrower at the top. Thisshape will expose more of thehedge, resulting in a more uniform growth.
-
Page 25: Maintenance
Maintenance WARNING: When servicing, use only identical replacement parts. Use of any otherparts may create a hazard or cause product damage.Toensure safety and reliability,allrepairs shouldbeperformed bya qualifiedservicetechnician. CLEANING WARNING: To avoid serious personal injury, always remove the battery pack from the product when cleaning or performing any maintenance. Use a soft brush to remove debris from all air intakes and cutting blade. - Page 26 Sharpening The Cutting Blade 1. start and stop your hedge trimmer until the cutterblade and the guard are slightly offset, as shown in Fig. 9.This willallow clearance forthe file between cutter teeth and guard teeth. 2. Remove the battery pack from you hedge trimmer.
- Page 27 Transporting And Storing Always place the blade guard on the blade before storing or transporting the hedge trimmer. Use caution to avoid the sharp teeth of the blade. clean the hedge trimmer thoroughly before storing. store the hedge trimmer indoors, in a dry place that is inaccessible to children.
-
Page 28: Troubleshooting
Troubleshooting PROBLEM CAUSE SOLUTION 1. The battery pack is not 1. Attach the battery pack to attached to the hedge the hedge trimmer. trimmer. 2. no electrical contact 2. Remove battery, check between the trimmer contacts and reinstall the and battery battery pack. - Page 29 BLADE” found on page 25 in this manual. 2. Replace with a new blade or support. Contact 2. Blades or blade support HENX service center is bent. for blade or support replacement Excessive vibration or noise. service, found on page 30.
-
Page 30: Warranty
Limited Service Warranty For four years from the date of original retail purchase, this Henx product is warranted against defects in material orworkmanship. defective product will receive free repair. For two year from the date of original retail purchase, the Henx battery pack and charger are warranted against defects in material or workmanship. - Page 31 How To Obtain Service For warranty service, please contact Henx customer service center 86-574-62037812 or www henxgarden.com When requesting warranty service, you must present the original dated sales receipt. An authorized service center will be selected to repair the product according to the stated warranty terms.
-
Page 32: Parts List
Part list 40V Max Lithium-ion Cordless Hedge The Model number will be found on the nameplate attached to the housing of the hedge trimmer. Always mention the Model number when ordering parts for this tool. Index Description Number Blade guard Screw Gasket Guard and screw set... - Page 33 Bring Power to Your Garden www.henxgarden.com...
