USER MANUAL
JK2516B

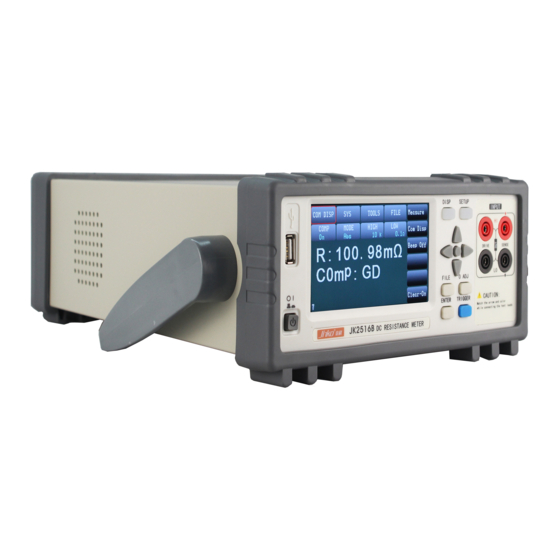

Precision Resistance Tester
Note:
The information described in this instruction may not be all of the
contents of the instrument. It has been corrected before printing. However, due to the
continuous improvement of the product, the company reserves the right to modify the
product specifications, characteristics, internal structure, appearance, accessories,
packaging and maintenance procedures in the future. Therefore, the contents may
change without prior notice. The confusion caused by the inconsistency between the
instructions and the instruments can be contacted by our company. The latest news and
contents can also be found on the company website.
Changzhou Jinailian Electronic Technology Co., Ltd
No.C3,Building 22,New Impetus Pioneering Center, No.1,Qingyang North
Road,Tianning District,Changzhou,Jiangsu,CN
TEL: 0086-519-85563477
FAX: 0086-519-85565067
https://jinailian.en.alibaba.com
www.jk17.com
www.jaldz.com
Advertisement
Table of Contents
Related Manuals for Jinko JK2516B
Summary of Contents for Jinko JK2516B
- Page 1 USER MANUAL JK2516B Precision Resistance Tester Note: The information described in this instruction may not be all of the contents of the instrument. It has been corrected before printing. However, due to the continuous improvement of the product, the company reserves the right to modify the product specifications, characteristics, internal structure, appearance, accessories, packaging and maintenance procedures in the future.
-
Page 2: Table Of Contents
Contents 1) Introduction to Instrument, Unpacking and Installing............ 1 1.1 Introduction to Instrument.................... 1 1.2 Unpacking......................... 1 1.3 Power Connection .....................1 1.4 Fuse...........................1 1.5 Environment......................1 1.6 Use of Test Fixture.....................2 1.7 Warm‐up........................2 1.8 Other Features......................2 2) Introduction to Front and Rear Panels.................3 2.1 Introduction to Front Panel..................3 2.2 Introduction to Rear Panel ..................4 2.3 Display Zone ......................4... - Page 3 5.1 Package Contents ....................14 5.2 Marks........................14 5.3 Package........................14 5.4 Shipping........................14 5.5 Storage........................14 5.6 Warranty........................15 Declaration The descriptions contained in this manual may not cover all information about this instrument.Introductions to the improvements of the instrument in performance, function, internal structure,outer appearance, accessories, packing material, etc. are subject to change without notice.
-
Page 4: Introduction To Instrument, Unpacking And Installing
Statistic function has the capacity to make statistic analysis of massive test data. JK2516B is a powerful test tool for all kinds of resistor design, detection, quality control and production. Its high test speed is applicable to the spot‐check machines on production lines. -
Page 5: Use Of Test Fixture
2)Do not turn on or off the instrument frequently. This may cause internal data confusion. 1.8Other Features 1)Consumption: ≤30VA 2)Dimensions (W*H*D): 235mm*105mm*360mm; this dimension is the final packaging size. 3)Weight: Approx. 3.6kg 2)Introduction to Front and Rear Panels This chapter will describe the basic operation of JK2516B. Before using the instrument, 4/17... -
Page 6: Introduction To Front And Rear Panels
2.1Introduction to Front Panel Figure 2‐1 shows the front panel of JK2516B Figure 2‐1 Serial Name Explain number USB interface HOST interface of USB Power It is the power switch. Color 480*272 dot‐matrix, 24‐bit, 4.3‐inch TFT is used for display measurement setup and result display. -
Page 7: Introduction To Rear Panel
(3) nameplate A specific type used to indicate an instrument. 2.3Display Zone JK2516B adopts 24‐bit 4.3‐inch LCD touch screen with a resolution of 480*272. The display screen is divided into the following zones, as shown in figure 2‐3. 1.Page name This zone shows the current page name. -
Page 8: Introduction To Buttons On Front Panel
<SORTING DISP> 2.5 Simple Operation Simple operation steps for JK2516B: The corresponding menu function at the current cursor will be displayed in the "Soft Key Area". Pressing the SETUP key will select the first softkey in the softkey area, then use the up and down keys to select and press the [O] key to confirm. -
Page 9: Basic Operation
Settings > page or the tool function page of < measurement display > page is set up. 3.1.1 Measurement Functions Measurable parameters on JK2516B are as follows: R (Resistance) LPR (Resistance tested at low voltage) Note: All functions can be set and modified by: setting and modifying the function by using the arrow keys and the O button. -
Page 10: Measurement Range
JK2516A has 7 DC resistance measuring ranges:200mΩ,2Ω,20Ω,200Ω,2kΩ,20kΩ,200kΩ JK2516B has 7 DC resistance measuring ranges:20mΩ,200mΩ,2Ω,20Ω,200Ω,2kΩ,20kΩ JK2516B temperature test range (PT500): -10 °C - -99.9 °C Temperature test range (Analog): 0~2V Operation steps for setting measurement ranges: 1) Touch the range zone, the following soft keys will be displayed. -
Page 11: Measurement Speed
●↑ (+) Increase the range. ●↓ (‐) Decrease the range. 3.1.3 Test speed JK2516B displays the measurement result as a 5‐digit number in the decimal point floating mode.In FAST mode, the result is shown as a 4‐digit number while in MED and SLOW, as a 6‐digit number and temperature as 4‐digit. -
Page 12: Compare Mode And Settings Of Abs & Percent Error
■EXT 3.2< sorting display > Enter the measurement display interface, press the set key to select the sorting display, press the confirmation key < sorting > enter the interface. As figure 3-2: figure 3-2 The following parameters can be set in the < sorting display > page. file tool Sorting... -
Page 13: Up Super And Low Super Settings
Compare modes: 1) ABS (high and low limits) In this mode, you can set low and high limits. The instrument will take comparison between the tested values and the set ones so as to judge the DUT is HI or LO or IN. 2) % (percent error) In this mode, you can set the nominal value and the percent error. -
Page 14: Range
Note: t is the waiting time of measurement, and T1 is the data processing time, about 5ms. 4.2Test Signal 4.2.1 Current range JK2516 :Current range: 1μA‐1A JK2516A :Current range:10μA -1A JK2516B:Current range:100μA-1A 4.2.2 Output Voltage of Open Circuit Output voltage of open circuit: 0.7V ,3V ,40mV 4.2.3 Maximum Display Range Parameter Measurement Display Range 1μΩ... -
Page 15: Basic Accuracy For Resistance Measurement
Measurement accuracy depends on measurement stability, temperature coefficient, linearity, repeatability and correction interpolation error. Checking the measurement accuracy should be taken under the following circumstances: a．Warm‐up time should be more than 30 minutes. b ． Correctly short the test cables, turn 0 ADJ to ON and perform short calibration by pressing the touch key or 0 ADJ panel. -
Page 16: Accuracy For Resistance Tested At Low Voltage Measurement
10μΩ 100μΩ 1mΩ 10mΩ 10mΩ 1Ω 10Ω Accuracy 0.05%+2 temperatur 300pp 100ppm e coefficient JK2516B Range 20mΩ 200mΩ 2Ω 20Ω 200Ω 2kΩ 20kΩ Current 100mA 10mA 100μA 100μA open 0.7V voltage resolution 1μΩ 10μΩ 100μΩ 1mΩ 10mΩ 100mΩ... -
Page 17: Package Contents And Warranty
5) Package Contents and Warranty 5.1 Package Contents Following items should be contained in the package. Serial Number Name Quantity JK2516B DC Resistance Meter JK2516B 26050A 4‐terminal test cable Three‐Wire power line PT500 temperature sensor Operation Manual Manufacturer Certificate Fuse of 2A... - Page 18 This warranty does not apply in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs. Jinko will,without charge, repair or replace, at its option, defective product or component parts.
