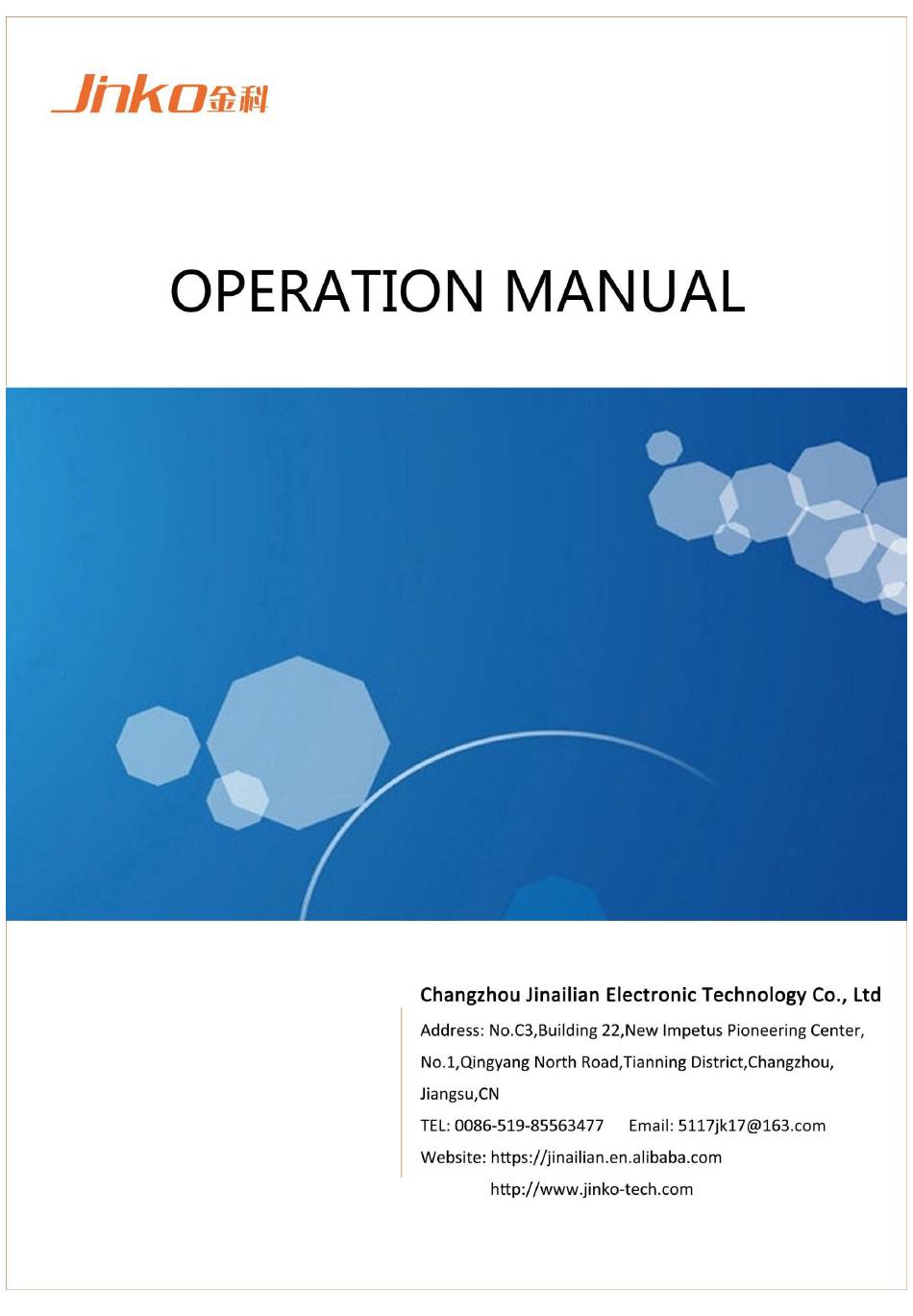

- Page 2 JK5530C/JK5530L Battery Comprehensive Tester User Manual...
- Page 3 Warning Danger: When you find the following abnormal situations occur, please immediately terminate the operation and disconnect the power cord. Contact Jinko Instrument Sales Department immediately for repair. Otherwise it will cause a fire or a potential electric shock hazard to the operator.
- Page 4 to the person. Do not use a damaged instrument: if the instrument has been damaged, the danger will be unpredictable. Please disconnect the power cord, do not use it again, and do not try to repair it yourself. Do not use an instrument that works abnormally: If the instrument does not work properly, the danger is unpredictable, please disconnect the power cord, do not use it, and do not try to repair it yourself.
-
Page 5: Table Of Contents
Table of Contents Preface..........................1 Functional Overview......................3 Appearance and operation of the instrument..............6 Wiring..........................10 Function page........................11 Instrument characteristic index..................19... -
Page 6: Preface
Preface Common rechargeable batteries include lithium batteries, nickel-cadmium batteries, nickel-metal hydride batteries, and sealed lead-acid batteries. Among them, the lithium battery has the characteristics of large capacity, light weight and high cycle times. It is widely used in mobile phones, PDAs, digital cameras, camcorders, notebook computers and other fields. It is currently the most advanced rechargeable battery. - Page 7 The fastest test time for a battery is no more than 1 second; it is fast, full-featured, and high-precision; it is the most accurate test instrument on the market. For the production and testing of rechargeable batteries, JINKO has specially developed a special comprehensive tester for rechargeable batteries, which can make a quantitative and accurate measurement of some basic parameters of the battery, and can measure the open circuit voltage, internal resistance, charging and discharging performance of the battery.
-
Page 8: Functional Overview
especially for lithium batteries. There are also overcharge protection, over discharge protection, over current protection, short circuit protection and other functions, and the corresponding values have been measured, which greatly facilitates battery production and pre-sales and after-sales services. It can intuitively judge the performance and quality of the battery in a few very simple steps, and it also has a quick screening function. - Page 9 the charging time and the charged capacity (displayed in mAH) are displayed in real time. 3. Individually selectable battery discharge function. By selecting this function, the tester can discharge a battery separately and control the discharge cut-off voltage at the same time, avoiding the disadvantages of easy over-discharge caused by the usual electronic load or resistance discharge, and it is very convenient for the factory to test battery products , The operation is also very convenient, only need to select the battery type, voltage and capacity to start the intelligent discharge program, and safely discharge the battery.
- Page 10 Screening and testing. Model JK5530C JK5530L Voltage measurement 0-60V resolution 1mV accuracy：±0.5mV range Test Range Internal resistance 0-1999mΩ resolution 1mΩ measurement range...
-
Page 11: Appearance And Operation Of The Instrument

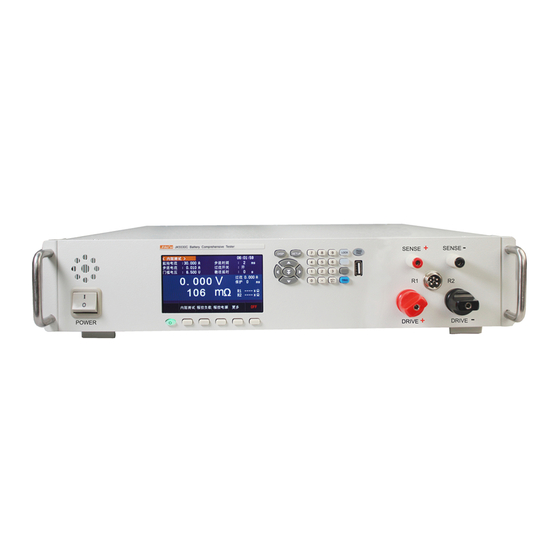

Kelvin clip test lead, test probe Accessories Size and Dimension（mm）：430（W）* 88（H）* 432（D） about 11kg （JK5530C） Weight Dimension（mm）：518（W）*268（H）*388（D） about 16kg ( JK5530L) Two. Appearance and operation of the instrument The appearance panel of the instrument is mainly composed of three parts, LCD used to display operation and measurement information as a keyboard, and wiring holes, as shown in the figure. - Page 12 JK5530C JK5530L Display Interface The display interface of this instrument is a large 4.3-inch TFT LCD, which can display more information at the same time. See the operating instructions for details. Operation interface The input interface of this instrument is composed of 26 light touch keys, which are: switch key, 5 function keys, up key, down key, left key, right key, confirm key, display key, setting key, numeric keyboard, trigger key.
- Page 13 (1. Display screen) (2. Main power switch key) (3. Function keys) (4. Setting area) (5. Keyboard area) (6. Pass/Fail) (7. USB interface) (8. Voltage Test line +/- end) (9 current test line +/- end) (10. Battery NTC test end) (1. Display screen) (2. Main power switch key) (3. Function keys) (4. Setting area) (5. Keyboard area) (6.
- Page 14 If it is in the running state, press the confirm key to pause the current operation, and press the confirm key again to start again Currently running. Rear panel JK5530C (1. Power input) (2. PLC interface) (3. RS232 interface) (4.110V/220V voltage switch) JK5530L...
-
Page 15: Wiring
Three. Wiring Mode This instrument has 3 connection terminals, of which + and - are respectively connected to the positive and negative terminals of the battery for charging And discharge connection channel; No. 9 terminal and-terminal are used to detect the two-way NTC resistance of the battery. -
Page 16: Function Page
Four. Function Page After the boot screen is displayed, enter the main function menu display interface to display voltage and battery internal resistance information, In the system setting interface, press the "DISP" key to return to the previous test interface. Internal resistance test interface The internal resistance test interface can test the overcurrent value of the battery according to the set conditions, as well as the battery's voltage before overcurrent, internal resistance, short... - Page 17 1. Overcurrent: the overcurrent protection value of the battery, 2. Protection: short circuit protection time of the battery, 3.---------V: The voltage value of the battery before the overcurrent test, 4.---------mΩ: the internal resistance of the battery. After the over-current test parameters are set, the battery will be connected and the test will start automatically after the internal resistance is stable.
- Page 18 Meaning of each parameter: Load mode: This parameter has CC mode and CV mode optional. In CC mode, the battery is discharged in constant current mode, and the load current parameter is valid; in CV mode, the battery is discharged in constant voltage mode, and the load voltage parameter effective.
- Page 19 Program control power test mode display interface Set the output voltage: press the up and down keys to move the cursor to this option, enter the voltage value you need to set through the numeric keyboard, and then press the corresponding unit in the lower left corner of the screen to complete the setting;...
- Page 20 Measurement setting interface All parameters on this page correspond to the test parameters of the instrument. After setting, cooperate with the sorting switch in the system setting to achieve the function of sorting test data. When the sorting results are all qualified, the instrument parameter display will turn green and light up The green light prompts, and at the same time, the PLC interface on the back of the instrument will also have qualified contacts;...
- Page 21 System settings page Meaning of each parameter: Internal resistance range: The range for internal resistance testing can be selected according to the internal resistance of the battery to be tested. There are three options in total: auto, low and high. The low range tests the battery internal resistance below 200mΩ and the high range tests the battery above 200mΩ.
- Page 22 List test page The meaning of each parameter List steps: Set the number of steps in the list, up to 15 steps. Test mode: automatic/manual. If you select automatic mode, the instrument will determine whether to perform list test based on the threshold voltage. If you select manual, you need to press the OFF function key at the lower right corner of the instrument to perform list test.
- Page 23 After all parameter settings are completed, press the enter test function key to enter the list test to be tested interface. After entering the list test, the instrument will wait for the test or automatic test according to the test mode. After the test is completed, the instrument will display the test and sorting results;...
-
Page 24: Instrument Characteristic Index
Five. Instrument characteristic index Applicable environment of the instrument: 1. Temperature, 0~ 40℃ 2. Use height, within Altitude 2Km 3. Relative humidity, 40~80% humidity Electrical parameters: Power supply voltage: 220V ±10% 50H z Power consumption, maximum 150W Appearance and weight: Instrument weight: 11 K g Instrument size(mm): 430（W）* 88（H）* 432（D）...
