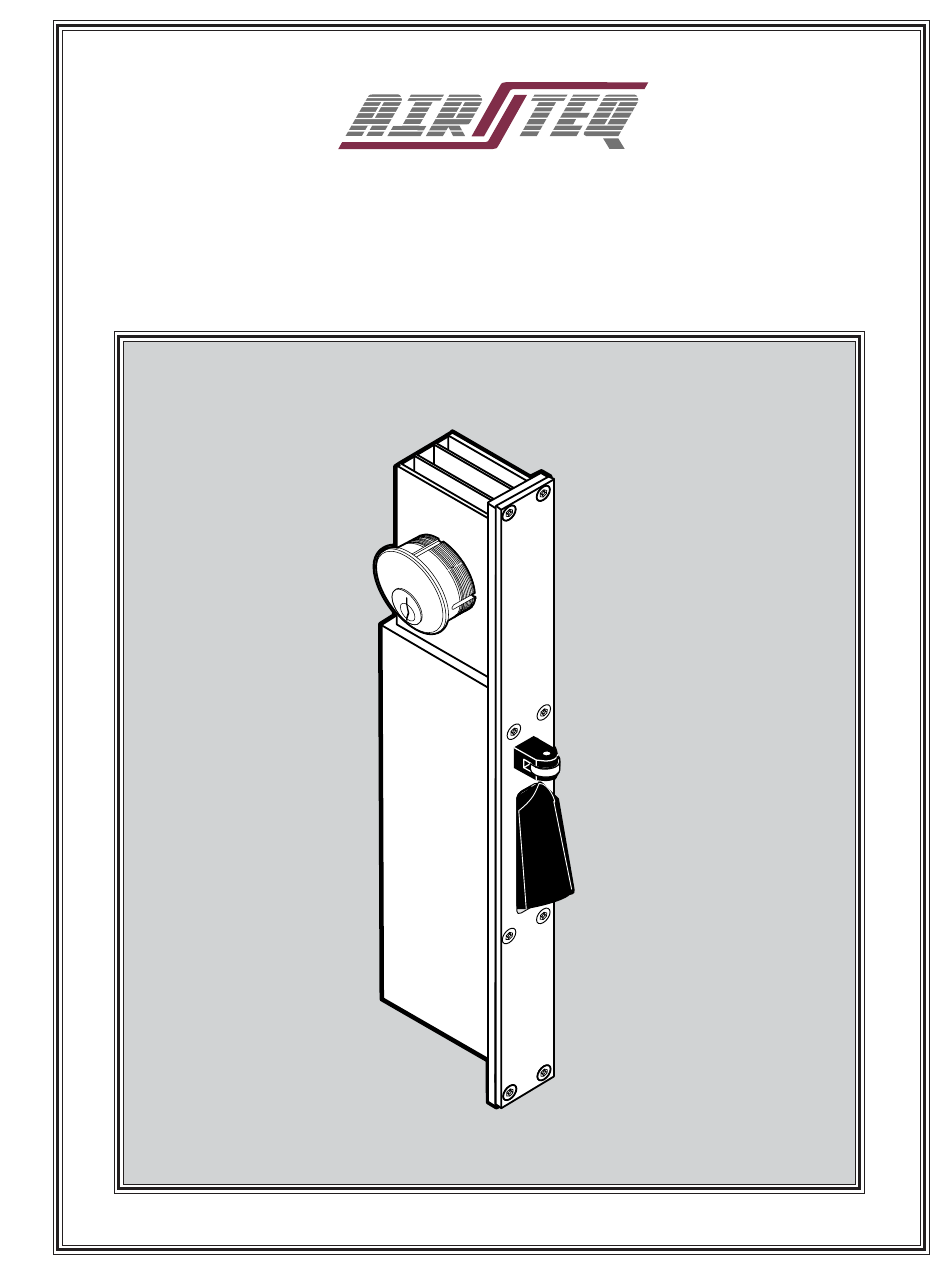

- Page 1 9600 SERIES LOCK...
- Page 3 9600 SERIES LOCK PARTS LIST ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 216-9600-070 LOCK BODY FRAME 216-9400-022 SPRING, TORSION 216-9600-108 WIRE COVER 216-9400-026 SPACER, LATCHBOLT 315-0000-018 SPRING, SLIDE RETURN 146-9600-035 ASSY, LATCHBOLT, RH (SHOWN) 1***** 146-9600-028 ASSY, HOLDBACK LATCH, KBS (SHOWN)
- Page 4 9600 Assy 5-1-99.eps 9600 Parts List 5-1-99.pm6 9600 SERIES LOCK...
- Page 5 9600 SERIES LOCK RECOMMENDED SPARE PARTS LIST PART NUMBER DESCRIPTION 400-9600-000 9600 Air Cylinder, Repair Kit 160-9600-004 Assembly, Lock Status Switch 160-9600-000* Assembly, Key Switch 315-0000-041 Spring, Key Switch 315-0000-040 Spring, Deadlatch 315-0000-018 Spring, Slide Return 315-0000-053* Spring, Holdback Latch...
- Page 6 LOCK MAINTENANCE INFORMATION...
- Page 7 Lubrication of upper lock mechanism is not necessary nor recommended. 9600 SERIES LOCK: Remove the slide cover. Remove the housing cover. Remove the slide assembly . Clean and re-lubricate the slide with a thin coating of recommended lubricant on the following surfaces: a.) The 45º...
-
Page 8: Recommended Lubricants
PNEUMATIC LOCKING DEVICES 9700 SERIES LOCK: Remove one side cover plate and lubricate the deadbolt shaft and cam surface. Lubricate the latchbolt shaft and the stop sides of both bolts. 9700P SERIES LOCK: (PARACENTRIC KEYING) Remove one side cover plate and lubricate the deadbolt shaft and cam surface. - Page 9 TROUBLESHOOTING 9400, 9500 AND 9700 LOCKS If the lock is not working properly, the following chart may be used as a guide to locate and correct the problem. Because the lock receives its signal from the electronic control system, a thorough check of the control system should be con- ducted.
- Page 10 PROBLEM CHECK LATCHBOLT WILL NOT RETRACT *AIR SUPPLY TO LOCK *MECHANICAL INTERFERENCE *POWER INPUT TO UNLOCK SOLENOID (POWER SHOULD BE PRESENT DURING LOCK OPEN CYCLE) *BROKEN OR LOOSE WIRING *FAULTY OR CONTAMINATED SOLENOID VALVE *MECHANICAL INTERFERENCE LATCHBOLT WILL NOT EXTEND *BROKEN OR LOOSE WIRING (SHORT TO GROUND) *POWER INPUT TO UNLOCK SOLENOID...
