Summary of Contents for AIR TEQ 9524 Series

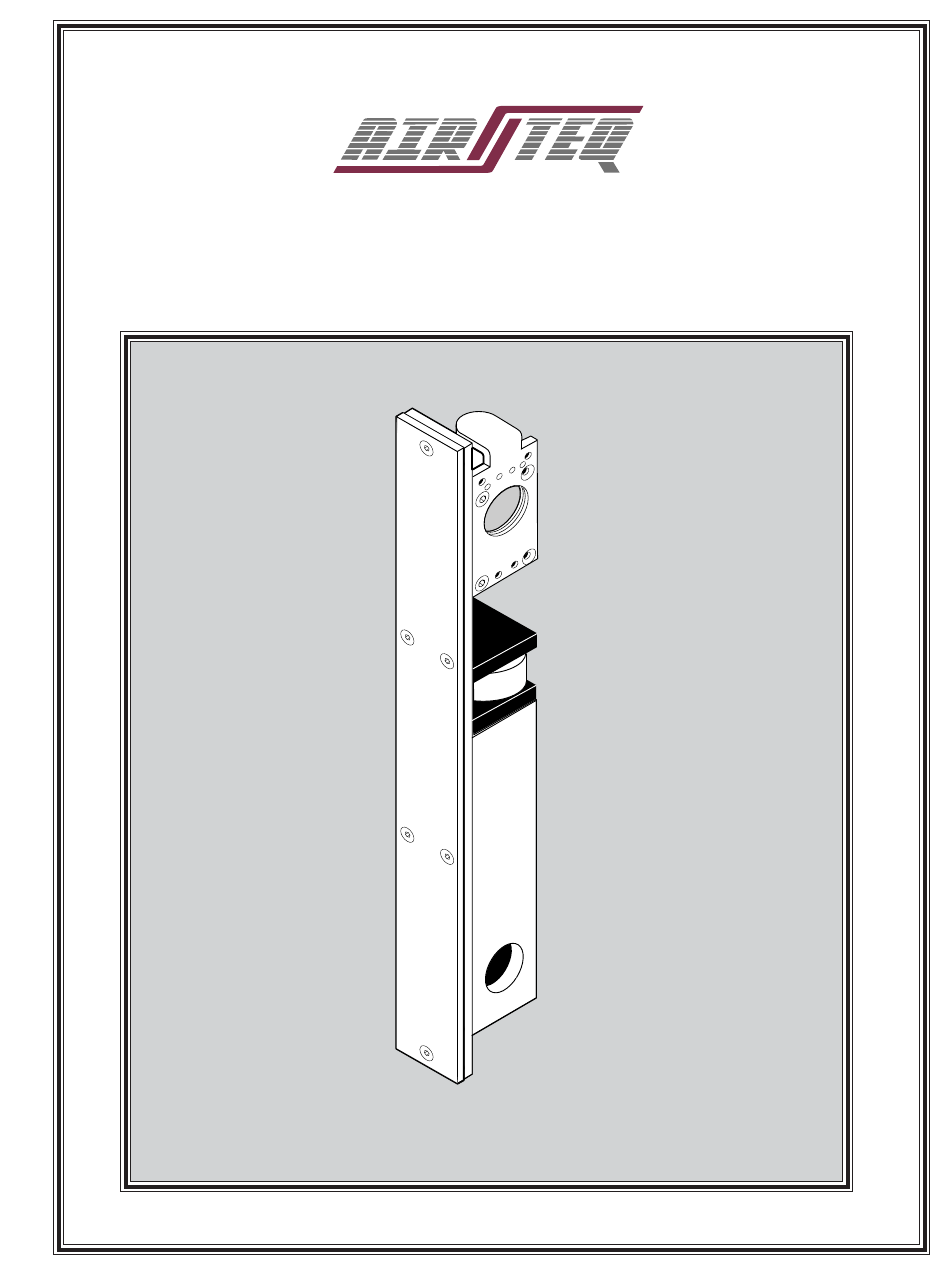

- Page 1 9524 SERIES LOCK...
- Page 3 9524 SWING LOCK PARTS LIST ITEM QTY PART NUMBER DESCRIPTION 146-9500-086 ASSY, LOCK BODY 216-9500-126 LATCHBOLT 313-0000-050 O-RING, 2-016, VITON 313-0000-052 PISTON RING, 1.25 X .070 216-9524-011 SPRING 216-9524-000 DRIVE COUPLER 313-0000-094 SEALING WASHER 315-0000-046 RETAINING RING 310-1032-003 SCREW, SHCS, 10-32 X 3/8 216-9524-005 COVER 216-9524-002...
- Page 4 9524 SERIES SWING LOCK 9524 Swing Assy 3-1-2000.eps 9524 Pages 11-19-99.pm6...
- Page 5 9524 SLIDE LOCK PARTS LIST ITEM QTY PART NUMBER DESCRIPTION 216-9524-087 LOCK BODY, MODIFIED 216-9500-090 LATCHBOLT, MODIFIED 313-0000-050 O-RING, 2-016, VITON 313-0000-052 PISTON RING, 1.25 X .070 216-9524-011 SPRING 216-9524-000 DRIVE COUPLER 313-0000-094 SEALING WASHER 315-0000-046 RETAINING RING 310-1032-003 SCREW, SHCS, 10-32 X 3/8 216-9524-005 COVER 216-9524-002...
- Page 6 9524 SERIES SLIDING GATE LOCK 9524 Slide Assy 3-1-2000.eps 9524 Pages 11-19-99.pm6...
- Page 7 9524 SERIES LOCK LUBRICATION/SEAL REPLACEMENT The 9524 Series Lock is lubricated at the factory and should require no further lubrication. Lubrication is only required when replacing the lock seals. Extensive testing has shown that the lock seals should last 5 years under normal operating conditions.
- Page 8 9524 SERIES LOCK RECOMMENDED SPARE PARTS LIST PART NUMBER DESCRIPTION 340-0000-244 STEPPER MOTOR 160-9400-013 ASSY, LOCK STATUS SWITCH 160-9400-020* ASSY, KEY SWITCH 340-0000-133 SWITCH LEVER 216-9524-011 SPRING 400-9524-000 SEAL KIT, 9524 340-0000-209 TERMINAL, MALE 125-0000-095 (95-230-0) L.I.M. MODULE W/RLB 125-0000-095 (95-230-1) L.I.M.
- Page 9 LOCK MAINTENANCE INFORMATION...
- Page 10 ELECTRO-MECHANICAL LOCKING DEVICES A. Lubrication and cleaning 1. Each lock is well lubricated at the time of assembly. However, all lubricants deteriorate eventually and need replacing on a regularly scheduled basis in order to prevent equipment failure. Airteq Systems recommends cleaning and lubricating each type of lock according to the following instructions approximately every (2) years.
- Page 11 9724 SERIES LOCK: Remove one side cover plate and lubricate the deadbolt shaft and cam surface. Lubricate the latchbolt shaft and the stop sides of both bolts. 9724P SERIES LOCK: (PARACENTRIC KEYING) Remove one side cover plate and lubricate the deadbolt shaft and cam surface.
- Page 12 TROUBLESHOOTING 9424, 9524, 9624 AND 9724 LOCKS If the lock is not working properly, the following chart may be used as a guide to locate and correct the problem. Because the lock receives its signal from the electronic control system, a thorough check of the control system should be con- ducted.
- Page 13 PROBLEM CHECK LATCHBOLT WILL NOT RETRACT *MECHANICAL INTERFERENCE *POWER INPUT TO L.I.M. (12pin connector) (24 VDC should be momentarily present on pin 2 at the initiation of an unlock request, momen- tarily present on pin 3 at the initation of a full cycle request and constantly present on pin 4.) *BROKEN OR LOOSE WIRING *IF CORRECT VOLTAGE IS PRESENT ON...
