Summary of Contents for AIR TEQ 9500 Series

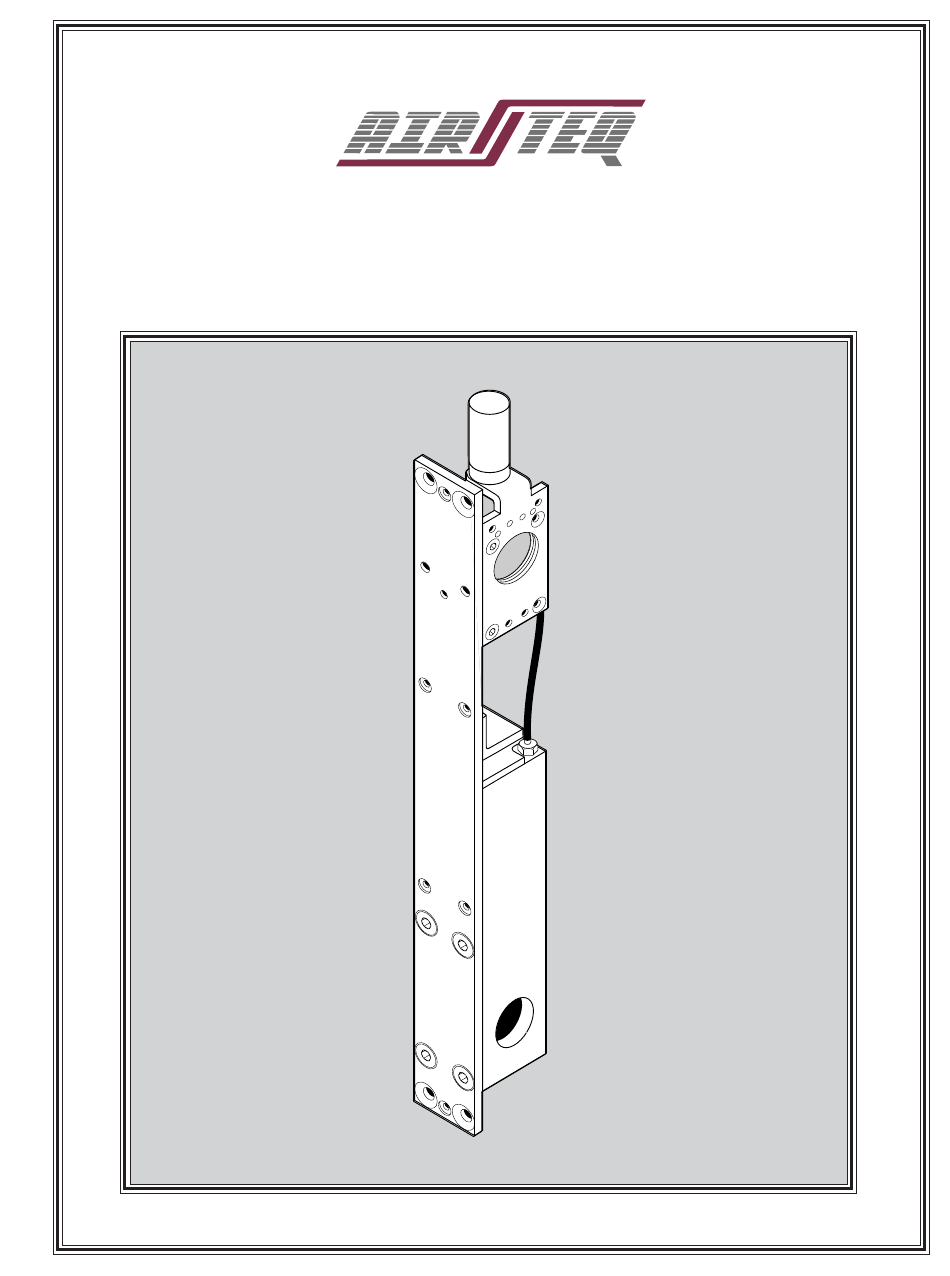

- Page 1 9500 SERIES LOCK...
- Page 3 9500 SWING LOCK PARTS LIST ITEM QTY PART NUMBER DESCRIPTION 146-9500-086 ASSY, LOCK BODY 216-9500-126 LATCHBOLT 313-0000-116 SEAL, U-CUP 313-0000-050 O-RING, 2-016, VITON 313-0000-052 PISTON RING, 1.25 X .070 216-9524-011 SPRING 216-9500-119 TOP COVER 310-1032-003 SCREW, SHCS, 10-32 X 3/8 310-0632-006 SCREW, SHCS, 6-32 X 1/4 216-9524-004...
- Page 4 9500 SERIES SWING LOCK 9500 Assy 4-1-99.eps 9500 Parts List 4-1-99.pm6...
- Page 5 9500 SLIDE LOCK PARTS LIST ITEM QTY PART NUMBER DESCRIPTION 146-9500-087 ASSY, LOCK BODY, SLIDING GATE 216-9500-090 LATCHBOLT, SLIDING GATE 313-0000-116 SEAL, U-CUP 313-0000-050 O-RING, 2-016, VITON 313-0000-052 PISTON RING, 1.25 X .070 216-9524-011 SPRING 216-9500-119 TOP COVER 310-1032-003 SCREW, SHCS, 10-32 X 3/8 310-0632-006 SCREW, SHCS, 6-32 X 1/4 216-9524-004...
- Page 6 9500 SERIES SLIDING GATE LOCK 9500 Assy 4-1-99.eps 9500 Parts List 4-1-99.pm6...
- Page 7 9500 SERIES LOCK LUBRICATION/SEAL REPLACEMENT The 9500 Series Lock is lubricated at the factory and should require no further lubrication. Lubrication is only required when replacing the lock seals. Extensive testing has shown that the lock seals should last 5 years under normal operating conditions.
-
Page 8: Recommended Spare Parts List
9500B SERIES LOCK RECOMMENDED SPARE PARTS LIST PART NUMBER DESCRIPTION 331-0000-053 SOLENOID 340-0000-133 SWITCH LEVER 216-9524-011 SPRING 160-9400-020* ASSY, KEY SWITCH 160-9400-013 ASSY, LOCK STATUS SWITCH 330-0000-414 COUPLING HALF 330-0000-415 COUPLING HALF (FIELD SIDE) 400-9500-002 REPAIR KIT, 11B-9500 LOCK 340-0000-209 TERMINAL, MALE * NOT USED ON ALL MODELS... - Page 9 LOCK MAINTENANCE INFORMATION...
- Page 10 PNEUMATIC LOCKING DEVICES A. Lubrication and cleaning 1. Each Airlock is well lubricated at the time of assembly. However, all lubricants deteriorate eventually and need replacing on a regularly scheduled basis in order to prevent equipment failure. Airteq Systems recommends cleaning and lubricating each type of lock according to the following instructions approximately every (2) years.
-
Page 11: Recommended Lubricants
PNEUMATIC LOCKING DEVICES 9700 SERIES LOCK: Remove one side cover plate and lubricate the deadbolt shaft and cam surface. Lubricate the latchbolt shaft and the stop sides of both bolts. 9700P SERIES LOCK: (PARACENTRIC KEYING) Remove one side cover plate and lubricate the deadbolt shaft and cam surface. - Page 12 TROUBLESHOOTING 9400, 9500 AND 9700 LOCKS If the lock is not working properly, the following chart may be used as a guide to locate and correct the problem. Because the lock receives its signal from the electronic control system, a thorough check of the control system should be con- ducted.
- Page 13 PROBLEM CHECK LATCHBOLT WILL NOT RETRACT *AIR SUPPLY TO LOCK *MECHANICAL INTERFERENCE *POWER INPUT TO UNLOCK SOLENOID (POWER SHOULD BE PRESENT DURING LOCK OPEN CYCLE) *BROKEN OR LOOSE WIRING *FAULTY OR CONTAMINATED SOLENOID VALVE *MECHANICAL INTERFERENCE LATCHBOLT WILL NOT EXTEND *BROKEN OR LOOSE WIRING (SHORT TO GROUND) *POWER INPUT TO UNLOCK SOLENOID...
