User's Manual

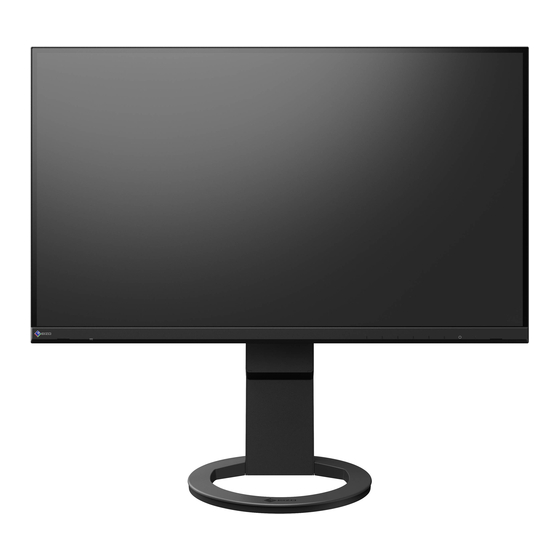

Color LCD Monitor
Important
Please read this "User's Manual", and "PRECAUTIONS" (separate
volume) carefully to familiarize yourself with safe and effective
usage.
• Refer to the "Setup Guide" for information on the installation /
connection of the monitor.
• For the latest product information including the "User's Manual",
refer to our web site :
www.eizoglobal.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eizo FlexScan EV2760
Summary of Contents for Eizo FlexScan EV2760
- Page 1 User’s Manual Color LCD Monitor Important Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage. • Refer to the “Setup Guide” for information on the installation / connection of the monitor. •...
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Notice For This Monitor
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. -
Page 4: Cleaning
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor. -
Page 5: Table Of Contents
CONTENTS Notice for this monitor ......... 3 Chapter 5 Troubleshooting ......28 Cleaning ..............4 5-1. No Picture ............ 28 To use the monitor comfortably ......4 5-2. Imaging Problems ........29 CONTENTS ............. 5 5-3. Other Problems ........... 30 Chapter 6 Attaching/Removing the Stand .. -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features ● High Degree of Flexibility for Installation • This product can be used as an external monitor of a notebook computer. • By attaching the monitor to an arm, the screen can be rotated 180° (upward-downward rotation) and used in a multi-monitor configuration. -
Page 7: Reduction Of Power Consumption
● Reduction of Power Consumption This product provides a function that automatically adjusts the screen brightness to reduce power consumption . Power Reduction, CO Reduction, and Eco Performance Level can be checked on the "EcoView Settings" menu. (page • Auto EcoView The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level. -
Page 8: Controls And Functions
1-2. Controls and Functions ● Front 1. Speakers Outputs audio. 2. Ambient light sensor Detects ambient brightness. If you use Auto EcoView, the screen brightness is automatically adjusted according to the ambient brightness (page 15). 3. Operation switches Displays menus. Operate the switches according to the operation guide (page 17). -
Page 9: Rear
● Rear 6. Handle This handle is used for transportation. 7. Security lock slot Complies with Kensington’s MicroSaver security system. 8. Lock button Use this button to remove the monitor from the stand. 9. Headphone jack Connects to headphones. 10. Stereo mini jack If you connect an external device using the stereo mini jack cable, external audio can be output from the monitor. -
Page 10: Supported Resolutions
1-3. Supported Resolutions The monitor supports the following resolutions. DisplayPort HDMI DVI-D Single Single Single Vertical scan PbyP PbyP PbyP Resolution screen screen screen frequency (Hz) display display display display display display 640 × 480 59.940 √ √ √ √ √... -
Page 11: Changing The Computer Display Settings
1-4. Changing the Computer Display Settings If the image is not displayed properly after connecting the monitor to a PC, follow the procedure below to change the display settings on the computer. ● Windows 10 1. Right-click the mouse anywhere on the desktop except on icons. A menu is displayed. 2. -
Page 12: Chapter 2 Basic Adjustment / Setting
Chapter 2 Basic Adjustment / Setting This product enables users to change the brightness according to personal preference or to suit the usage environment, and to reduce power consumption to conserve energy. This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor. -
Page 13: Switching Input Signals
2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. Note • "Screen InStyle" allows you to switch input signals using the shortcut keys on the keyboard. • By selecting PbyP (Picture by Picture) display when a monitor has multiple input signals, windows can be displayed side-by-side. -
Page 14: Switching Display Modes (Color Modes)
2-3. Switching Display Modes (Color Modes) This product is preinstalled with color modes for various display purposes. By switching the mode according to the purpose and contents of the display, you can display images in an appropriate manner. ● Display Modes Color Mode Purpose User1... -
Page 15: Conserving Energy
2-4. Conserving Energy This monitor is equipped with EcoView functions to enable users to conserve energy. If you use Auto EcoView, which is one of the EcoView functions, the screen brightness is automatically adjusted according to the ambient brightness. Setting Function Description Value... -
Page 16: Adjusting Brightness
2-5. Adjusting Brightness The brightness of the screen can be adjusted to suit the installation environment or personal preference. The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Setting Value 0 to 100 2-6. -
Page 17: Chapter 3 Advanced Adjustment / Setting
Chapter 3 Advanced Adjustment / Setting This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see “Chapter 2 Basic Adjustment / Setting” (page 12). 3-1. Basic Operation of the Setting Menu Menu display 1. -
Page 18: Setting Menu Functions
3-2. Setting Menu Functions ● Color Adjustment The color mode settings can be adjusted according to personal preference. Functions that can be adjusted differ depending on the color mode. √: Adjustable -: Not adjustable Color Mode Function User1 sRGB Paper Movie DICOM User2... - Page 19 Setting Function Description Value Color Mode User1 Select the desired mode according to the monitor application. User2 The color mode settings can also be adjusted according to personal sRGB preference. Select the mode for adjustment and perform adjustment Paper using the relevant functions. Movie Note DICOM...
- Page 20 Setting Function Description Value Advanced Overdrive Enhanced This function allows you to set the overdrive intensity based on the Settings Standard use of the monitor. Image lag can be reduced by using the “Enhanced” setting when displaying moving images. Note •...
-
Page 21: Signal Settings
● Signal Settings Set the details regarding input signal, such as the screen display size and color format. Function Setting Value Description Window Selection Left Select the application range for the signal settings. When using PbyP display, select this range first. Right •... - Page 22 Function Setting Value Description Input Color Format Auto The color format of the input signal can be specified. YUV 4:2:2 Try changing this setting if colors are not displayed correctly. YUV 4:4:4 Note • This setting is required when a DVI device is connected to the monitor via the HDMI connector port using a DVI-HDMI conversion connector.
-
Page 23: Preference Settings
● Preference Settings The monitor’s settings can be configured to suit the usage environment or personal preference. Setting Function Description Value Menu Rotation 0° When the monitor is used in a vertical position, the direction of the Setting 90° menu can also be changed. 270°... -
Page 24: Language
Setting Function Description Value Monitor Reset Restore all settings to their default values except for the following settings. • PbyP Picture Setup • Settings on the “Administrator Settings” menu ● Language The display language for menus and messages can be selected. Setting Value English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese... -
Page 25: Chapter 4 Administrator Settings
Chapter 4 Administrator Settings This chapter describes how to configure monitor operation using the “Administrator Settings” menu. 4-1. Basic Operation of the “Administrator Settings” Menu Menu display 1. Touch to turn off the monitor. 2. While touching the leftmost switch, touch for more than 2 seconds to turn on the monitor. -
Page 26: Functions Of The "Administrator Settings" Menu
USB downstream port does not work, or power is not supplied to the connected device. On-Screen Logo When the monitor is turned on, the EIZO logo appears on the screen. When this function is set to “Off”, the EIZO logo does not appear. - Page 27 Function Setting Value Description Key Lock In order to prevent changes to settings, the operation Menu switches on the front of the monitor can be locked. • “Off” (default setting) Enables all switches. • “Menu” Locks the switch. • “All” Locks all switches except the power switch.
-
Page 28: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting 5-1. No Picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light up. • Turn on the main power switch on the rear side of the monitor. •... -
Page 29: Imaging Problems
18)). (The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to flicker, contact your local EIZO representative.) • If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView”... -
Page 30: Other Problems
26)). • If the peripheral devices work correctly when they are directly connected to the PC, contact your local EIZO representative. • Depending on the USB 3.1 Gen 1 host controller you are using, the connected USB device may not be recognized properly. Update to the latest USB 3.1 Gen 1 driver provided by the manufacturer, or... -
Page 31: Chapter 6 Attaching/Removing The Stand
Chapter 6 Attaching/Removing the Stand 6-1. Removing the Stand The stand section of this product can be removed. Attention • Do not move the stand up and down after removing it. If you move the stand up and down while it is not attached to the monitor, this may cause damage or injury. -
Page 32: Attaching The Optional Arm
6-2. Attaching the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the supported optional arm (or optional stand). www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of the respective User’s Manual. •... -
Page 33: Attaching The Original Stand
6-3. Attaching the original stand Lay the LCD monitor on a soft cloth spread over a stable and flat surface with the LCD panel surface facing down. Remove the fixing screws on the optional arm (or optional stand), and detach the optional arm (or optional stand). -
Page 34: Chapter 7 Reference
Chapter 7 Reference 7-1. Connecting Multiple PCs This product can be connected to multiple PCs and allows you to switch between the connections for display. ● Connection examples DD200DL DVI-D cable (DVI-D - DVI-D) (Separately sold accessory) HDMI HH200HS HDMI HDMI cable (HDMI - HDMI) (Separately sold accessory) DisplayPort... -
Page 35: Using The Usb Hub Function
7-2. Using the USB Hub Function This monitor is equipped with a USB hub. It functions as a USB hub when connected to a USB- compatible PC, allowing the connection of peripheral USB devices. ● Connection procedure 1. Connect the USB downstream port of the computer and the USB upstream port of the monitor with a USB cable. -
Page 36: Specifications
7-3. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Size 68.5 cm (27.0 inch) Resolution 2560 dots × 1440 lines Display Size (H × V) 596.7 mm × 335.7 mm Pixel Pitch 0.233 mm Display Colors 8-bit colors: 16.77 million colors Viewing Angle 178˚... -
Page 37: Accessories
Physical Dimensions 611.7 mm × 359.9 mm to 554.9 mm × 233.6 mm to 268.0 mm Specifications (W × H × D) (Tilt: 35˚) 611.7 mm × 376.3 mm to 545.3 mm × 230.0 mm (W × H × D) (Tilt: 0˚) Dimensions 611.7 mm ×... -
Page 38: Appendix
United States and other countries. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Quick Color Match, RadiLight, Re/Vue, SafeGuard, Screen... - Page 39 03V27987A1 UM-EV2760 Copyright © 2019 EIZO Corporation. All rights reserved. 1st Edition-December, 2019...
