User's Manual

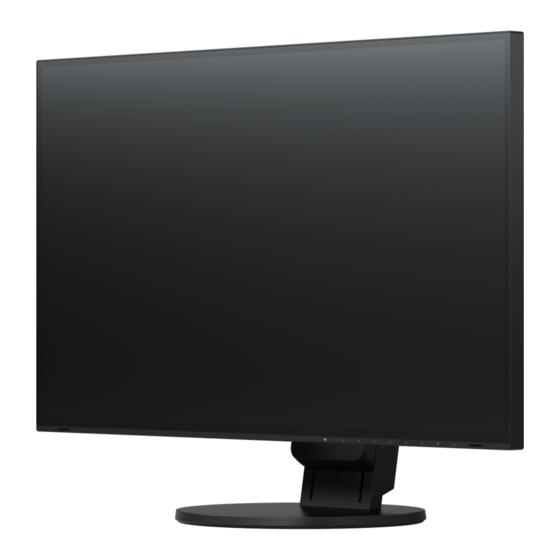

Color LCD Monitor
Important
Please read this "User's Manual", and "PRECAUTIONS" (separate
volume) carefully to familiarize yourself with safe and effective usage.
• Refer to the "Setup Guide" for information on the installation /
connection of the monitor.
• For the latest product information including the "User's Manual",
refer to our web site :
http://www.eizoglobal.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eizo FlexScan EV2785
Summary of Contents for Eizo FlexScan EV2785
- Page 1 User’s Manual Color LCD Monitor Important Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage. • Refer to the “Setup Guide” for information on the installation / connection of the monitor. •...
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Notice For This Monitor
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. -
Page 4: Cleaning
Do not scratch or press on the LCD panel with any sharp objects, at this may result in damage to the LCD panel. Do not attempt to brush with tissues as this may scratch the panel. When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. -
Page 5: Table Of Contents
CONTENTS Notice for This Monitor ......... 3 5-2. Imaging Problems ........29 5-3. Other Problems ........... 30 Cleaning ..............4 Chapter 6 Reference ........31 To Use the Monitor Comfortably ......4 CONTENTS ............. 5 6-1. Attaching the Optional Arm ......31 ●... -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features ● Support for DisplayPort over USB Type-C (DP Alt Mode) / USB Power Delivery This product is equipped with a USB Type-C (USB-C) connector compatible with DP Alt Mode and USB Power Delivery. -
Page 7: High Degree Of Flexibility For Installation
● High Degree of Flexibility for Installation • This product can be used as an external monitor of a notebook computer. • This product can be used in a multi-monitor configuration in which multiple monitors are connected to a single PC. ●... -
Page 8: Controls And Functions
1-2. Controls and Functions ● Front Setting menu 1. Ambient light sensor Detects ambient brightness (Auto EcoView function (page 16)). 2. Operation switches Displays menus. Operate the switches according to the operation guide. 3. Power switch Turns the power on or off. 4. -
Page 9: Rear
● Rear 6. Handle This handle is used for transportation. 7. Security lock slot Complies with Kensington’s MicroSaver security system. 8. Main power switch Turns the main power on or off. : On, : Off 9. Power connector Connects the power cord. 10. -
Page 10: Supported Resolutions
1-3. Supported Resolutions The monitor supports the following resolutions. DisplayPort HDMI USB-C Single screen Single screen Single screen Vertical display display display scan PbyP PbyP PbyP Resolution 4K UHD 4K UHD frequency 4K UHD 4K UHD Version Version display display display 60Hz / 30Hz /... -
Page 11: Setting The Resolution
1-4. Setting the Resolution If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution, follow the procedure below. ● Windows 10 1. Right-click the mouse anywhere on the desktop except on icons. 2. -
Page 12: Chapter 2 Basic Adjustment / Setting
Chapter 2 Basic Adjustment / Setting This product enables users to change the brightness according to personal preference or to suit the usage environment and reduce power consumption to conserve energy. This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor. -
Page 13: Switching Input Signals
2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. Note • "Screen InStyle" allows you to switch input signals using the shortcut keys on the keyboard. • By selecting PbyP (Picture by Picture) display when a monitor has multiple input signals, windows can be displayed side-by-side. -
Page 14: Switching Display Modes (Color Modes)
2-3. Switching Display Modes (Color Modes) This product is preinstalled with color modes for various display purposes. Switch the mode according to the purpose and content for display. This allows the monitor to display images in a manner appropriate to the display content. ●... -
Page 15: Conserving Energy
2-4. Conserving Energy This monitor is equipped with EcoView functions to enable users to conserve energy. Use this function to curtail unnecessary power consumption and save on electricity expenses. Saving power also reduces carbon dioxide emissions. Note • The power saving level (Power Reduction, CO Reduction, and Eco Performance Level) can be checked on the “EcoView Settings”... - Page 16 Setting Function Description Range Auto EcoView The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level using Auto EcoView. The power consumption of the backlight can be curtailed by adjusting the brightness to an appropriate level.
-
Page 17: Adjusting Brightness
2-5. Adjusting Brightness The brightness of the screen can be adjusted to suit the installation environment or personal preference. The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Setting Range 0 to 100 2-6. -
Page 18: Chapter 3 Advanced Adjustment / Setting
Chapter 3 Advanced Adjustment / Setting This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see “Chapter 2 Basic Adjustment / Setting” (page 12). 3-1. Basic Operation of the Setting Menu Menu display 1. -
Page 19: Setting Menu Functions
3-2. Setting Menu Functions ● Color Adjustment The color mode setting status can be adjusted according to personal preference. Functions that can be adjusted differ depending on the color mode. √: Adjustable -: Not adjustable Color Mode Function User1 sRGB Paper Movie DICOM... - Page 20 Setting Function Description Range Color Mode User1 Select the desired mode according to the monitor application. User2 The color setting status can also be adjusted according to personal sRGB preference. Select the mode for adjustment and perform adjustment Paper using the relevant functions. Movie Note DICOM...
-
Page 21: Signal Settings
Setting Function Description Range Advanced Overdrive Enhanced This function allows you to set the overdrive intensity based on the Settings Standard use of the monitor. Image lag can be reduced by using the “Enhanced” setting when displaying moving images. -50 to 50 Adjust the hue. - Page 22 Function Setting Range Description Picture Expansion Auto The screen size of the monitor display can be changed. Full Screen • “Auto” Aspect Ratio The monitor automatically changes the screen size Dot by Dot according to the aspect ratio and resolution information from the PC.
-
Page 23: Preference Settings
● Preference Settings The monitor’s settings can be configured to suit the usage environment or personal preference. Setting Function Description Range Menu Rotation 0° Change the orientation of the Setting menu when using the monitor screen in 90° the portrait display position. Note •... -
Page 24: Language
Setting Function Description Range Sound Left Select the source of audio to output from the monitor during PbyP display. Selection Right • “Left” (PbyP) Outputs the audio source from the left screen. • “Right” Outputs the audio source from the right screen. Monitor Reset Restore all settings to their default values except for the following settings. -
Page 25: Chapter 4 Administrator Settings
Chapter 4 Administrator Settings This chapter describes how to configure monitor operation using the “Administrator Settings” menu. This menu is for administrators. Configuration on this menu is not required for normal monitor use. 4-1. Basic Operation of the “Administrator Settings” Menu Menu display 1. -
Page 26: Functions Of The "Administrator Settings" Menu
4-2. Functions of the “Administrator Settings” Menu Setting Function Description Range Auto Input Detection This function automatically recognizes the connector through which PC signals are input, and displays images on the screen accordingly. - “On” When the monitor is connected to multiple PCs, if a specific PC enters power saving mode or no signals are input to the monitor, the connector is automatically changed to another one to which signals are input. - Page 27 • If the HDMI signal that is being input is not displayed, change this setting. On-Screen Logo When the monitor is turned on, the EIZO logo appears on the screen. When this function is set to “Off”, the EIZO logo does not appear. Key Lock...
-
Page 28: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting 5-1. No Picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light up. • Turn on the main power switch on the rear side of the monitor. •... -
Page 29: Imaging Problems
19)). (The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to flicker, contact your local EIZO representative.) • If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView”... -
Page 30: Other Problems
• Reboot the PC. • If the peripheral devices work correctly when they are directly connected to the PC, contact your local EIZO representative. • Depending on the USB 3.1 host controller that you are using, connected USB devices may not be recognized correctly. Update to the latest USB 3.1 driver provided by each manufacturer, or connect... -
Page 31: Chapter 6 Reference
Chapter 6 Reference 6-1. Attaching the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the supported optional arm (or optional stand). http://www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of the respective User’s Manual. •... -
Page 32: Attaching The Optional Arm (Or Optional Stand)
● Attaching the optional arm (or optional stand) 1. Lay the LCD monitor on a soft cloth spread over a stable and flat surface with the panel surface facing down. 2. Remove the stand. As shown in the figure, while holding down the lock button (1), slide the stand toward the stand base until it touches the stand base (2). -
Page 33: Detaching/Attaching The Cable Holder
6-2. Detaching/Attaching the Cable Holder ● Detaching the cable holder 1. Slide the cable holder to the left, and detach it from the stand. ● Attaching the cable holder 1. Align the tabs of the cable holder with the attachment parts of the stand. 2. -
Page 34: Detaching / Attaching The Cable Cover
6-3. Detaching / Attaching the Cable Cover ● Attaching the cable cover 1. Align the tabs of (A) with the attachment parts of the stand. 2. Slide (A) downward to secure the tabs to the attachment parts of the stand. 3. -
Page 35: Detaching The Cable Cover
4. Pass the cables between (A) and (B), and align (B) with (A) to fit in. 5. Slide (B) downward and secure it to (A). ● Detaching the cable cover 1. Slide (B) upward, and detach it from (A). 2. While holding down of (A) lightly, slide (A) upward to detach it from the stand. -
Page 36: Connecting Multiple Pcs
6-4. Connecting Multiple PCs This product can be connected to multiple PCs and allows you to switch between the connections for display. ● Connection examples HDMI HH200PR (HDMI - HDMI) HDMI (supplied) DisplayPort PP200 (DisplayPort - DisplayPort) DisplayPort (supplied) USB-C CC200SS (USB-C - USB-C) USB-C (supplied) -
Page 37: Using The Usb Hub Function
6-5. Using the USB Hub Function This monitor is equipped with a USB hub. It functions as a USB hub when connected to a USB- compatible PC, allowing the connection of peripheral USB devices. ● Connection procedure 1. Connect the USB cable between the USB-C connectors of the PC and the monitor. 2. -
Page 38: Specifications
6-6. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Size 68.5 cm (27.0 inch) Resolution 3840 dots x 2160 lines Display Size (H × V) 596.7 mm × 335.7 mm Pixel Pitch 0.155 mm Display Colors 8-bit colors: 16.77 million colors Viewing Angle 178˚... -
Page 39: Accessories
200 hPa to 1060 hPa Requirements *1 HDMI CEC (or mutual control) is not supported. *2 Only Gen1 5 Gbps is supported. ● Accessories Cleaning Kit EIZO “ScreenCleaner” For the latest information about accessories, refer to our web site. http://www.eizoglobal.com Chapter 6 Reference... -
Page 40: Appendix
Apple, macOS, Mac OS, OS X, Macintosh and ColorSync are registered trademarks of Apple Inc. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, CuratOR, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i •... -
Page 41: Fcc Declaration Of Conformity
Trade name: EIZO Model: FlexScan EV2785 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 42 03V27054A1 UM-EV2785 Copyright © 2017 EIZO Corporation. All rights reserved. 1st Edition-October, 2017...
