- Page 1 Platform stair lift PLG7 ORIGINAL-user manual Part 1: Operating manual English Version 2.08 ASCENDOR GMBH Drautendorf 48 4174 Niederwaldkirchen Austria Tel.: +43 7231 40040 Fax: +43 7231 40040-590 office@ascendor.at www.ascendor.at...
- Page 2 Operating Manual Platform stair lift PLG7 Date of issue: March 2019 Version 2.08 Part 1 / 3 of the original user manual My ASCENDOR-partner is: Page 2 Version 2.08 Operating Manual PLG7...
-
Page 3: Table Of Contents
Description of the lift ............................6 2.1. Views of the operating controls ......................6 2.2. Views of the Ascendor platform stair lift....................6 2.3. List of parts and controls ......................... 7 2.4. Service access hatch and fuse box ......................7 Intended scope of operations ......................... - Page 4 Annual inspection by Lift Inspector ....................28 Technical data sheet ..........................29 The further parts of the original user manual are: • Part 2: Assembly Instruction • Part 3: Maintenance and Service Manual Page 4 Version 2.08 Operating Manual PLG7...
-
Page 5: Introduction
1. Introduction Dear reader! We would like to offer you our congratulations on purchasing this high quality ASCENDOR platform lift and in so doing offer you our thanks for the trust you have shown in our company. -
Page 6: Description Of The Lift

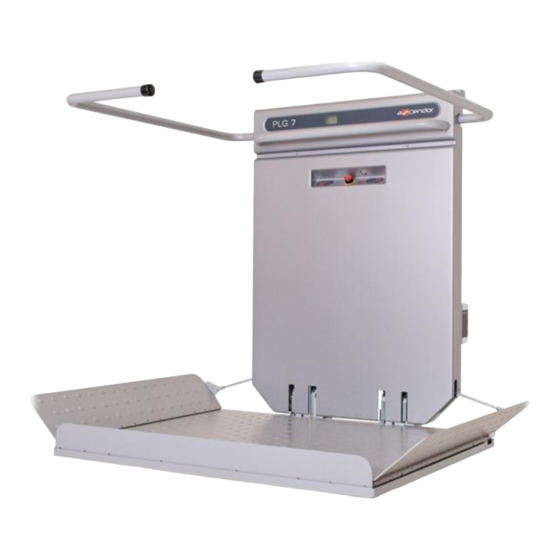

Views of the operating controls Onboard controls fitted to the lift Handheld remote control Wall mounted remote controls Key switch positions ON / OFF 2.2. Views of the Ascendor platform stair lift Front view Rear view – – Platform open Platform closed Page 6 Version 2.08... -
Page 7: List Of Parts And Controls
A connection diagram label is attached to the inside of the service access cover. Push Button Platform motor Connection cable for Platform OPEN F2 Fuse 7,5A Main Power Switch platform emergency opening Push Button Drive motor RESET button Platform CLOSE F3 Fuse 40A F1 Fuse 2A Operating Manual PLG7 Version 2.08 Page 7... -
Page 8: Intended Scope Of Operations
3. Intended scope of operations The Ascendor platform stair lift PLG7 is a fixed installation which may only be used for the purpose for which it was originally designed. Environmental operating conditions: • Operating temperatures from -20° to +40°C •... -
Page 9: Warranty Conditions
3.2.1. User All users of an Ascendor platform lift must be in possession of the necessary mental and physical abilities and must have adequate eyesight to be able to recognise a hazard or an obstacle and be able to respond and act accordingly. -
Page 10: General Description
An arresting device (emergency brake) ensures that in the event of a mechanical or electrical failure, the lift remains stationary and does not descend down the travel rails. Page 10 Version 2.08 Operating Manual PLG7... -
Page 11: Certification Plate
Service load: … kg Maximum load capacity: Nominal power: 0,5 KW Net weight: 120 kg Only 1 Person incl. wheel chair, Ser. No.: PLG7-..-….. Year of manufacture 20.. maximum weight ... kg! Manufacturer: Ascendor GmbH Keep travel area in sight at all... -
Page 12: Safety Guidelines
! A T T E N T I O N ! The Ascendor platform stair lift is manufactured in accordance with international safety regulations. Nevertheless, operating errors and misuse can result in serious injuries to the user and/or third parties and cause damage to the lift, its surroundings and property of the operator! The intention of this chapter is to highlight these dangers. - Page 13 Do not use the lift in conditions where a high risk of explosion is present. (e.g. in the event of a gas leak) For indoor and outdoor facilities, operating the lift after a temporary or permanent flooding of the lift is forbidden. Operating Manual PLG7 Version 2.08 Page 13...
- Page 14 Maintenance and Service Manual. (Part 3 of the Original User Manual). We advise that an Ascendor approved partner is entrusted with this work. If the lift is to be operated without the use of third party assistance, it is essential that extra precautions are provided so that –...
-
Page 15: Operating The Lift
6.3. Calling and returning the lift unit The Ascendor platform stair lift can be summoned from or sent to its stationary positions with the assistance of the remote-control unit. 6.3.1. Calling or returning the lift unit from the upper station:... -
Page 16: Access To Lift Platform
(if fitted) is first properly stowed before closing the platform with the handheld remote control. LOCATION: Upper or Lower Station Push and hold platform CLOSE button. Both safety bars swing down and the platform folds upwards into the parked position. Page 16 Version 2.08 Operating Manual PLG7... -
Page 17: What Should I Do In The Case Of An Unforeseen Stoppage
Chapter 9.1 in this manual. 6.7.1. Emergency travel Following a technical fault, it is still possible to move the Ascendor platform stair lift into a safe position. PLEASE NOTE: The following emergency travel operation procedure is only to be used in the event of a true emergency! The lift, with a passenger onboard is positioned between stations and refuses to function and no other possibility remains to set the lift in motion. -
Page 18: Emergency Rescue Procedure
! ATTENTION ! - Sudden opening of the platform! When the tension belt is removed the platform will fold down suddenly under its own weight. Page 18 Version 2.08 Operating Manual PLG7... -
Page 19: Electrical Operation And Recharging Advice
The battery voltage is maintained at a constant 27,6V and the charge current slowly drops to zero. The recharger can therefore always remain connected without damaging the batteries. If the battery voltage should drop below 27,6V the recharging cycle will repeat stages 2 and 3. Operating Manual PLG7 Version 2.08 Page 19... -
Page 20: Safety Features
To release the emergency-stop button simply turn it to the left. 8.7. Emergency call via acoustic signal Pressing the emergency call button on the lift (see Chapter 2.1 - Pos. 4) will sound an acoustic signal. Page 20 Version 2.08 Operating Manual PLG7... -
Page 21: Optional Extras
9. Optional extras Ascendor platform stair lifts can be fitted with a range of optional extras which have been designed to meet the different requirements of our customers. 9.1. Emergency call options We offer a choice of two options: Emergency call by UKW radio signal Emergency calling device which enables direct communication to a pre-defined telephone number using a GSM modem. -
Page 22: Stainless Steel Folding Seat
9.7. Wall mounted housing for recharger The wall mounted plastic housing is designed to protect the recharger from physical and environmental hazards and is suitable for indoor and outdoor use. Page 22 Version 2.08 Operating Manual PLG7... -
Page 23: Ec Declaration Of Conformity
10. EC Declaration of conformity For machines according to the machinery directive 2006/42/EC in the current version. Manufacturer: Ascendor GmbH, Drautendorf 48, A-4174 Niederwaldkirchen, Austria hereby declares under sole responsibility, that the product identified below: Description: Platform Stair Lift Model and commercial description: PLG7... -
Page 24: Trouble Shooting Guide
Check freedom of movement of safety Fault 8 bar motor bars and/or platform motor operation. Fuse F2 is broken Straighten lever of b19 switch or replace Lever switch b19 is bent or broken Page 24 Version 2.08 Operating Manual PLG7... - Page 25 Push RESET button on 2A Fuse F1 Short circuit Lift does not work (see Chapter 2.4) No prompt visible on PLC is defective Call service technician the PLC display Low battery voltage Call service technician Operating Manual PLG7 Version 2.08 Page 25...
-
Page 26: Dismantling And Disposal
The weight is displayed on the name plate fitted on each lift. The transportation of the lift and its ancillaries are only to be partaken under the supervision of an Ascendor partner. Damages which occur during transport undertaken under any other circumstances are not covered by guarantee. -
Page 27: Service Notes
The lift should be operated at least once every 2 weeks. Use the rain cover included for exterior installations while the lift is not in use in order to protect it from rain. Operating Manual PLG7 Version 2.08 Page 27... -
Page 28: Annual Check
15.4. Annual check This platform lift should be serviced as required and subjected to a thorough inspection and service in accordance with the Ascendor Maintenance and Service Manual (Part 3 of the Original User Manual) at least once a year. -
Page 29: Technical Data Sheet
Supporting elements made from zinc-coated steel • Covering panels made from scratch resistant plastic (Standard) Travel rails • Clean, stainless steel tubular upper handrail • Stainless steel solid bar toothed rack lower drive rail Operating Manual PLG7 Version 2.08 Page 29...
