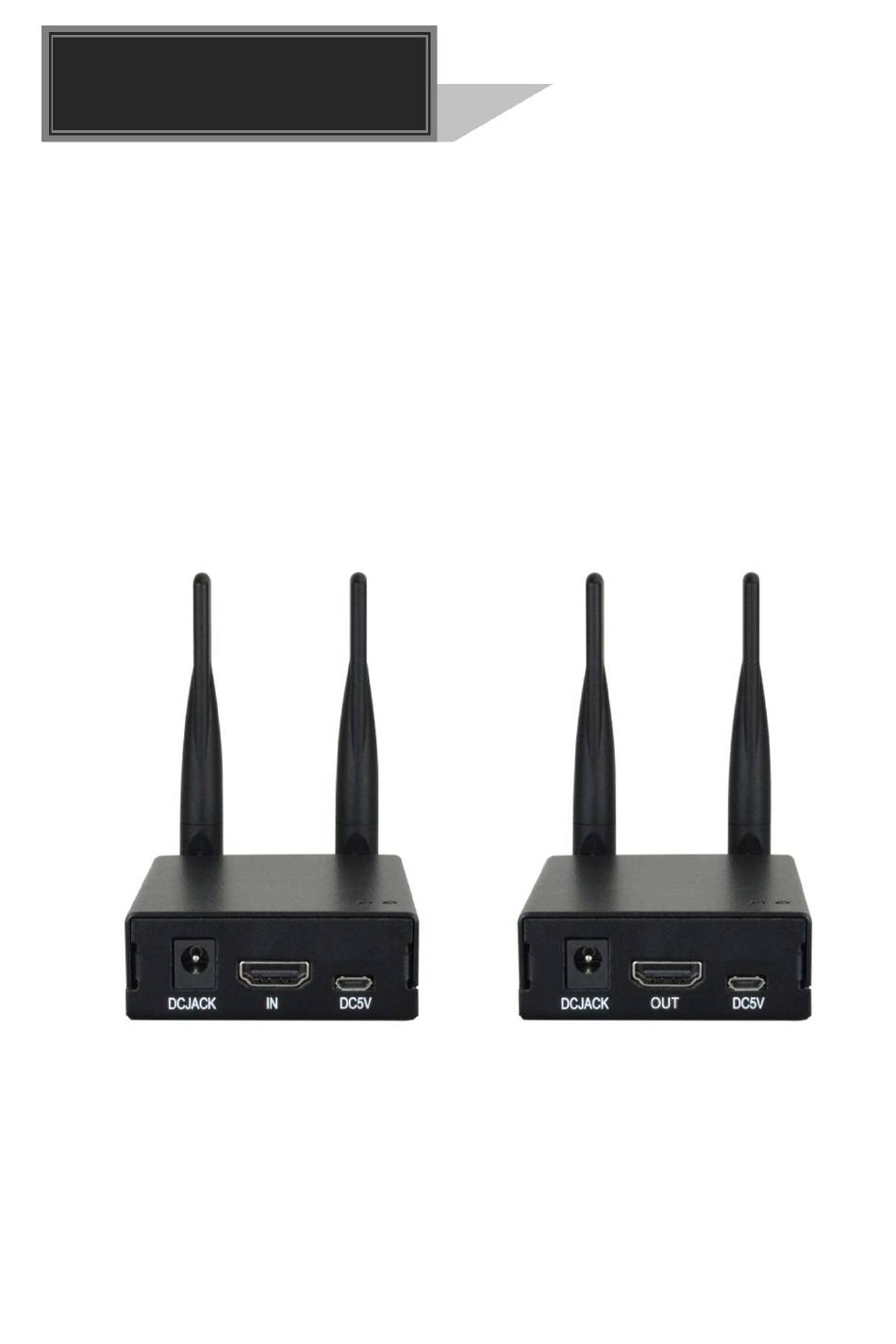

- Page 1 User Manual MPHD-WL11 Wireless HDMI Extender All Rights Reserved Version: MPHD-WL11_2018V1.0...
- Page 2 Wireless HDMI Extender Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Wireless HDMI Extender SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
Wireless HDMI Extender Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 1 2. Specification ....................... 2 3. Panel Description ......................4 3.1 Transmitter (Tx) ....................4 3.2 Receiver (Rx) ..................... 4 4. System Connection ..................... 5 5. -
Page 5: Product Introduction
Wireless HDMI Extender 1. Product Introduction The MPHD-WL11 is a wireless HDMI extension solution kit, it transmits full HD video up to 130m with low latency of 60~100ms as well as low power consumption. It can be used at home theater, conference center, auditorium etc. -
Page 6: Specification
Wireless HDMI Extender 2. Specification Transmitter (Tx) Video Input (1) HDMI Video Input Connector (1) Type-A female HDMI (1) DCJACK, (1) DC5V Power Input Power Input Connector (1) DC Jack, (1) Micro-USB Receiver (Rx) Video Output (1) HDMI Video Output Connector (1) Type-A female HDMI (1) DCJACK, (1) DC5V Power Input... - Page 7 Wireless HDMI Extender Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humidity 10% ~ 90% 87.0mm(W) x 24.5mm(H) x 64.0mm(D) Dimension (W*H*D) Net Weight Tx/Rx: 225g...
-
Page 8: Panel Description
Wireless HDMI Extender 3. Panel Description 3.1 Transmitter (Tx) ① IN: Type-A HDMI port to connect HDMI source device. ② DCJACK: DC jack for external AC power supply 110V ~ 220V,50/60HZ ③ DC5V: Micro-USB port for external 5V DC power supply ④... -
Page 9: System Connection
Wireless HDMI Extender 4. System Connection Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 10: Default System Configuration
Wireless HDMI Extender <Table 1 Hardware Ports> Hardware Ports Transmitter (Tx) Receiver (Rx) HDMI connector Input Output Video / Audio Data WIFI (Antenna) 2T2R 2T2R IEEE 802.11 abgn Only for power Micro-B type USB Power Charge Power Charge charge, not for (OTG USB) KBD/Mouse/Storage Tx –... -
Page 11: System Configuration
Wireless HDMI Extender 6. System Configuration 6.1 Preparation to connect to Web Server Step 1. In order to configure the Tx and Rx, use a PC with wireless LAN function. Please use PC static IP to connect the web server. Go to “Control Panel -> All Control Panel Items ->... - Page 12 Wireless HDMI Extender And then, click the properties of the Wireless Network in the “Network Connection‟ page. Open “Internet Protocol Version 4 (TCP/IPv4)” on the tap of the Networking, and then click the “Properties‟.
- Page 13 Wireless HDMI Extender Set the IP address and Subnet mask as the following figure. Please check if the wireless network is connected to Tx SSID, “QDM-3000”.
- Page 14 Wireless HDMI Extender After the network setting of the PC, please power on the Tx and Rx. After pairing the both of the devices, please type “20.20.20.1” in the web browser to configure the web servers to configure Tx.
- Page 15 Wireless HDMI Extender Please type “20.20.20.2” in the web browser to configure the web servers to configure ※ Attention: The basic connection of the web server is through the RootAP. To connect the client web server with a browser, the RootAP should be alive and paired with the client.
-
Page 16: Configuration Rx
Wireless HDMI Extender 6.2 Configuration Rx The Tx and Rx should be connected properly. On the “20.20.20.2” page, please select the “Device tap” on the left, and configure as below: A. QIM Mode : rx B. Startup Mode : Client C. - Page 17 Wireless HDMI Extender 2) Please select “Wireless” tap on the left to configure SSID name. To be aware of both of the Tx and Rx should connect to the same SSID.
- Page 18 Wireless HDMI Extender 3) Please click the “Save‟ button after the configuration of the wireless part. Subsequently, click the “Reboot‟ button to restart the Tx and Rx, and they will be automatically paired and connected automatically.
-
Page 19: Configuration Tx
Wireless HDMI Extender 6.3 Configuration Tx The Tx and Rx should be connected properly. On the “20.20.20.1” page, please select the “Device tap” on the left, and configure as below: A. QIM Mode : tx B. Startup Mode : RootAP C. -
Page 20: Troubleshooting & Maintenance
Wireless HDMI Extender 7. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output on the HDMI display. No HDMI signal output in The cables may be not Check the cables are the device while local connected correctly or properly connected and HDMI input is in normal... -
Page 21: Customer Service
Wireless HDMI Extender 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
