Solid State Field Device Wiring; Check The Terminal Block - DirectLOGIC DL405 Manual

18
Solid State Field
Device Wiring
Check the Terminal
Block

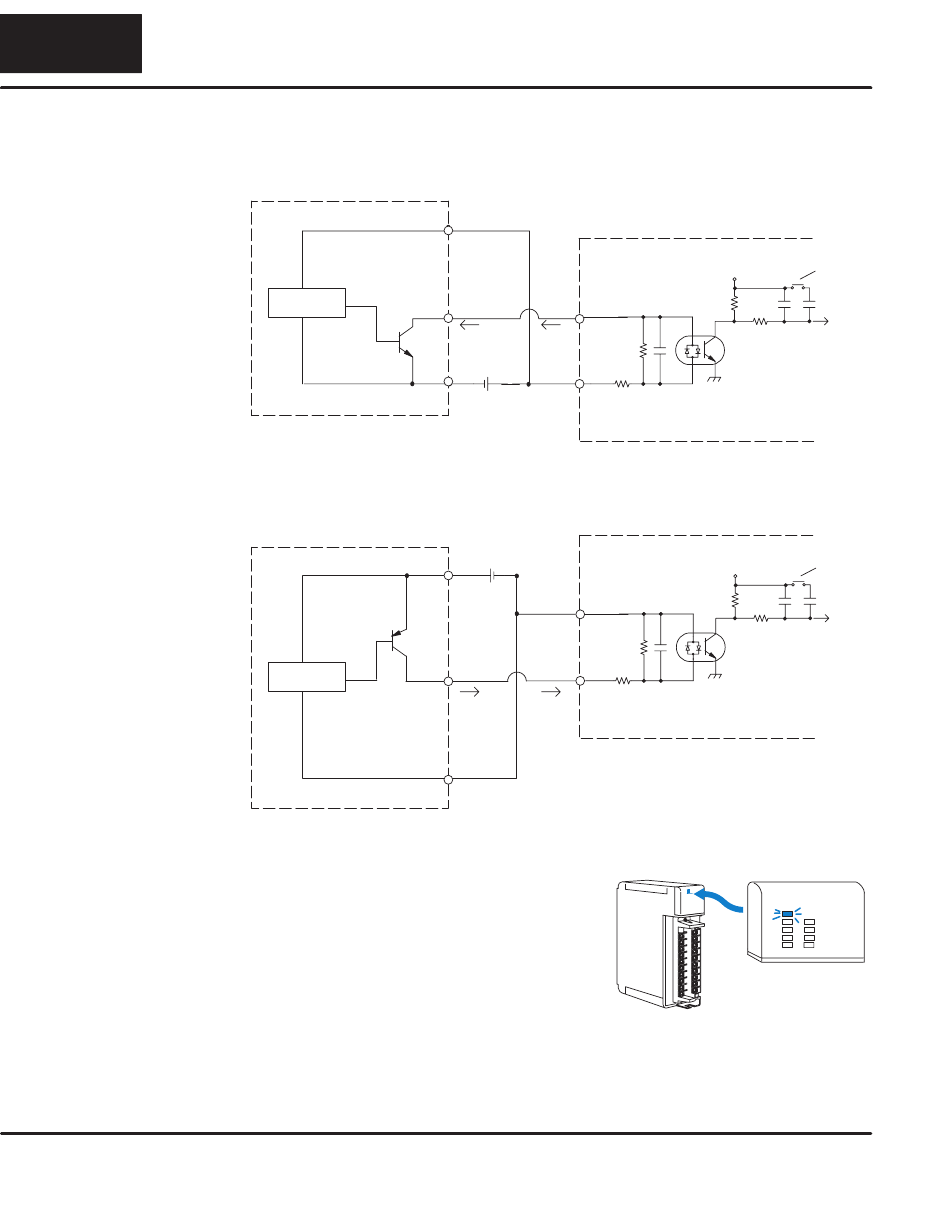

The following diagrams show how to connect solid state field devices to the D4–INT
Interrupt Input module.
NPN Field Device Example
Sensor
Output
(NPN) Current Sinking
Field Device
PNP Field Device Example
Output
Sensor
(PNP) Current Sourcing
Field Device
After you have finished making the wiring
connections, install the terminal block on the
module, making sure the terminal block is
tightly seated. Be sure to tighten the retaining
screws. Also verify that the loose terminal block
LED is off when the system power is applied. If
the TB LED is on, then the terminal block is not
connected properly.
Once you have the field wiring connected, you're ready to write the control program.
+
C0
12 – 24VDC
– +
-
0
*
12 – 24VDC
+
+ –
C0
0
*
-
D4–INT
+V
Optical
Isolator
Response delay switch is set with Switch 2,
positions 5–8 on rear of the module. This is only
for points X0 – X3. Points X4 – X7 are fixed at the
fastest response.
D4–INT
+V
Optical
Isolator
Response delay switch is set with Switch 2,
positions 5–8 on rear of the module. This is only
for points X0 – X3. Points X4 – X7 are fixed at the
fastest response.
INTERRUPT MODULE
TB
0
1
2
3
D4-INT
Response
Time Switch*
To
Circuitry
Response
Time Switch*
To
Circuitry
4
5
6
7
