I/O Assignments You can only use one Interrupt module with the D4–430 CPU. Since the module

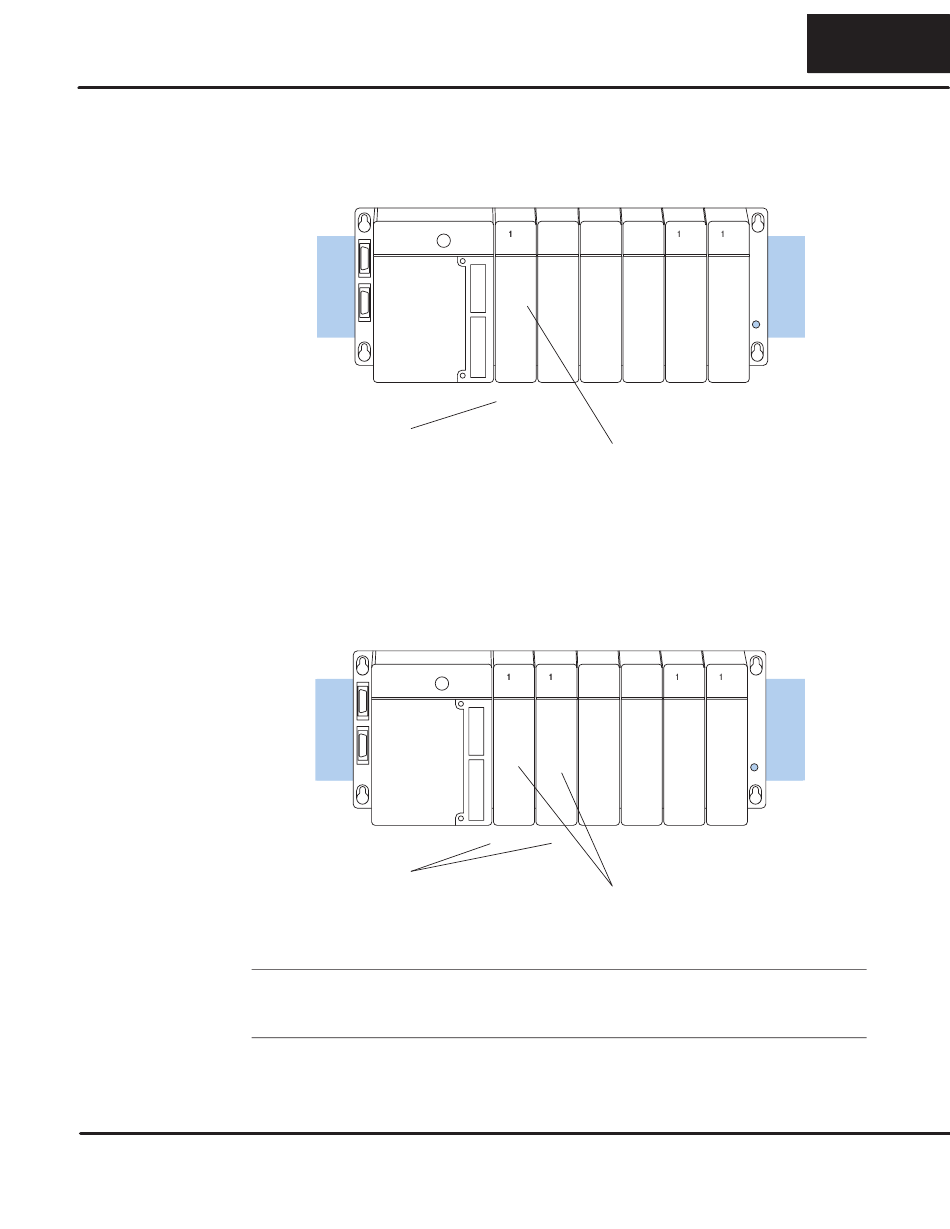

with a D4–430 must be placed in slot 0, the points used are X0 – X17. The following diagram shows
an example system with I/O assignments.
I/O Assignments Each Interrupt module consumes 16 input points. You can use two Interrupt modules
with a D4–440 with the D4–440 CPU. Since the modules must be placed in slot 0 and slot 1, the
points used are X0 – X17 for the first module, and X20–X37 for the second interrupt
module. If you only use one interrupt module, install it in slot 0. (You can install
another type of module in slot 1.) The following diagram shows an example system
with I/O assignments for a D4–440 with two Interrupt modules.
Interrupt Input modules must be placed
NOTE: The D4–440 supports manual I/O configuration. That is, you can manually
assign the I/O addresses in any order. If you use manual configuration, make sure
you must install the Interrupt modules (and use the addressing) as shown above.
Now that you understand the module placement and the I/O assignments, you're
ready to connect the field wiring.
Interrupt Input module must
be placed in Slot 0, next to the CPU
in Slot 0 and Slot 1, next to the CPU
D4–INT
6pt 8pt 32pt 8pt
Input Input Input Input
X0 X20 X30 X70
– – – –
X7 X27 X67 X77
X10
–
X17
Slot 0 1 2 3
Interrupt inputs appear on
I/O points X0 – X7
D4–INT D4–INT
6pt 6pt 32pt 8pt
Input Input Input Input
X0 X20 X40 X100
– – – –
X7 X27 X77 X107
X10 X30
– –
X17 X37
Slot 0 1 2 3
Interrupt inputs appear on I/O
points X0 – X7 for the first module;
X20 – X27 for the second module
