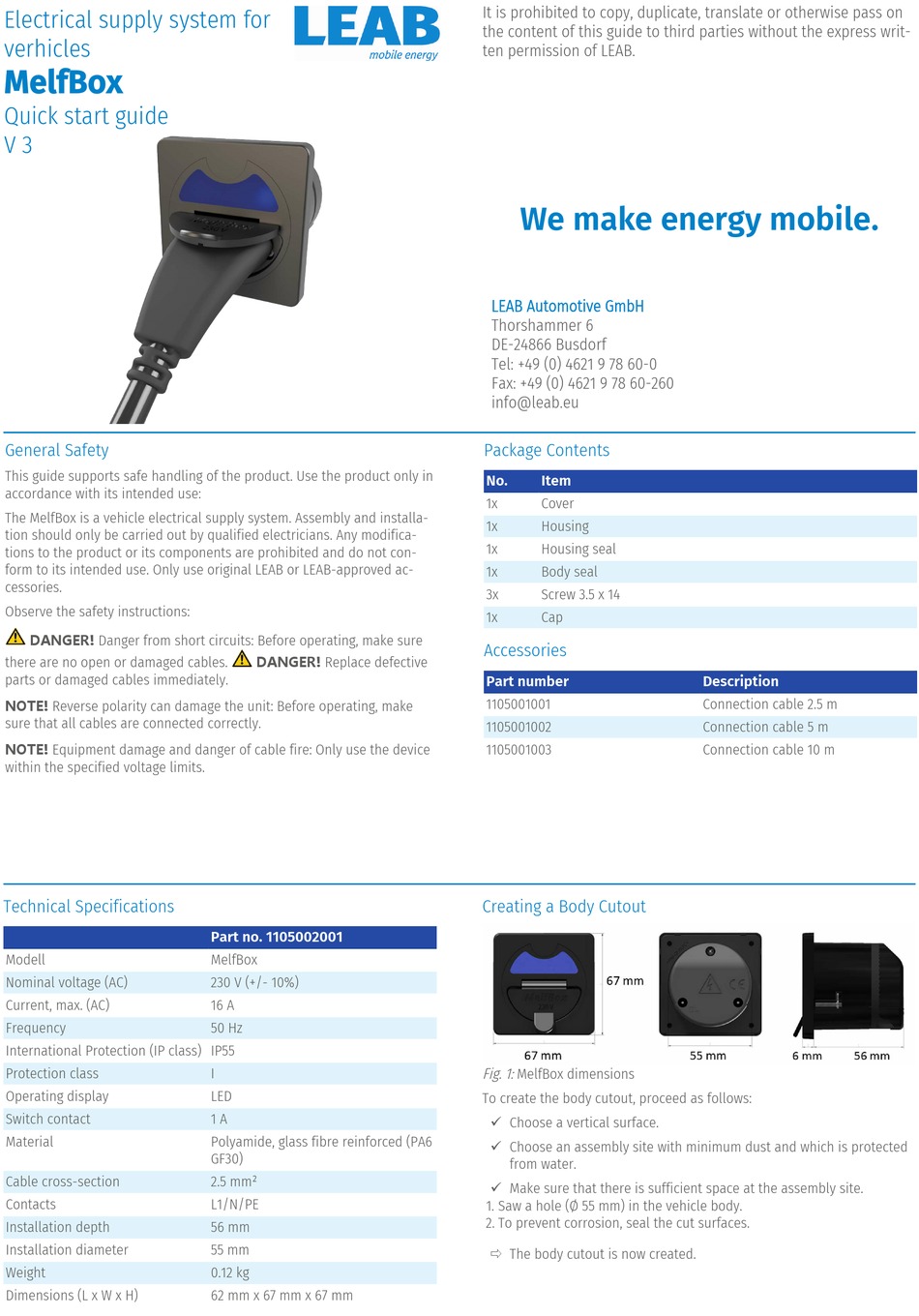

LEAB MelfBox Quick Start Manual

Electrical supply system for
verhicles
MelfBox
Quick start guide
V 3
General Safety
This guide supports safe handling of the product. Use the product only in
accordance with its intended use:

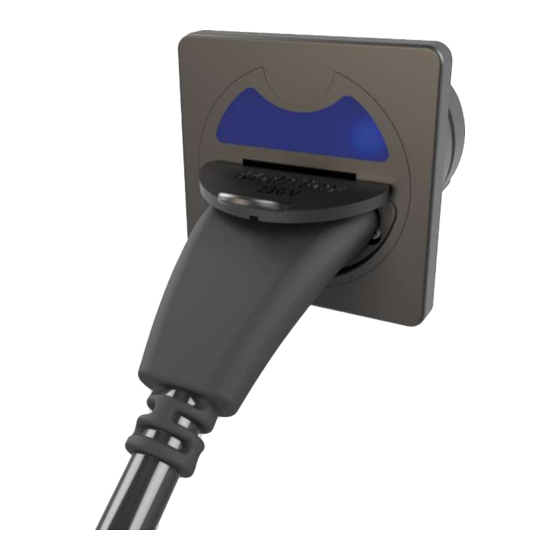

The MelfBox is a vehicle electrical supply system. Assembly and installa-
tion should only be carried out by qualified electricians. Any modifica-
tions to the product or its components are prohibited and do not con-
form to its intended use. Only use original LEAB or LEAB-approved ac-
cessories.
Observe the safety instructions:
DANGER! Danger from short circuits: Before operating, make sure
there are no open or damaged cables.
parts or damaged cables immediately.
NOTE! Reverse polarity can damage the unit: Before operating, make
sure that all cables are connected correctly.
NOTE! Equipment damage and danger of cable fire: Only use the device
within the specified voltage limits.
Technical Specifications
Modell
Nominal voltage (AC)
Current, max. (AC)
Frequency
International Protection (IP class) IP55
Protection class
Operating display
Switch contact
Material
Cable cross-section
Contacts
Installation depth
Installation diameter
Weight
Dimensions (L x W x H)
DANGER! Replace defective
Part no. 1105002001
MelfBox
230 V (+/- 10%)
16 A
50 Hz
I
LED
1 A
Polyamide, glass fibre reinforced (PA6
GF30)
2.5 mm²
L1/N/PE
56 mm
55 mm
0.12 kg
62 mm x 67 mm x 67 mm
It is prohibited to copy, duplicate, translate or otherwise pass on
the content of this guide to third parties without the express writ-
ten permission of LEAB.
We make energy mobile.
LEAB Automotive GmbH
Thorshammer 6
DE-24866 Busdorf
Tel: +49 (0) 4621 9 78 60-0
Fax: +49 (0) 4621 9 78 60-260
info@leab.eu
Package Contents
No. Item
1x Cover
1x Housing
1x Housing seal
1x Body seal
3x Screw 3.5 x 14
1x Cap
Accessories
Part number
1105001001
1105001002
1105001003
Creating a Body Cutout
Fig. 1: MelfBox dimensions
To create the body cutout, proceed as follows:
ü Choose a vertical surface.
ü Choose an assembly site with minimum dust and which is protected
from water.
ü Make sure that there is sufficient space at the assembly site.
1. Saw a hole (Ø 55 mm) in the vehicle body.
2. To prevent corrosion, seal the cut surfaces.
ð The body cutout is now created.
Description
Connection cable 2.5 m
Connection cable 5 m
Connection cable 10 m
