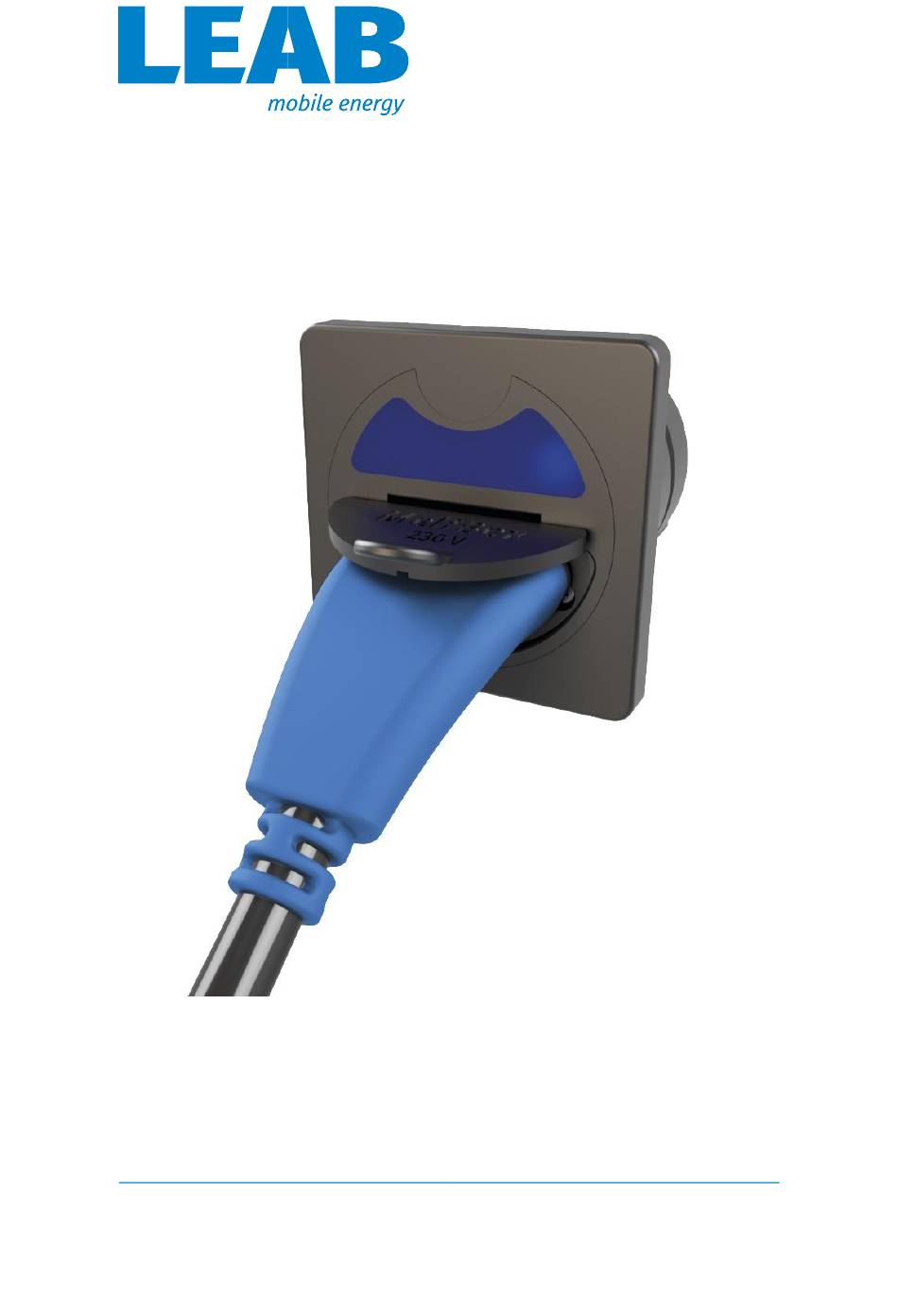

- Page 1 MelfBox® Vehicle electrical input system User manual LEAB Automotive GmbH User manual Thorshammer 6 Version: 1.6 DE-24866 Busdorf Issue date: 12.06.2019...
-
Page 2: Table Of Contents
Welcome With the LEAB MelfBox, you have opted for a modern and technically innovative vehicle electrical input system. Read this manual carefully before installing and commissioning, and retain it for future reference. If you have any suggestions or comments about this manual, please let us know by email: techdoc@leab.eu. -
Page 3: About This Manual
About this Manual The technical data, information and illustrations are carefully compiled and correspond to the state of the art at the time of printing. LEAB reserves the right to change products and documentation without prior notice at any time in accordance with technical requirements and new developments. -
Page 4: General Safety
Assembly and installation should only be carried out by qualified electricians. Any modifications to the product or its components are prohibited and do not conform to its intended use. Only use original LEAB or LEAB-approved accessories. When installing and using the MelfBox, observe the basic safety instructions: ... -
Page 5: About The Melfbox
About the MelfBox User manual About the MelfBox The LEAB MelfBox is a vehicle electrical input system. It has a potential-free switching contact (normally open contact) to create a start locking mechanism. An electronic system prevents contact erosion. The status display provides information about the current system status. -
Page 6: Assembly And Installation
Assembly and Installation User manual Assembly and Installation Notes on the Assembly Site To ensure perfect operation, observe the following notes on the assembly site: Choose a vertical surface. Choose a site that has minimum dust and is protected from jet water. -
Page 7: Connecting And Assembling The Supply Unit
Connect the wires of the connection cable to the corresponding screw terminals (see illustration). Optional: Connecting the start locking mechanism The MelfBox has a potential-free switching contact (normally open contact) to create a start locking mechanism. The design of the start locking mechanism depends on the vehicle. -
Page 8: Operation
User manual Assembling the Supply Unit Before assembling the supply unit: Check the correct connection of the cables in the MelfBox housing. Check that the body seal is seated on the housing. Place the housing seal in the cap. -
Page 9: Cleaning And Maintenance
Check the fuse at the outlet of the MelfBox. Cleaning and Maintenance WARNING Injury from electric shock Before doing any work, make sure that the MelfBox system is de-energised. NOTICE Strong jet water can cause damage Do not aim the pressure washer or other devices directly at the MelfBox supply unit. -
Page 10: Disposal
Electronic Equipment Regulations (WEEE). The product must not be disposed of with household waste. Take it to a recycling point or send it to your point of sale. Technical Specifications MelfBox, Supply Unit Part number 1105002001 Nominal voltage (AC) 230 V (+/- 10 %) Current, max. -
Page 11: Accessories
The current and complete document is available on request from techdoc@leab.eu. 12 Warranty LEAB grants a legal guarantee from the date of purchase if the installation of the product has been carried out by a specialist and if it has been used in accordance with the intended use. - Page 12 LEAB Automotive GmbH Thorshammer 6 DE-24866 Busdorf Germany Tel.: +49(0) 4621 9 78 60-0 Fax: +49(0) 4621 9 78 60-260 Email: anfrage@leab.eu Web: www.leab.eu...
