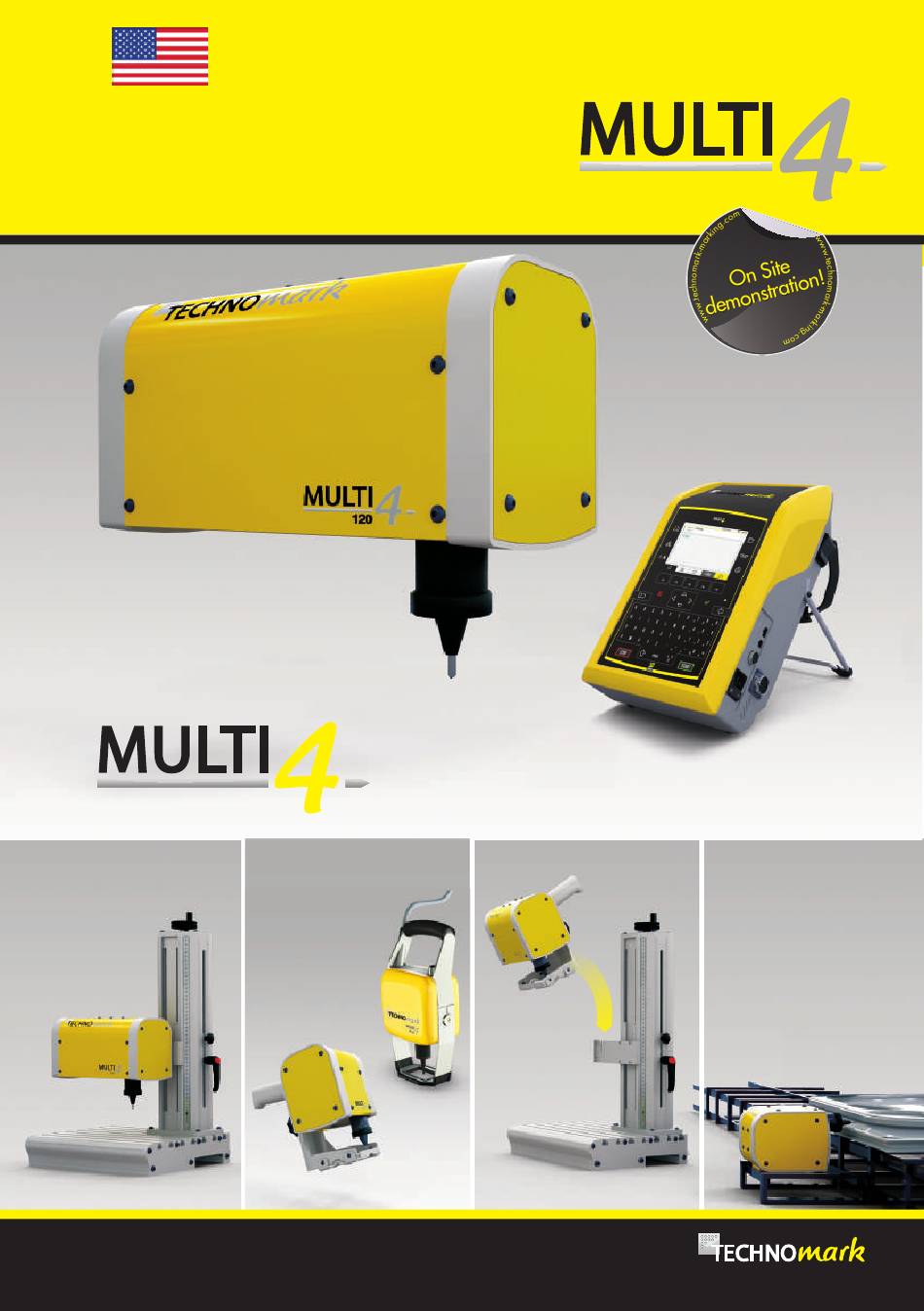

- Page 1 ® new generation! ® 1 product - 4 configurations ® creatiVe traceaBiLitY...
- Page 2 presentation MuLti4 Benefits • easier to use : simplified user interface, intuitive navigation, new and improved features (zooming, cutting/pasting, test …) • resolution : high definition color screen • intuitive : icon based navigation menu allows for quick understanding and operation of the software •...
- Page 3 user’s ManuaL MuLti4 / QuicK user guide n°1 read the safety instructions step 1 : depending on your Hand tightening is (without part to mark • application, we under the marking head). sufficient (see user’s strongly recommend to guide 1-B-2). think about positioning •...
-
Page 4: Main Functions
user’s ManuaL Main functions step 3 : 01 - return to home page 12 - parameters setting (zoom, time, language, accessory, 02 - character height, position window size, …) and marking force 13 - secondary functions 03 - setting point density, (see step 4 underneath) spacing, ... - Page 5 user’s ManuaL MuLti4 / QuicK user guide n°1 producing a "simple" marking step 5 : 01- 03 position part under the marking head fasten the part to the table adjust height of the marking head (tighten the locking handle (1), adjust height with the upper wheel (2), release the locking handle (3)) then lock it position the stylus tip between...
- Page 6 user’s ManuaL confirm entered data and select "test" menu test marking (choose from: line outline configuration (1), file outline (2), beginning-end line (3), line without impact (4), file without impact (5)) start marking select "file" menu press "save" key enter file name and eventually confirm entry turn off the mains switch ( comments...
-
Page 7: Technical Help
Maintenance and daily service step 2: the new Multi 4 generation was designed to keep maintenance as low as possible. only the mechanical part (marking head) requires minor maintenance. regular maintenance with manufacturer origine pieces ensures marking equipment lifetime of 20% gain. -
Page 8: Troubleshooting
tecHnicaL HeLp trouble shooting step 4: the control screen does not work. the marking quality is bad and/or the stylus stays stuck, tip downwards. the characters are not well formed. • check the main power supply • clean and oil the stylus •... - Page 9 adMinistratiVe MuLti4 / QuicK user guide n°3 Your support Many services are available to satisfy all your requirements. our teams are at your service. coMMerciaL departMent for all inquiries concerning: • Machine and accessory sales • Maintenance and loan contracts •...
-
Page 10: Main Accessories
Magnetic head support software reading system our whole team thank you for choosing technomark and wish you many good markings! ® Technomark North America 13626 poplar circle, suite 502 - conroe, tX 77304 tel: (936) 270-7180 or (888) 610-0151 / fax : (936) 230-5679 E-mail : info@technomark-inc.com...
