BDH Elkay 570A-1 Instruction Manual

Instruction Guide
–
OUTDOOR
ILLUMINATED
PIR TIMER
570A-1
3 wire

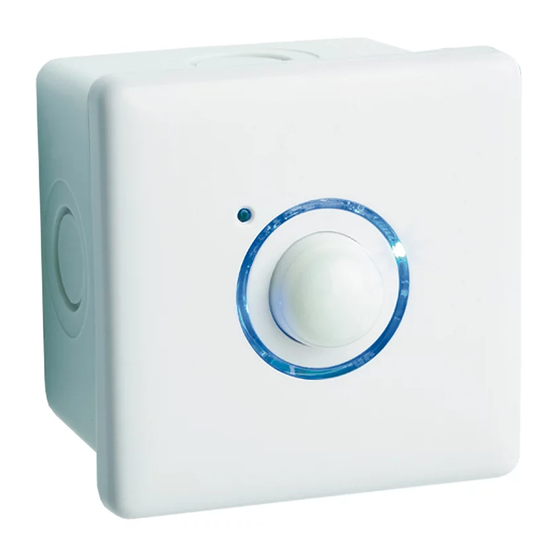

The Outdoor Illuminated PIR Timer
(3 wire) is part of the Elkay family of
switches, timers and detectors
which save energy and increase
convenience in and around your
home, garden or premises.
Rating at 240V ac
•
All load types 16A
• Time Delay: 2 min - 2 hrs
• Lux Level setting
• Blue Locator ring
•
Last minute indicator
•
IP66
Usage
The outdoor PIR timer has been designed
tocontrol lighting, heating and ventilation.
The unit is switched on by the detection
of moving body heat within a specifi ed
range. When body heat is no longer
detected, the unit will switch off after
the adjustable time period has elapsed.
If moving body heat is detected again
during the timing period, the timing
sequence will restart. The unit has a lux
level adjustment, which measures the
ambient light levels and prevents
lighting being switched on when there
is suffi cient light in the room.
Your Elkay PIR timer has the added benefi t
of a manual override facility. This allows
the lights to be turned on for the set
period of time when the ambient light
level is such that the lights would not
usually come on. In dark conditions the
manual override disables the PIR
allowing the lights to be turned off
indefi nitely or when the override switch
is re-pressed.
