BDH Elkay 376A-1 Instruction Manual

Instruction Guide
–
ILLUMINATED
PIR TIMER
376A-1
2 wire

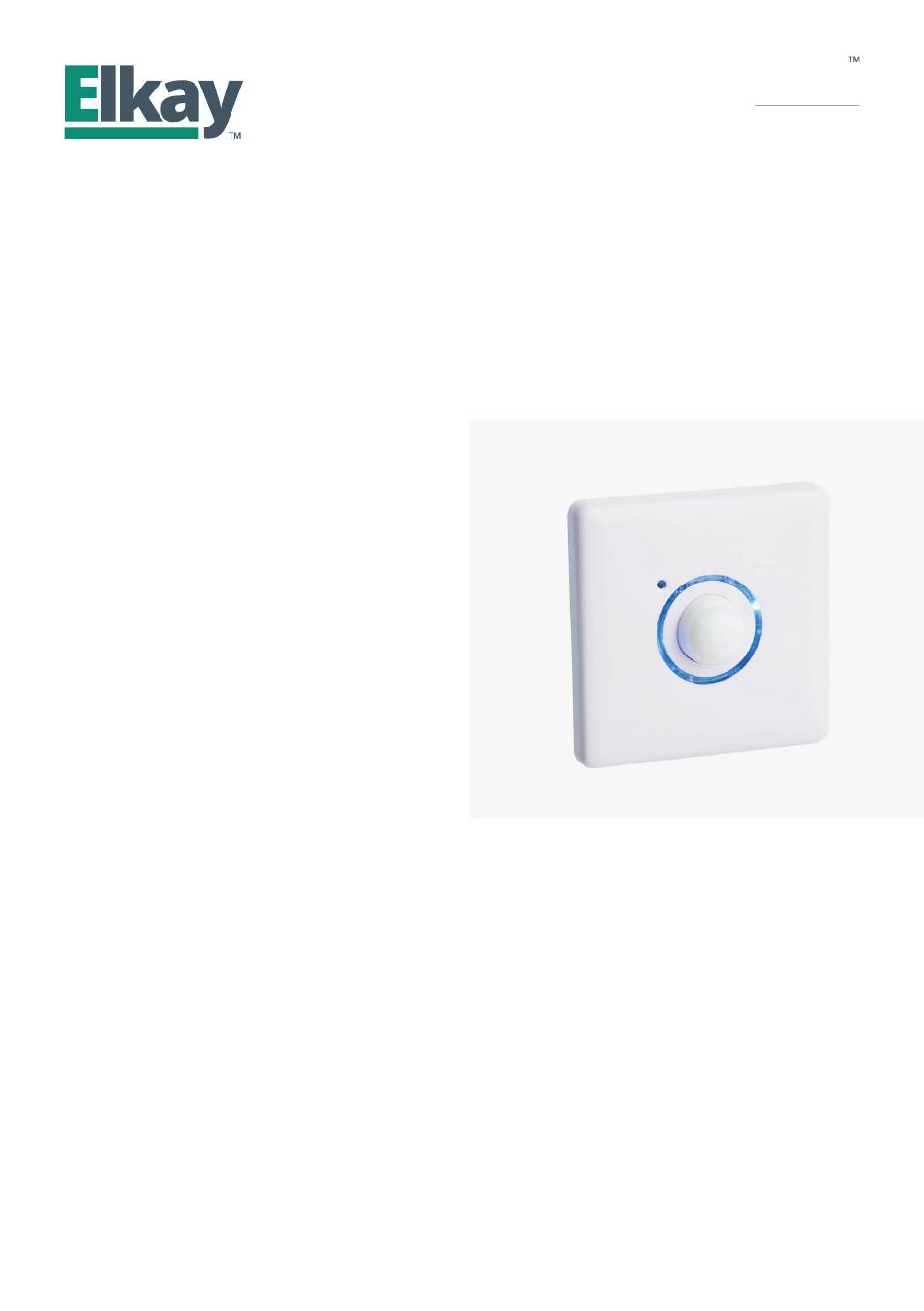

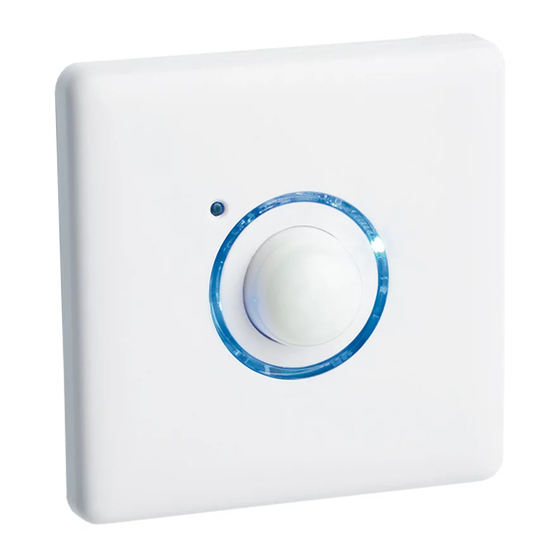

The Illuminated PIR Timer (2 wire)
is part of the Elkay family of switches,
timers and detectors which save
energy and increase convenience in
and around your home, garden
or premises.
Rating at 240V ac
•
All load types 16A
•
Time Delay: 2 min - 2 hrs
• Lux Level setting
• Blue Locator ring
• Last minute indicator
•
Fits 25mm back boxes
•
Override facility
• Single and multi way switching
Usage
The PIR timer has been designed to replace
a single gang light switch to control
lighting. The unit is switched on by the
detection of moving body heat within a
specifi c range. When body heat is
no longer detected, the unit will switch off
after the adjustable time period has
elapsed. If moving body heat is detected
again during the timing period, the timing
sequence will restart. The unit has a lux
level adjustment, which prevents lighting
being switched on when there is suffi cient
light levels in the room.
When used with some low wattage lighting,
such as LEDs please ensure a capacitor of
2 microfarads (min.) is fi tted. Supplies of
suitable elkay capacitors can be found at
your stockist (Product no. PFCC-1).
Do not use this PIR with contactors.
IMPORTANT
Please note that it is essential
that the live in and live out are identifi ed prior
to commencing the installation and steps
1 – 5 are followed precisely. No neutral is
required on this product (See diagram 1).
Do not install the switch timer with the mains
power on as this can damage the product.
