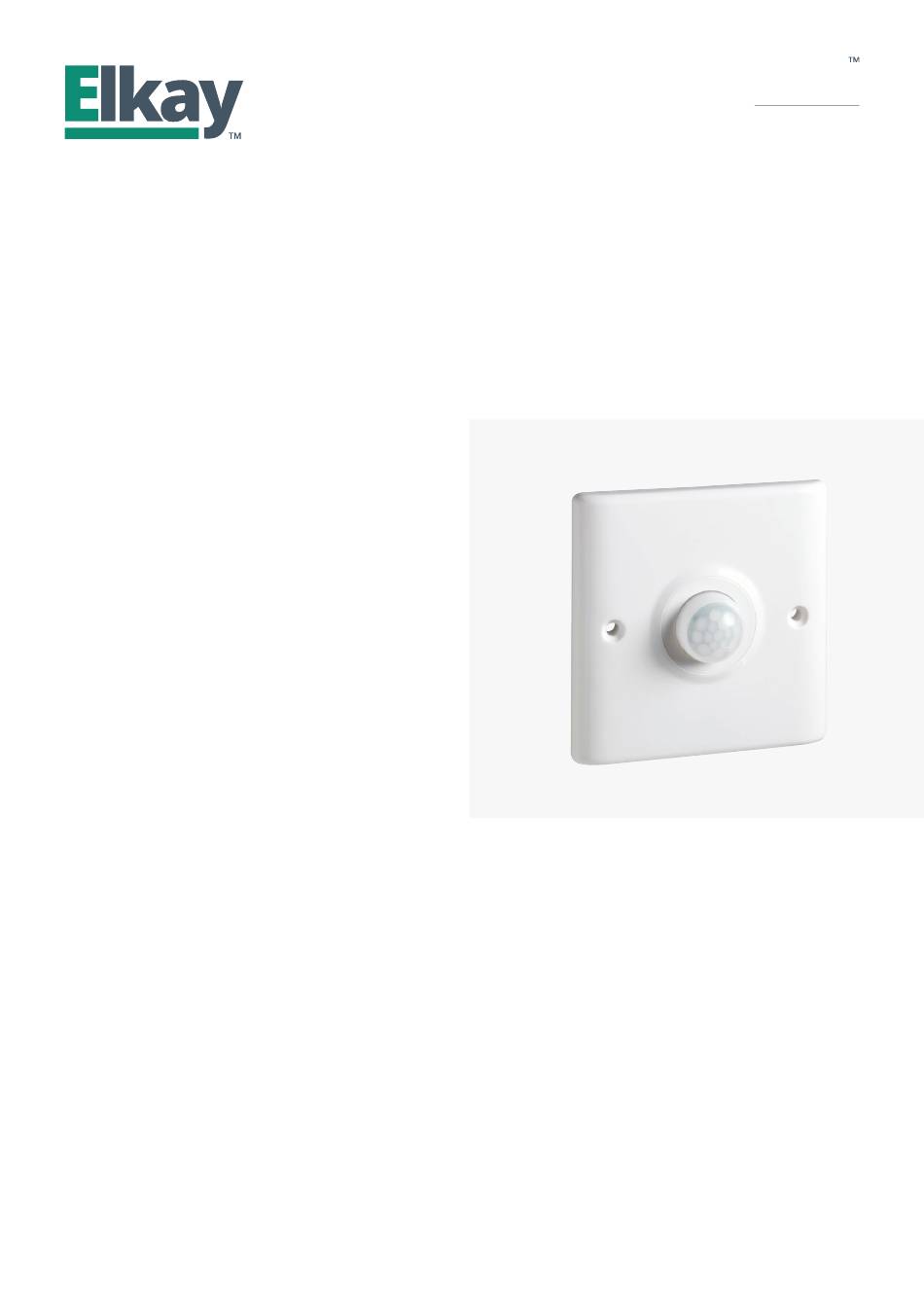

BDH Elkay 370B-1 Instruction Manual

Instruction Guide
–
STANDARD
PIR TIMER
370B-1
3 wire

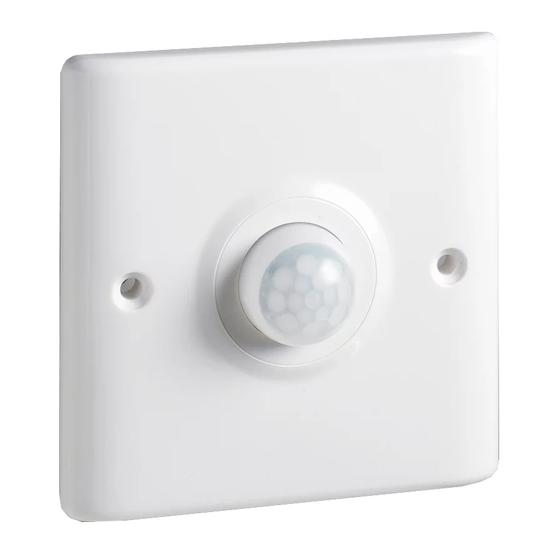

The Standard PIR Timer (3 wire)

is part of the Elkay family of switches,
timers and detectors which save
energy and increase convenience in
and around your home, garden
or premises.

Rating at 240V ac 50Hz

•
Time Delay: 2 min - 1 hour
•
All general load types 10A - Including
lighting loads that are LED, Compact
Fluorescent, Incandescent and Resistive
• This switch can also switch contactors
provided a capacitor is fitted across
the coil

Fitting and Operating Instructions

1. Prior to fitting ensure mains power is
switched OFF and Live In, Switch Live and
neutral wires are identified. Also where
applicable remove metal back box lugs
that are not being used.
2. For installation purposes, set the dip
switches for test mode as shown in
Timing Diagram and gently rotate the lux
pot anti-clockwise towards the plus (+).
3. Securely fit Live In, Live Out and Neutral
into the terminals marked Lin, Lout & N.
4. Turn mains power ON.
5. To test the PIR timer leave the area and
the load will switch OFF in approximately
60 seconds as long as no movement or
external sources are detected.
6. To test the timer re-enter the area and the
PIR Timer will detect movement and
trigger the load ON.
7. Select time delay required using Timing
Diagram and the lux level pot to desired
ambient light level required.
8. Ensure the timer is secured to the back box
securely. Do not press the PIR dome for
any reason.
9. A capacitor (PFCC-1) may be required when
switching low wattage or some LED lighting.
