BDH Elkay 3875A-1 Instruction Manual

Instruction Guide
–
PUSHBUTTON &
TOUCH SENSOR/
REMOTE TIMER
3875A-1 / 750A-2 / 2235-1 /
760A-2 / 320A-1
3 wire

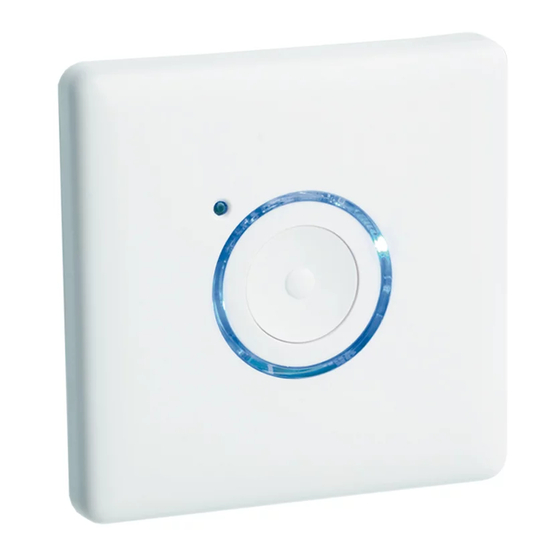

The Pushbutton & Touch Sensor /
Remote Timer (3 wire) are part of the
Elkay family of switches, timers and
detectors which save energy and
increase convenience in and around
your home, garden or premises.
Rating at 240V ac
• All general load types 16A
• Time Delay: 2 min - 2 hrs
• Blue locator ring
• Time cancellation functions
• Countdown LED
•
Fits 25mm back boxes
Usage
The Pushbutton & Touch sensor / Remote
Timer are general purpose time controls.
Appplications for suitable use include
lighting, heating and ventilation. Timers can
be used independently or as a master
when the using Activator trigger switches.
Mounting and Installation
IMPORTANT Please note that it is essential
that the Live In wire and switch Live Out is
identified prior to commencing installation.
Turn off mains supply installation.
Your Elkay unit is compatible with a single
gang, 25mm deep, British Standard
accessory plate. Please ensure that the top
and bottom lugs are removed, if fitted,
from metal wall boxes prior to fitting. Ensure
that there is adequate space for wiring.
Step 1 – Place the Live In wire into the left hand
position of the connector, the switched Live
Out wire into the second from left position of
the connector and neutral into right hand
position of connector (See diagram 1).
Step 2
– To set time, as per timing table, use
switches one through four. Depending
on required time available from 2 minutes to
2 hours, e.g. 10 minutes - switch one - OFF,
switch two - ON, switch three - OFF,
switch four - OFF (See diagram 2).
Step 3 – Re-apply mains supply. The blue
locator ring will light up around the
pushbutton / touch pad. Your light source or
appliance will now be switched off.
Please refer to operation section.
