SeaPerch Remotely Operated Vehicle Construction Manual page 36

ENHANCEMENT PROCEDURE 1.6 – ADDED CAPTURE NET & FRONT PAYLOAD NET STIFFENER
Procedure 1.6 – Continued
4. Trim off the ends of the tie wraps using flush wire-cutting pliers (not scissors,
which can leave very sharp ends that can easily scratch skin) as shown in
Figure 1.6-2.

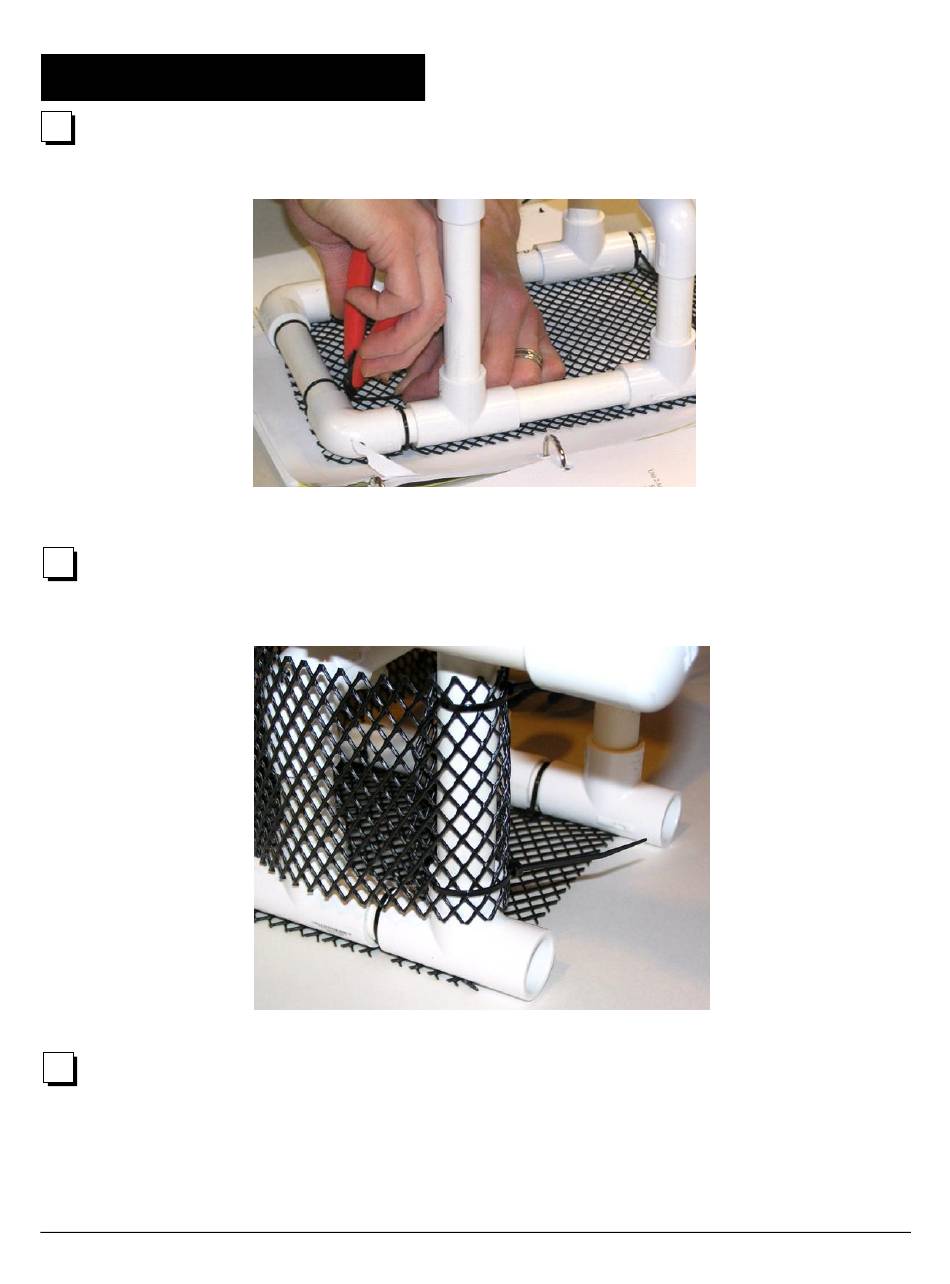

Figure 1.6-2: Payload Net Being Attached to the Bottom of Frame
5. Wrap one end of the "capture" net around the left front vertical post and attach it
with tie wraps in two places; be sure to pass the tie wraps through the net mesh
on both sides of the post as shown In Figure 1.6-3. Pull them tight, using pliers.
Figure 1.6-3: Capture Net Attached to the Left Front Vertical Post of Frame
6. Pass the capture net toward the rear of the vehicle frame, across and back up
along the right side. Attach the net to the other front post as above. Then secure
the sides of the capture net to the two vertical posts for the up / down thruster
mount, with one tie wrap in the center of each. The capture net should be
secured as shown in Figure 1.6-1.
SeaPerch ROV Construction Manual – Version 2010-04NW
1.6-2
