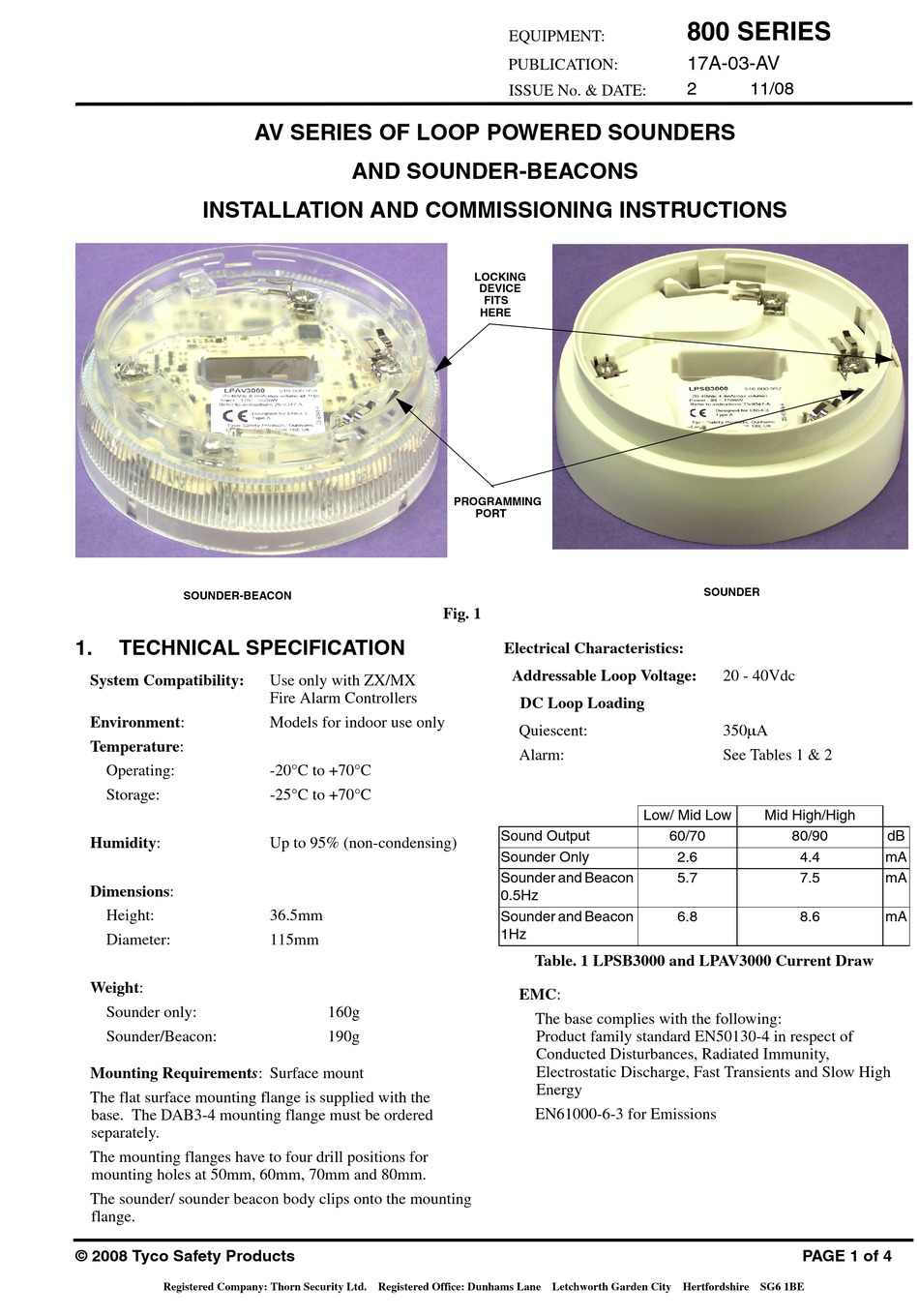

Tyco 800 Series Installation And Commissioning Instructions

INSTALLATION AND COMMISSIONING INSTRUCTIONS

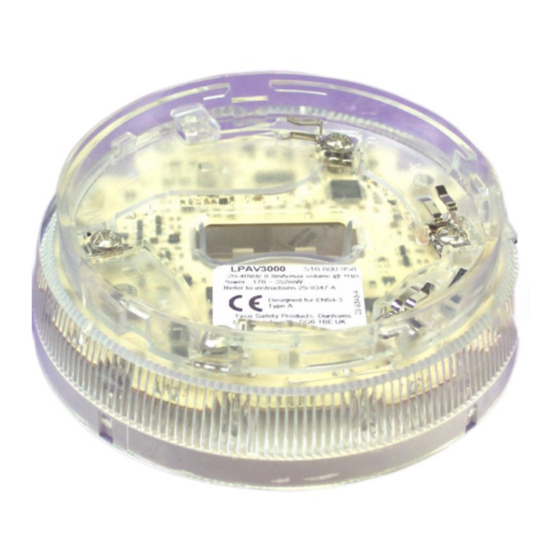

SOUNDER-BEACON
1. TECHNICAL SPECIFICATION
System Compatibility:
Environment:
Temperature:
Operating:
Storage:
Humidity:
Dimensions:
Height:
Diameter:
Weight:
Sounder only:
Sounder/Beacon:
Mounting Requirements: Surface mount
The flat surface mounting flange is supplied with the
base. The DAB3-4 mounting flange must be ordered
separately.
The mounting flanges have to four drill positions for
mounting holes at 50mm, 60mm, 70mm and 80mm.
The sounder/ sounder beacon body clips onto the mounting
flange.
© 2008 Tyco Safety Products
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
AV SERIES OF LOOP POWERED SOUNDERS
AND SOUNDER-BEACONS
Use only with ZX/MX
Fire Alarm Controllers
Models for indoor use only
-20°C to +70°C
-25°C to +70°C
Up to 95% (non-condensing)
36.5mm
115mm
160g
190g
EQUIPMENT:
PUBLICATION:
ISSUE No. & DATE:
LOCKING
DEVICE
FITS
HERE
PROGRAMMING
PORT
Fig. 1
Electrical Characteristics:
Addressable Loop Voltage:
DC Loop Loading
Quiescent:
Alarm:
Sound Output
Sounder Only
Sounder and Beacon
0.5Hz
Sounder and Beacon
1Hz
Table. 1 LPSB3000 and LPAV3000 Current Draw
EMC:
The base complies with the following:
Product family standard EN50130-4 in respect of
Conducted Disturbances, Radiated Immunity,
Electrostatic Discharge, Fast Transients and Slow High
Energy
EN61000-6-3 for Emissions
800 SERIES
17A-03-AV
2 11/08
SOUNDER
20 - 40Vdc
350μA
See Tables 1 & 2
Low/ Mid Low Mid High/High
60/70 80/90
2.6 4.4
5.7 7.5
6.8 8.6
PAGE 1 of 4
dB
mA
mA
mA
