Hussmann IMPACT IEDG1 Technical Data Sheet

We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part # Description
F A , T
AN SSEMBLIES AND HERMOSTATS
A.
Fan Assemblies
0392457 Fan Motor, Evaporator
115V, 4WSP, CW
(MO.4410101)
0409511 Fan Blade (FB.0409511)
embossing toward motor
6 ¾ Inch, 20°, CW
0404551 Fan Motor, Ambient
115V, 15W, CW (MO.0404551)
B. 0382028 Standard Non-adjustable
disc type Defrost Thermostat
(CT.0382028)
C. 0137880 Optional Adjustable
Refrigeration Thermostat
(CT.4481084)
Note: Changed items have been underlined.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
E
(Optional
Lights)
B
E
(Optional
Lights)

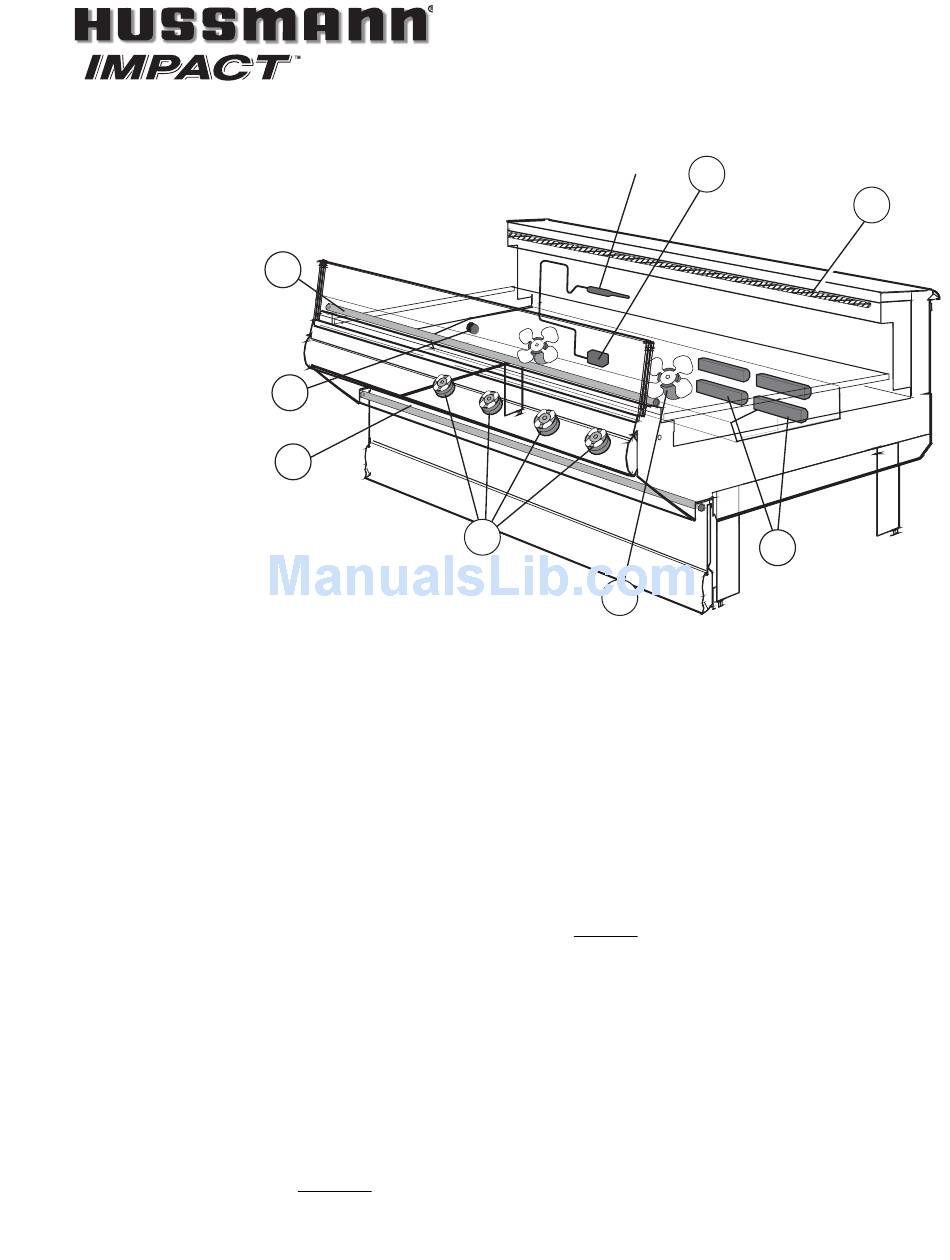

Wiring Item #
Technical Data Sheet
T'Stat Bulb
Location
A
A
Item Part #
L B
AMPS AND ALLASTS
D. 0355716
(1)
0355398
E.
F. 0496496
(2)
(3)
(4)
IEDG1
P/N 0431338_A
C
D
Description Wiring Item #
Ballast 2 lamps
Electronic 2-Lamp (BA.0355716)
Ballast 3 lamps
Electronic 3-Lamp (BA.4480118)
Fluorescent Lamp
Replace with like fixtures
Nosing Anti-sweat
Heater, 4 ft (HE.4850738)
P/N 0431338_A
July 2007
F
(5)
(6)
(7)
(8)
