Hussmann impact lnm merchandisers: data sheet

Advertisement

Quick Links

B
Item
Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS
A.

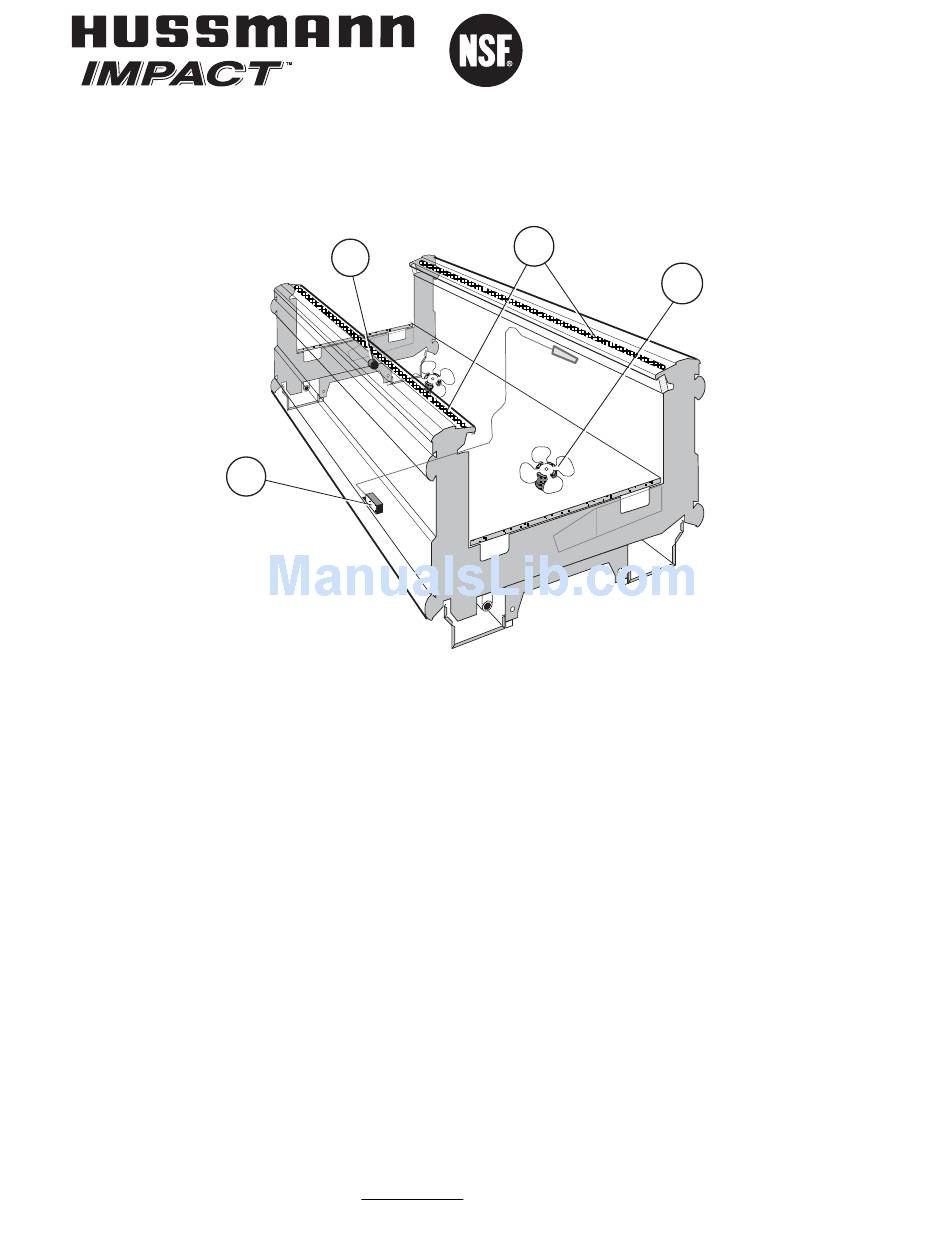

4W Fan Assembly
0392457
Fan Motor, Standard
0409511
Fan Blade, embossing toward motor
B.
Optional Adjustable Refrigeration Thermostat (2)
0144732 White Rodgers
0253451 Honeywell
C.
0382028
Defrost Termination Thermostat
Note: Changed items have been underlined.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
®
Merchandisers
C
Wiring Item #
D
Item
Part #
H
EATERS
(1)
D.
Nosing Anti-sweat Heaters
0401557
0401558
(3)
Data Sheet Set
P/N 0402761B
NSF
®
A
Description
Wiring Item #
8 foot case
12 foot case
P/N 0402761B
LNM
Certified
April 2005
(4)

Advertisement

loading
Need help?

Need help?

Do you have a question about the LNM and is the answer not in the manual?

Questions and answers

Summary of Contents for Hussmann LNM

  • Page 1 Fan Blade, embossing toward motor Optional Adjustable Refrigeration Thermostat (2) 0144732 White Rodgers 0253451 Honeywell 0382028 Defrost Termination Thermostat Note: Changed items have been underlined. HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. ® Wiring Item # Item Part # EATERS Nosing Anti-sweat Heaters...
  • Page 2: Plan Views

    Electrical Service Right end of case to center of nearest knockout: 5 Back O/S of case to center of knockout: 39 Note *: Electrical Field Wiring Connection Point HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 2 of 5 (2446) (2245) (1478)
  • Page 3 8 inches from the floor. NSF Certification These merchandisers are manufactured to meet ANSI /National Sanitation Foundation (NSF ® ) Standard #7 requirements. HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0402761B 04/13/98 (825) COIL (178) 4 (489) 3 /8 (824)
  • Page 4 Maximum Over Current Protection 230V 208V 1Φ Φ Electric Defrost 120V 60Hz Standard 230V 50Hz Export Standard Lighting: None HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 4 of 5 8 ft 12 ft Amperes 8 ft 12 ft 0.62 0.93 0.30 0.45...
  • Page 5 Thermostat All components must have mechanical ground, and the merchandiser must be grounded. Circled Numbers = Parts List Item Numbers Grayed components in 12 foot models only. HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0402761B Offtime Defrost – Standard Fans...

This manual is also suitable for:

Impact lnm
