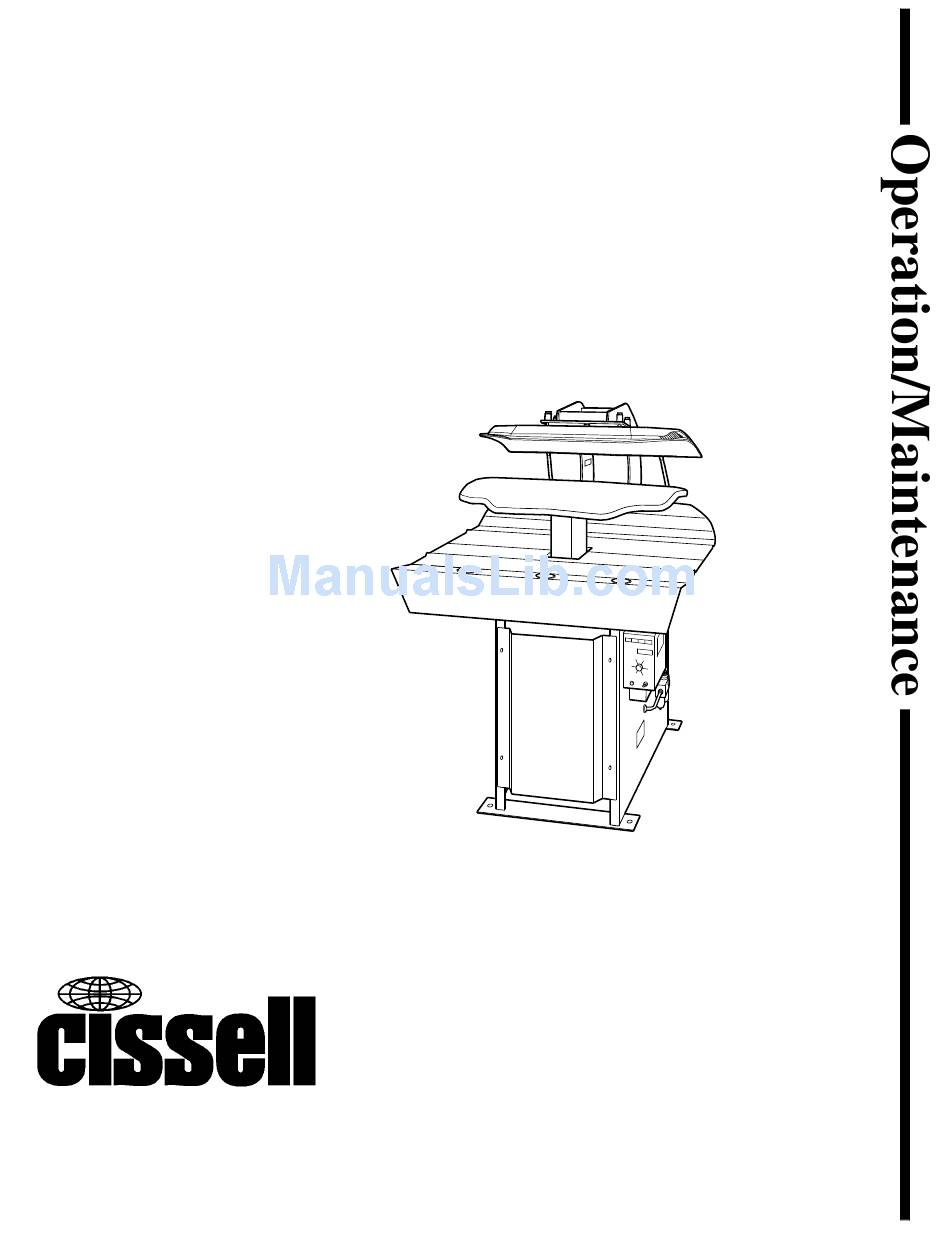

Mighty Mite and
Super Laundry
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
An LSG Company
831 South First Street, P.O. Box 32270
Louisville, KY 40232-2270
Phone: (502) 587-1292
Sales Fax: (502) 585-3625
Service/Parts Fax: (502) 681-1275
Refer to Page 3 for Model Numbers
Presses
www.cissellmfg.com
SCR1529C
SCR1529C
Part No. AJ1032
February 2005
Advertisement
Table of Contents
Related Manuals for Cissell AJ1032
Summary of Contents for Cissell AJ1032
- Page 1 (If this machine changes ownership, this manual must accompany machine.) An LSG Company 831 South First Street, P.O. Box 32270 Louisville, KY 40232-2270 Phone: (502) 587-1292 Sales Fax: (502) 585-3625 Service/Parts Fax: (502) 681-1275 Presses SCR1529C SCR1529C www.cissellmfg.com Part No. AJ1032 February 2005...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. AJ1032 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Model Identification ... - Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032...
-
Page 5: Model Identification
Model Identification Information in this manual is applicable to the following models: LDBB (CMMBB) LDCC (CMMCCY) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032... - Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032...
-
Page 7: Safety Information
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Important Safety Instructions Save These Instructions WARNING To reduce the risk of fire, electric shock,... - Page 8 • Shut off and lock out ALL electric power to the press. • Shut off and lock out ALL air service to the press. • Shut off and lock out ALL steam service to the press. • Allow heated surfaces to cool. WARNING W333 W358 W335 AJ1032...
-
Page 9: Introduction
Parts Ordering Information If literature or replacement parts are required, contact the source from which the machine was purchased or contact Cissell at (502) 587-1292 for the name and address of the nearest authorized parts distributor. General Description Press is an air operated, steam heated garment press. - Page 10 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032...
-
Page 11: Operation
NOTE: If EITHER CLOSE pushbutton is released BEFORE head is fully closed and pressing pressure is applied, head will return to a fully open position. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Operation To avoid possible serious injury, ALWAYS read and become familiar with operating instructions before operating press. -
Page 12: Pre-Operating Services
Proper time is best determined by experience. 4. Dress garment on buck. 5. Simultaneously push and hold both CLOSE pushbuttons (Items 1 and 6, Figure 2) until head closes and pressing pressure is applied. Release both pushbuttons. W341 AJ1032... -
Page 13: Post-Operating Services
6. Hang or fold pressed article as soon as possible to preserve finish. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Post-Operating Services Perform the following services after final operation of day or anytime press is not going to be used for an extended period of time. - Page 14 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032...
-
Page 15: Maintenance
• ALL maintenance, service, etc., MUST be performed ONLY by qualified service personnel. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Maintenance To avoid possible serious injury: • ALWAYS close air supply line shut-off valve AND lock out air service BEFORE:... -
Page 16: Cleaning Press Head
Replace labels which are damaged, missing or unreadable. Clean steam strainer if dirt is present. Clean customer-furnished steam traps if dirt is present. Tighten any loose connections. Replace lines where necessary. Replace steam hoses with broken braids. Tighten as required. WARNING W344 AJ1032... -
Page 17: Cleaning Air Filter
5. Open air service shut-off valve. 6. Check for leaks and adjust as necessary. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Cleaning Steam Strainer Strainer removes foreign matter from steam. Frequency at which strainer must be cleaned is dependent upon amount of foreign matter suspended in steam. -
Page 18: Lubrication
Fill bowl to 3/4 full when level drops below 1/4 full. Refer to Adjusting Air Line Lubricator Flow Rate. Remove air line at bottom of cylinder. Prime oil can and give one complete squeeze into air line. AJ1032... - Page 19 Maintenance SYMBOLS GREASE GUN OIL CAN B0159 INSPECTION AND LUBRICATION POINTS SCR102N Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032...
-
Page 20: Adjusting Air Line Lubricator Flow Rate
WILL result and void warranty. WARNING To avoid possible serious injury, ALWAYS close air supply line shut-off valve AND lock out air service BEFORE filling oil bowl. Air Filter Oil Fill Hole Downstream Relieving Shut-Off Valve Figure 4 W348 1631605B SCR103N AJ1032... -
Page 21: Quality Troubleshooting
* Customer-furnished © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT AJ1032 Cause Check by placing a piece of cotton flannel on buck and pressing garment again. If quality improves, replace padding.
