We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part #
Description
F
A
AN
SSEMBLIES

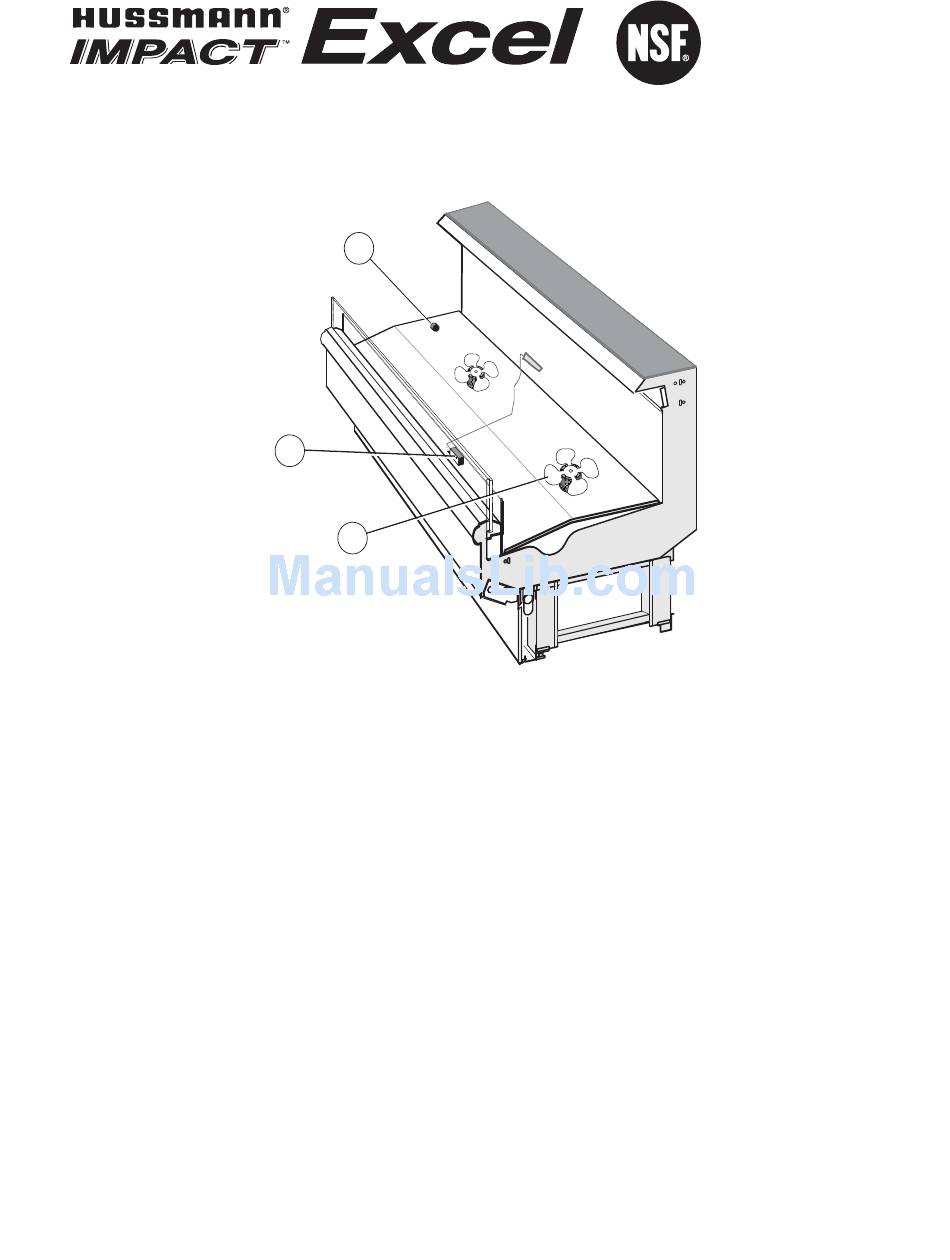

A. 4W Standard Fan Assembly
0392457
Fan Motor, Evaporator
(MO.4410101)
0464847
Fan Blade (FB.4780649)
4W Energy Efficient Fan Assembly
0477653
Fan Motor, Evaporator
(MO.4410544)
0464847
Fan Blade (FB.4780649)
Note: Rev. B updates capacity numbers on Page 5.
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
B
C
A
Wiring Item #
(1)
(1)
Item Part #
Description
T
HERMOSTATS
B. 0382028
Standard Non-adjustable
Defrost Thermostat
(CT.0382028)
C. Optional Adjustable Refrigeration Thermostat (3)
L
B
AMPS AND
ALLASTS
None
M1X-XGEC
Technical Data Sheet
P/N 0503709_B
NSF
®
Certified
April 2008
Wiring Item #
P/N 0503709_B
(2)
Advertisement
Table of Contents
Related Manuals for Hussmann M1X-XGEC
Summary of Contents for Hussmann M1X-XGEC
- Page 1 (MO.4410544) 0464847 Fan Blade (FB.4780649) Note: Rev. B updates capacity numbers on Page 5. ©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM Wiring Item # Item Part # HERMOSTATS B. 0382028 C.
- Page 2 Refrigeration Outlet Back of case to center of refrigeration outlet RH end of case to center of refrigeration outlet 2 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. PHYSICAL DATA Merchandiser Drip Pipe (in.) Merchandiser Liquid Line (in.) Merchandiser Suction Line (in.)
- Page 3 NSF Certification This merchandiser model is manufactured to meet ANSI/NSF (National Sanitation Foundation) Standard #7 requirements for construction, materials & cleanability. P/N 0503709_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM 3 In. (77 mm) Required Air Gap (292)
- Page 4 60Hz Energy Efficient 230V 60Hz Energy Efficient Maximum Over Current Protection 120V Maximum Over Current Protection 230V 4 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 4 ft 6 ft 8 ft 12 ft Amperes 4 ft 6 ft 8 ft 12 ft 0.31...
- Page 5 ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft Computed using ARI 1200 standard methodology: Total Display Area, ft Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product Reference Guide. The standard shelf complement for this model is...
