Summary of Contents for Canam Hoops Flextreme Silver 54

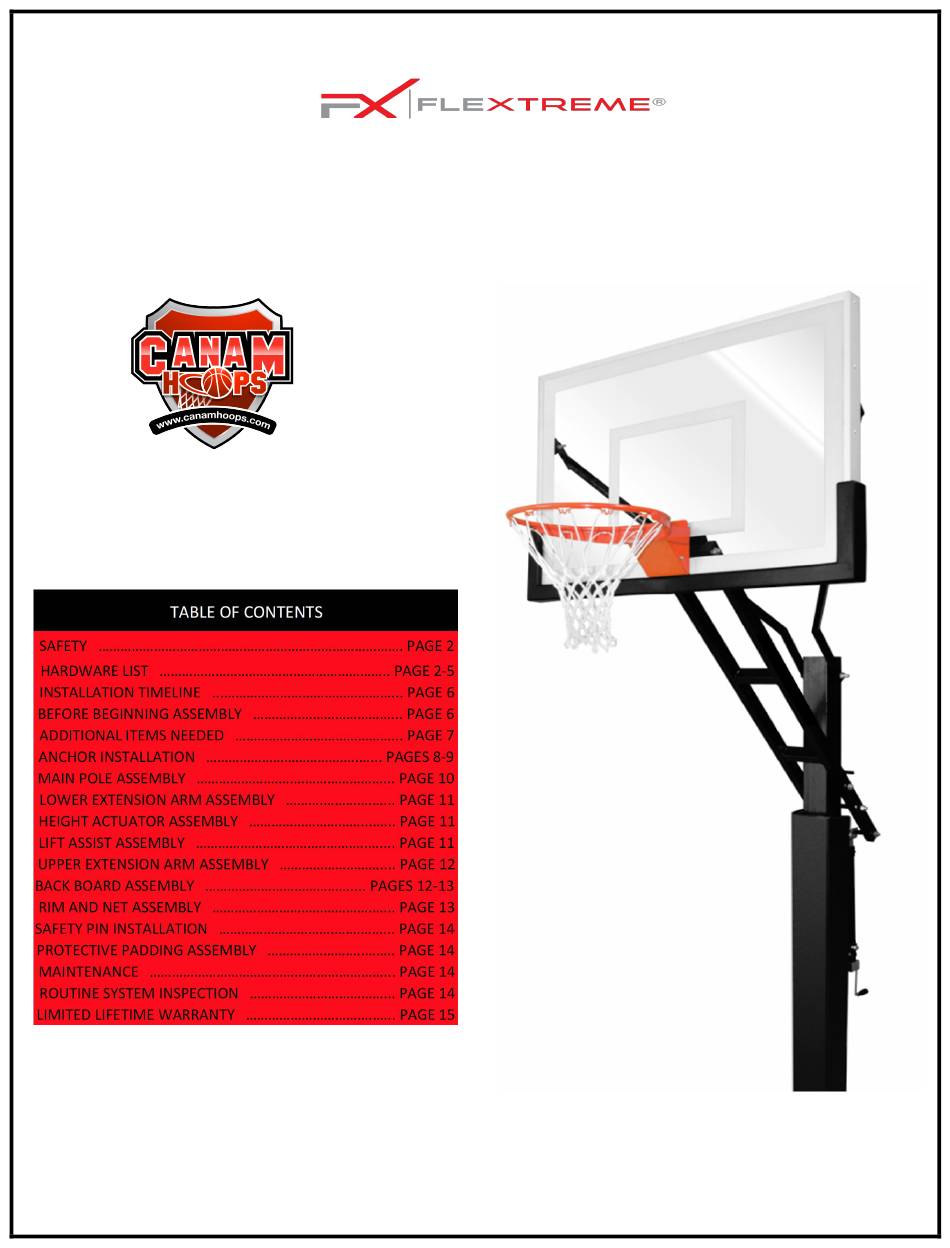

  • Page 1 Silver 54   Installation Instructions Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 2: Safety Instructions

    : utilities are a safe distance away from the anchor www.canamhoops.com system.  Make sure there are no overhead power lines within a 20 foot radius of the basketball system.  All parts and components necessary to complete proper installation are included within this product. Do not use parts not included with our system. Failure to follow this requirement could cause product malfunction and will void warranty of this product.  Keep all organic materials away from parts and components to avoid corrosion.    Hoop. Please use caution when performing  this  Do not climb on any part of the basketball system as it was not intended for this activity.  Do not use the basketball system as a lift or to hoist anything 2  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 3: Hardware List

    (4 pieces - Rim Kit) (2 pieces - Rim Kit) 10mm Hex Bolt 10mm Lock Washer (4 pieces - Rim Kit) 10mm Flat Washer (4 pieces - Rim Kit) (8 pieces - Rim Kit) Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 4 HARDWARE LIST C, D, E, G Rubber Gasket for Rim Attachment 10” Safety Pin J Bolt Rebar (4 Pieces) (4 Pieces) Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 5 16mm Hex Nut (4 pieces) (17 pieces) 14mm Flat Washer 16mm Flat Washer (8 pieces) (18 pieces) 14mm Plastic Washer 16mm Plastic Washer (8 pieces) (10 pieces) 16mm Lock Washer (4 pieces) Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 6 The  bask etball system m will be a  system.)  permane nt structured d once installe ed.      Overhang g – distance fr rom front of p pole to front  The playi ng surface m ust be free of f any hazards s  of backbo oard when adj justed to 10’  or obstru uctions.   6  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 7 Post Hole Digger  (6) Stakes to secure form boards     Shovel  Hammer and nails     Wheel Barrow  Level    Concrete Mixer (optional)  Tape Measure    (15‐17) 80 lbs. bags of concrete or                  (2) Large Crescent Wrenches   (20‐23) 60 lbs. bag of concrete  17mm wrench    Garden Hose  16mm deep socket   2”x4” lumber        7  Version 2.0 CANAM HOOPS © all rights reserved.  ...
  • Page 8 Use 2” x 4 4” lumber or c cardboard fo rms to form  top of t the finished c concrete.  the t op of the hol e for finished d aesthetics. T The top edge  of    the f orm boards s should be leve el with the pl aying surface e.  The (4) nuts s (J) on the bo ottom of the  anchor plate    will for rever be place ed in the conc crete.  8  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 9                         Use a tape measure to verify that the anchor is  square to the playing surface.        Use a level to verify that anchor plate is level from    front to back and side to side.                        Allow the concrete to cure for a minimum of 3 Days.    9  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 10 Install (4)  metal washe ers(N) on top  of anchor bo lts  and i install main p pole as shown n in diagram w with (2) gusse ets  facin g towards pla aying surface .  Place (4) m etal washers  (N) o on top of base e plate follow wed by (4) lock k washers (U) )  and ( (4) nuts (J) an nd tighten.  M Make sure tha t base plate i is  squa re to playing g surface.  10  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 11     4.  Lift Assist and Height Indicator  Assembly  Place (1) spring cartridge behind main pole and  install upper bolt (D) with (1) metal washer (N), and (1)  plastic washer (R) through first side of lower extension  arm.       3. Height Actuator Assembly    After the clear height indicator is in place, push  Place height actuator behind main pole and install top bolt  upper bolt (D) through (1) spring cartridge and the other  (C), metal washers (N), plastic washers (R) and nut (J) as  side of the lower extension arm.    Install (1) plastic washer  shown in diagram.  Rotate handle to lengthen the actuator  (N) and (1) metal washer (R) followed by nut (J).  to point where the lower holes are properly aligned with    the holes on the welded extension plate on back of pole.   Align bottom holes of spring cartridge with  Install bottom bolt (A), metal washers (M), plastic washers  designated holes on extension plate.   (Q) and nut (I).    11  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 12 Install lower bolt (B) with (1) metal washer (M) washer (R) through hole as shown in diagram.  Once the  and (1) plastic washer (Q) through hole as shown in bolt is through the main pole, install the other upper  diagram.  Once the bolt is through spring cartridge, install extension arm with (1) plastic washer (R) and (1) metal  (1) plastic washer (Q) and (1) metal washer (M) followed washer (N) followed by nut (J).   by nut (I). 6. Backboard Assembly Raise backboard so front of backboard is facing the playing surface as shown in diagram.  Align the holes behind the rim with the holes at the end of the lower extension arms.    Install bolt (G) with (1) metal washer (N) and (1) plastic washer (R) through designated holes.  Once the bolt is through backboard frame and lower extension arms, install (1) plastic washer (R) and (1) metal washer 5. Upper Extension Arms Assembly (N) followed by nut (J).  Do not fully tighten nut until instructed to do so later in the installation process. Raise front of backboard to be perpendicular to playing surface.  Align Upper Extension Arms with Upper Backboard Attachments and install bolts (H), metal (1) Upper Extension Arm with upper hole in main pole. washers (M), plastic washers (Q), and nuts (I) as shown in Install bolt (F) with (1) metal washer (N) and (1) plastic 12  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 13 Install Rim Plate on base of rim with (2) machine screws and tighten. Install net on rim by twisting net loops 90 degrees clockwise and inserting through designated rim attachments and over hooks on the underside of rim. 8. Remove Spacer from Spring Cartridge Remove (1) blue plastic spacer from spring cartridge at  this time. 7. Rim and Net Assembly Install (4) bolts with metal washers through holes in rim plate and place rubber gasket on back side of rim plate.  Lift this assembly and place bolts through the four designated holes on the backboard.  On the opposite side of the backboard install (4) plastic washers, (4) metal washers, (4) lock washers, and (4) nuts as shown in diagram.  Check rim for level and tighten all four nuts. 13  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 14   If you see any signs of rust on the system remove  the loose paint, gently sand the area, and apply outdoor  enamel gloss paint to the affected area.    12.   Routine System Inspection  Before each use inspect the basketball system for any  signs of the following:     Loose nuts and bolts   All parts and components for excessive wear and  tear     Any signs of rust or corrosion  Install gusset pad over base of pole as shown in    diagram and connect Velcro straps in rear to secure pad.    Install pole pad by mounting to pole directly on  top of the gusset pad.  Connect Velcro straps in rear to  secure pole pad.      14  Version 2.0 CANAM HOOPS © all rights reserved.
  • Page 15 Product or component parts must be delivered in either its original carton or a similar package affording an equal degree of protection. Canam Hoops will not be responsible for any loss or damage incurred in connection with the return of this Product or component parts.
