Galvo Shed GVO1508 Quick Start Manual

GVO1508
Page 1 -

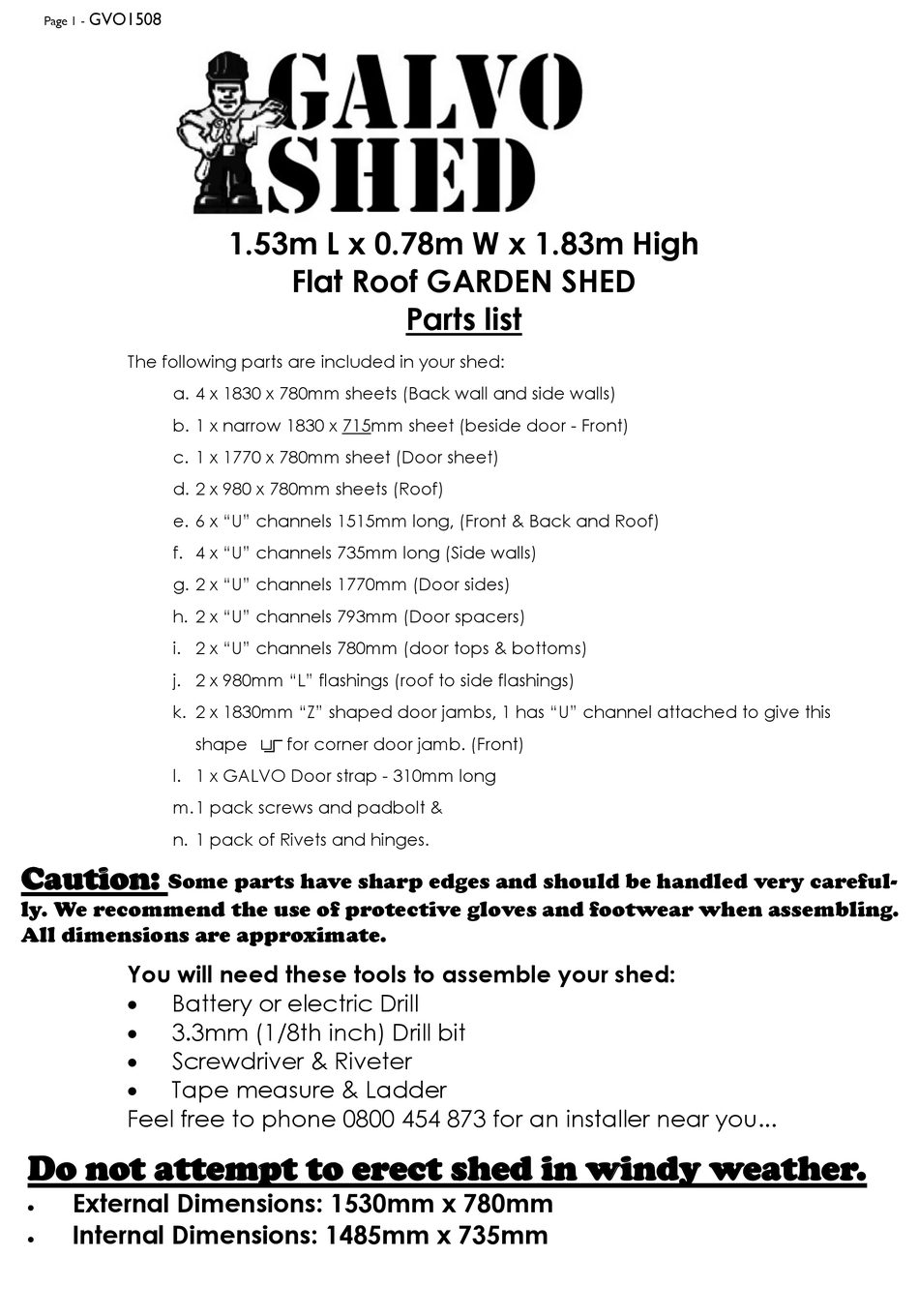

The following parts are included in your shed:
a. 4 x 1830 x 780mm sheets (Back wall and side walls)
b. 1 x narrow 1830 x 715mm sheet (beside door - Front)
c. 1 x 1770 x 780mm sheet (Door sheet)
d. 2 x 980 x 780mm sheets (Roof)
e. 6 x "U" channels 1515mm long, (Front & Back and Roof)
f. 4 x "U" channels 735mm long (Side walls)
g. 2 x "U" channels 1770mm (Door sides)
h. 2 x "U" channels 793mm (Door spacers)
i. 2 x "U" channels 780mm (door tops & bottoms)
j. 2 x 980mm "L" flashings (roof to side flashings)
k. 2 x 1830mm "Z" shaped door jambs, 1 has "U" channel attached to give this
l. 1 x GALVO Door strap - 310mm long
m. 1 pack screws and padbolt &
n. 1 pack of Rivets and hinges.
Caution:
Some parts have sharp edges and should be handled very careful-
ly. We recommend the use of protective gloves and footwear when assembling.
All dimensions are approximate.
You will need these tools to assemble your shed:
Battery or electric Drill

3.3mm (1/8th inch) Drill bit

Screwdriver & Riveter

Tape measure & Ladder

Feel free to phone 0800 454 873 for an installer near you...
Do not attempt to erect shed in windy weather.
External Dimensions: 1530mm x 780mm

Internal Dimensions: 1485mm x 735mm

1.53m L x 0.78m W x 1.83m High

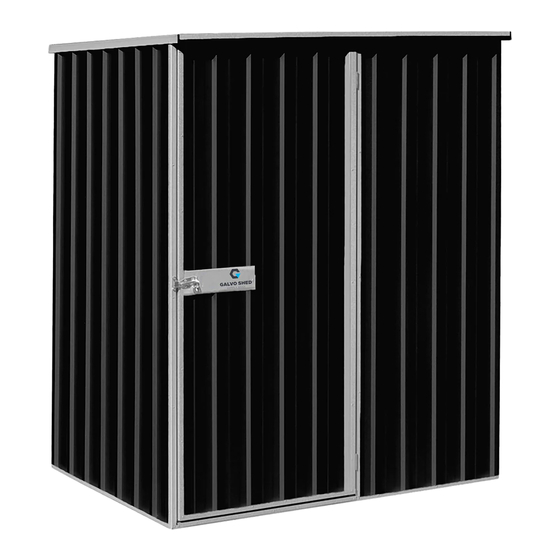

Flat Roof GARDEN SHED
shape for corner door jamb. (Front)

Parts list

If you feel a little anxious about
erecting your shed. Please phone
0800 ENZEMBLE (369 362) for full
assembly service.
GVO1508
