ASSEMBLY
INSTRUCTIONS
YOU SHOULD HAVE TWO PACKAGES:
•
1 cardboard package
•
1 channel pack
TOOLS REQUIRED:
•
Battery or electric drill
•
3.3mm (1/8th inch) drill bit
•
Screwdriver or riveter
•
Tape measure
•
Ladder
•
Non-slip gloves, good
shoes and goggles
•
A set of helping hands
Some parts have sharp edges and should
be handled very carefully. We recommend
the use of protective gloves and footwear
when assembling.
DO NOT attempt to erect this shed in windy
weather. All dimensions are approximate.

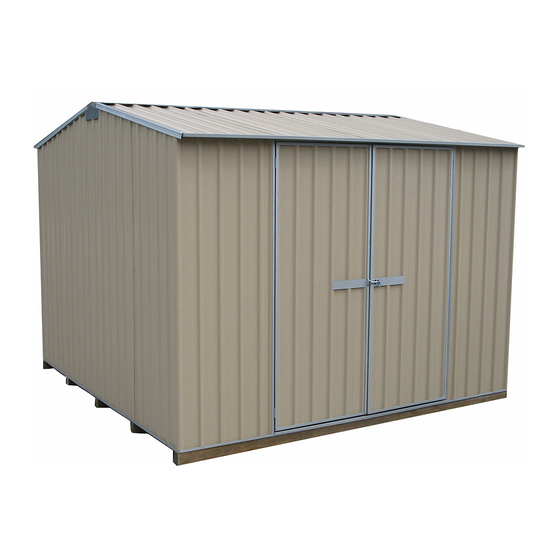

GVO 3030
GABLE ROOF SHED
3030mm wide x 3030mm deep x 1830-2090mm high
PACKED BY:
Please quote this code for any
correspondence back to the supplier
CALL 0508 454 873
for an installer near you

Advertisement

loading

Related Manuals for Galvo Shed GVO 3030

Summary of Contents for Galvo Shed GVO 3030

  • Page 1 GVO 3030 GABLE ROOF SHED 3030mm wide x 3030mm deep x 1830-2090mm high ASSEMBLY PACKED BY: INSTRUCTIONS YOU SHOULD HAVE TWO PACKAGES: • 1 cardboard package • 1 channel pack Please quote this code for any TOOLS REQUIRED: correspondence back to the supplier •...

  • Page 2: Components Checklist

    COMPONENTS CHECKLIST Please check all components carefully and advise your supplier immediately if any discrepancies. Remember to quote the code on the front page. 2 x 1770 x 780mm door sheets 2 x narrow 1830 x 715mm sheets 4 x 1830 x 780mm (back wall) 8 x 1600mm x 780mm sheets (roof) (beside door) 4 x 3000mm 'U' channels with...

  • Page 3: Door Assembly

    STEP 1 DOOR ASSEMBLY YOU WILL NEED 2 x 1770mm x 780mm door sheets Attach the 780mm 'U' channels to the top and bottom of the door sheet at the 4 x 1770mm 'U' channels centre ribs only. Attach the 1770mm 'U' channels to the door sheet through the 4 x 780mm 'U' channels...

  • Page 4: Front Wall

    STEP 3 FRONT WALL YOU WILL NEED 2 x 3000mm 'U' channels with ends cut Lay down the doors with the sheets attached. Cap the sheets with the 3000mm 2 x 1586mm door spacers channels . Use the door spacers to make sure the door fits the gap (they sit 3 x padbolts on top of the 'Z' door jambs...
  • Page 5 STEP 4 BACK WALL YOU WILL NEED 4 x 1830mm x 780mm sheets Join the 4 sheets together with 2 fixings through the overlapping ribs, making 2 x 3000mm 'U' channels with ends cut sure the ends of the sheets are flush. Cap the sheeting with the 3000mm 'U' channels Fix the channels through the end ribs and every second rib in between.
  • Page 6 STEP 6 END WALLS YOU WILL NEED 4 x 1960mm angle cut sheets & 2 x Join 3 sheets together to create a gable end wall as shown. Make a cut in the 2025mm gable cut sheets (end walls) centre (1145mm) of the 2290mm top channel and cap the three sheets.

  • Page 7: Step 8 Installation

    STEP 8 INSTALLATION BUILDING YOUR SHED SIDE WALL ASSEMBLY • Stand up the back wall and as your helping hand is holding it up, bring the left end wall The basic task is to join the sheets in to meet it at the left corner (diagram 1) overlapping the corners (diagram 2). Drill and fix together to form your panels, and fix at approximately 100mm down from the top and up from the bottom, drilling and fixing channels to the top and bottom of...
  • Page 8 e.g.
