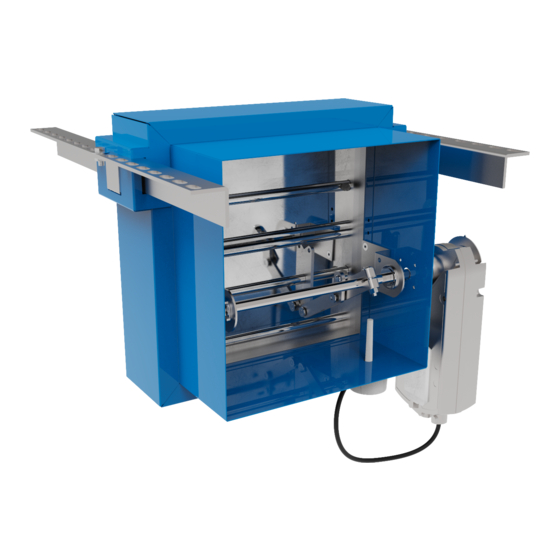

AIR CONTROL
MODEL 2530
FIRE & SMOKE DAMPER
INSTALLATION, OPERATION
AND MAINTENANCE MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2530 and is the answer not in the manual?

Questions and answers

Related Manuals for Advanced Air 2530

Summary of Contents for Advanced Air 2530

  • Page 1 AIR CONTROL MODEL 2530 FIRE & SMOKE DAMPER INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
  • Page 2 Index Page Introduction and Health & Safety Fire & Smoke damper – Model 2530 Two hour flexible wall – AFS with drop rods one side Two hour flexible wall – AFS with drop rods two sides Two hour flexible wall – multi-section AFS with drop rods two sides Two hour rigid wall –...
  • Page 3 Introduction Advanced Air (UK) Ltd have been manufacturing a comprehensive range of fire dampers and fire smoke dampers since 1975. We have always taken pride in our products and tested to the highest standards, originally to BS476 and now more stringent testing to CE labelling under the Construction Product Regulation which was introduced 1st July 2013.
  • Page 4 FIRE & SMOKE – 2530 ADJUSTABLE FRAME SYSTEM FOR TWO HOUR FLEXIBLE SUPPORTING CONSTRUCTION (SUPPORT ONE SIDE) Preparation Nom. duct size Width Height Opening Opening Opening Opening Ensure that the damper is kept min. max. min. max. in a clean dry environment and 200mm x 200mm Nom.
  • Page 5 FIRE & SMOKE – 2530 ADJUSTABLE FRAME SYSTEM FOR TWO HOUR FLEXIBLE SUPPORTING CONSTRUCTION (SUPPORT TWO SIDES) Preparation Nom. duct size Width Height Opening Opening Opening Opening Ensure that the damper is kept min. max. min. max. in a clean dry environment and 200mm x 200mm Nom.
  • Page 6 FIRE & SMOKE – 2530 MULTI-SECTION ADJUSTABLE FRAME SYSTEM FOR FLEXIBLE SUPPORTING CONSTRUCTION (SUPPORT TWO SIDES) Preparation Nom. duct size Width Height AFS bracket, Opening Opening Opening Opening Ensure that the damper is kept bracket slot, min. max. min. max.
  • Page 7 FIRE & SMOKE – 2530 ADJUSTABLE FRAME SYSTEM FOR TWO HOUR RIGID SUPPORTING CONSTRUCTION (SUPPORT ONE SIDE) Preparation Nom. duct size Width Height Opening Opening Opening Opening Ensure that the damper is kept min. max. min. max. in a clean dry environment and 200mm x 200mm Nom.
  • Page 8 FIRE & SMOKE – 2530 ADJUSTABLE FRAME SYSTEM FOR TWO HOUR RIGID SUPPORTING CONSTRUCTION (SUPPORT TWO SIDES) Preparation Nom. duct size Width Height Opening Opening Opening Opening Ensure that the damper is kept min. max. min. max. in a clean dry environment and 200mm x 200mm Nom.
  • Page 9 FIRE & SMOKE – 2530 HEVAC FOR RIGID SUPPORTING CONSTRUCTION (WALL) Preparing the opening Opening width / Opening width / Nom. duct 150mm thick two hour rated height min. height max. Ensure that the damper is kept rigid construction to...
  • Page 10 FIRE & SMOKE – 2530 TWO HOUR REMOTE FROM WALL Preparation Work out the opening size to be cut 120mm larger than the nominal duct width/height, at a tolerance of ±5mm (for example a 1,000 x 1,000mm duct requires a 1,120 x 1,120mm opening).
  • Page 11 FIRE & SMOKE – 2530 ADJUSTABLE FRAME SYSTEM FOR RIGID SUPPORTING CONSTRUCTION (FLOOR) Preparation Nom. duct size Width Height Opening Opening Opening Opening Ensure that the damper is kept min. max. min. max. in a clean dry environment and 200 x 200mm Nom.
  • Page 12 FIRE & SMOKE – 2530 HEVAC FOR RIGID SUPPORTING CONSTRUCTION (FLOOR) Preparing the opening Opening width / Opening width / Nom. duct height min. height max. Ensure that the damper is kept 200 x 200mm in a clean dry environment and Nom.

  • Page 13: Maintenance

    The 2530 damper should only be commissioned once it is fully installed and connected to electrical power. 2530 dampers are installed as a life safety product and it is essential that they are always maintained so they The damper installation should be inspected thoroughly to ensure that it is clean and free of any internal are in a good, clean working condition.
  • Page 14 WIRING INSTRUCTIONS – 2530 Wiring detail for dampers fitted with spring return actuators AA230TS18 or AA24TS18.
