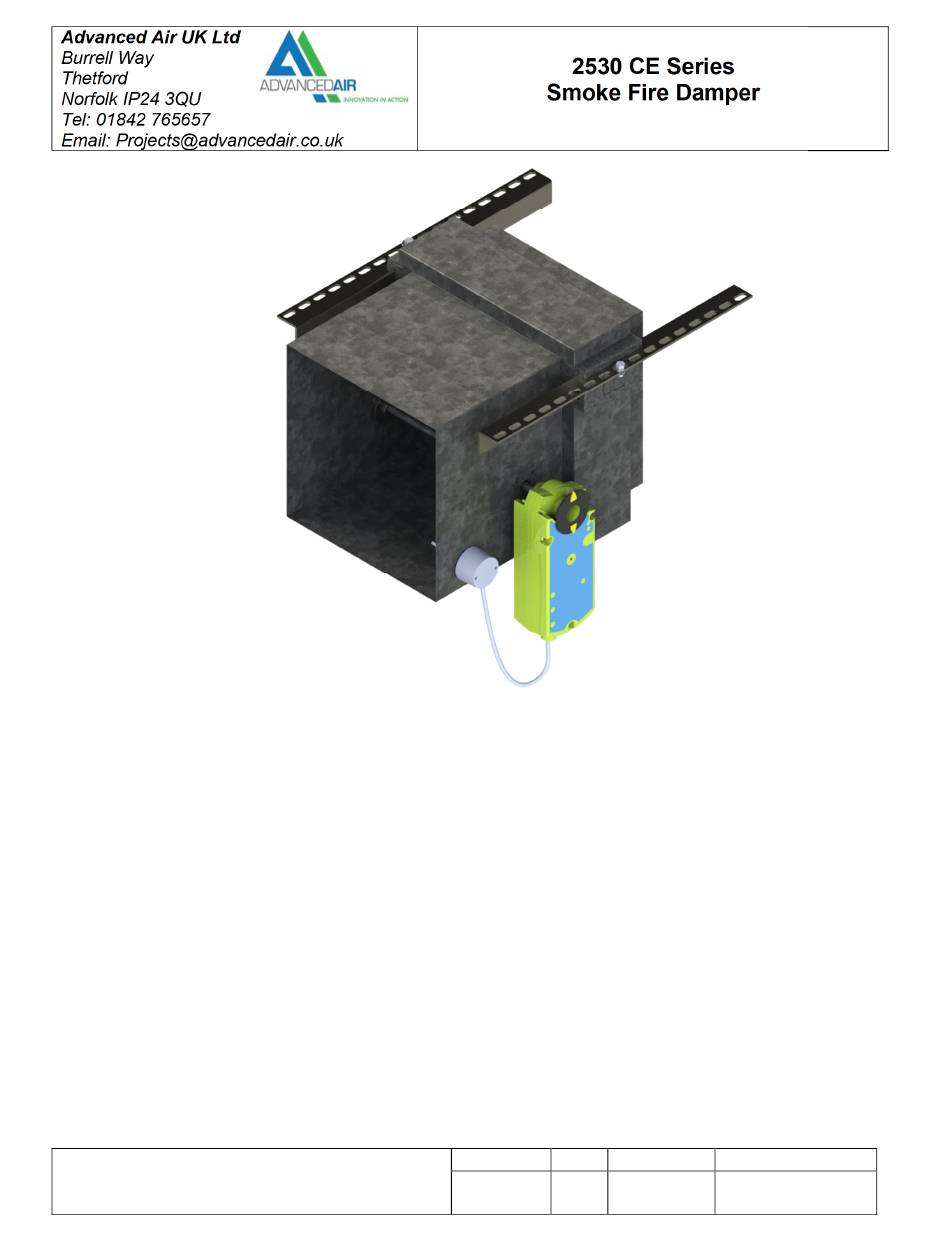

Advanced Air UK Ltd
Burrell Way
2530 CE Series
Thetford
Smoke Fire Damper
Norfolk IP24 3QU
Tel: 01842 765657
Email: Projects@advancedair.co.uk
General Description

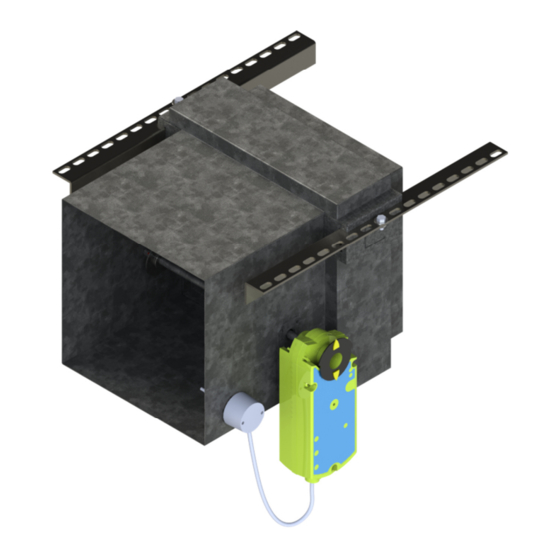

The model 2530 is designed to prevent the spread of fire and smoke through ventilation ductwork in walls and
floors. When the power to the damper actuator is removed, the actuator spring is released, which closes the
damper.
Advanced Air 2530 dampers are tested to BS EN 1366-2, BS EN15650 and BS ISO 10294-4. They are then classified
to BS EN 13501-3 so that the performance can be certified.
The damper is supplied complete with an actuator pre-wired with flying leads for electrical connection. A test
button is also included for checking the actuator operation. The dampers are supplied with long spigots for
installing access doors (optional).
Due to continuous product development Advanced
Date
Issue
Sheet
Spec Number
(U.K.) Ltd reserves the right to change any
April 2018
C
1 of 34
TS2530CE-01
information without prior notice
G:\PRODUCTS\DMP - 2500 Series\05 Product Data\2530\Tech Sub\2530CE\TS2530CE-01 Technical Sub Rev C.docx

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2530 CE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advanced Air 2530 CE Series

Summary of Contents for Advanced Air 2530 CE Series

  • Page 1 When the power to the damper actuator is removed, the actuator spring is released, which closes the damper. Advanced Air 2530 dampers are tested to BS EN 1366-2, BS EN15650 and BS ISO 10294-4. They are then classified to BS EN 13501-3 so that the performance can be certified.

  • Page 2: Product Details

    Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Product Details Blades Opposed blades, double skinned Width 136mm standard Centres 125mm Material 1.0mm Galvanised Mild Steel – Standard 1.0mm Grade 430 Stainless Steel - Optional...
  • Page 3 As standard, all dampers shall be shipped as single section up a nominal duct size of 1000mm x1000mm.Dampers larger than this will be shipped as a multi-section damper fixed together at Advanced Air and shipped as one piece. Dampers larger than 2050mm wide or 2050mm high will be split and shipped as separate pieces, each piece being no larger than a duct size of 2050mm x 2050mm.
  • Page 4 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Product coding table Variable Code Description Mounting Type Options AFFL Adjustable frame system for floor mounting AFWA Adjustable frame system for wall mounting...
  • Page 5 2 sections high they are produced as separate spigotted dampers and joined in our factory using joining strips. Where dampers are too large to be shipped as one piece Advanced Air will supply the joining stips for use on site.
  • Page 6 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Mounting type options HVF - HEVAC Installation Frame The installation frame is factory fitted to its respective fire damper and the assembly is delivered to site as one unit.
  • Page 7 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk AFFL and AFWA - AFS (Adjustable Frame System) The adjustable frame system consists of brackets mounted to the sides of the damper, these can be used to support the damper’s weight on two angled bars with slotted holes for mounting.
  • Page 8 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Actuator options and Drive position Drive location LH and RH Right handed damper (RH) - Default Left handed damper (LH)
  • Page 9 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Drive location COMB – Drive External outer and bottom centre On a multi-section damper only; this signifies that the outer dampers will have actuators on the sides and the centre dampers will have actuators on the bottom.
  • Page 10 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Actuator mounting The actuator can be mounted horizontally along the damper or vertically. This should be specified at order placement.
  • Page 11 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Vertical Up Left (LH, AMVU) Vertical Up Left (RH, AMVU) Note: Dampers in these two vertical up orientations shown above will require an extended actuator bracket when the Nominal duct height is under 580mm.
  • Page 12 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Dampers with the actuator at the top will be coded DTOP, examples are shown below: Top Horizontal (RH, AMH)
  • Page 13 Advanced Air into the plug but it will not be wired to anything else at the other end. A contractor on site shall wire the decoder lead to the damper(s) on site using the wiring diagrams provided by Advanced Air. No junction boxes or additional cable are provided by Advanced Air.
  • Page 14 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Duct connection C, O, R – Circular, Oval, Rectangular This refers to the connecting spigot on the damper for mounting the duct to.
  • Page 15 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Wiring configurations and options Wiring on standard dampers and standard multi-section dampers As standard a single section damper will be shipped with the actuator fitted and a pair of flying lead cables hanging loose from the actuator.
  • Page 16 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Wiring diagrams Single section 24VAC/DC All dotted lines indicate cables that are suppied and wired by others. Junction boxes are supplied by others.
  • Page 17 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Single section 230VAC All dotted lines indicate cables that are supplied and wired by others. Junction boxes are supplied by others.
  • Page 18 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Multi-section 24VAC/DC All dotted lines indicate cables that are supplied and wired by others. Junction boxes are supplied by others.
  • Page 19 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Multi-section 230VAC All dotted lines indicate cables that are supplied and wired by others. Junction boxes are supplied by others.

  • Page 20: Acoustic Performance

    The packaging that Advanced Air products are shipped in is not weather proof or fire resistant. Approximate Weights – kg.
  • Page 21 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Fully open Pressure Drop – Pa. Due to continuous product development Advanced Date Issue Sheet Spec Number (U.K.) Ltd reserves the right to change any...
  • Page 22 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Blade Leakage – l/s/m². Due to continuous product development Advanced Date Issue Sheet Spec Number (U.K.) Ltd reserves the right to change any...
  • Page 23 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Dimensions AFS with rectangular spigot For dampers with Nominal duct size 200mm x 200mm or larger. For dampers with Nominal duct size less than 200mm x 200mm. A duct reducer will be used to reduce the size of the Nominal 200mm height or width (the smallest that can be manufactured) to the required size.
  • Page 24 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk AFS with circular spigot AFS with flat oval spigot Due to continuous product development Advanced Date Issue Sheet Spec Number (U.K.) Ltd reserves the right to change any...
  • Page 25 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk HEVAC frame with rectangular spigot For dampers with Nominal duct size 200mm x 200mm or larger. For dampers with Nominal duct size less than 200mm x 200mm. A duct reducer will be used to reduce the size of the Nominal 200mm height or width (the smallest that can be manufactured) to the required size.
  • Page 26 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk HEVAC with circular spigot HEVAC with flat oval spigot Due to continuous product development Advanced Date Issue Sheet Spec Number (U.K.) Ltd reserves the right to change any...

  • Page 27: Installation And Maintenance

    Damper Testing and Conformity Details To meet the requirements of the Construction Products Regulation 1 July 2013 Advanced Air fire/smoke dampers meet the requirements of the product standard BS EN 15650 with a classification under BS EN 13501-3 as stated in our declaration of performance that has been assessed by the notified certification body.

  • Page 28: Damper Maintenance

    (see product details). Steel joining strips are utilised to seal the sections. Advanced Air have carried out a test of a multi-section damper in the worst case so that it can be used for both Blockwork wall and drywall AFS installations. Each section...
  • Page 29 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Blockwork wall with Adjustable Frame System (AFS) Classification E120 (ve i↔o)S Pre Installation Notes 1. Ensure that the damper is kept in a clean dry environment.
  • Page 30 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Blockwork wall HEVAC frame Classification E120 (ve i↔o)S Pre Installation Notes 1. Ensure that the damper is kept in a clean dry environment.
  • Page 31 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Drywall with Adjustable Frame System (AFS) Classification E120 (ve i↔o)S Pre Installation Notes Ensure that the damper is kept in a clean dry environment.
  • Page 32 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Concrete floor with Adjustable Frame System (AFS) Classification E120 (ho i↔o)S Pre Installation Notes 1. Ensure that the damper is kept in a clean dry environment.
  • Page 33 Advanced Air UK Ltd Burrell Way 2530 CE Series Thetford Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Concrete floor HEVAC Classification E120 (ho i↔o)S Pre Installation Notes 1. Ensure that the damper is kept in a clean dry environment.

  • Page 34: Related Documents

    Smoke Fire Damper Norfolk IP24 3QU Tel: 01842 765657 Email: Projects@advancedair.co.uk Related documents The following Advanced Air publications will provide further information relating to this product. Document reference Description AAxTS18 Advanced Air 18Nm spring return damper actuators Due to continuous product development Advanced...
