Summary of Contents for i-Vac X20

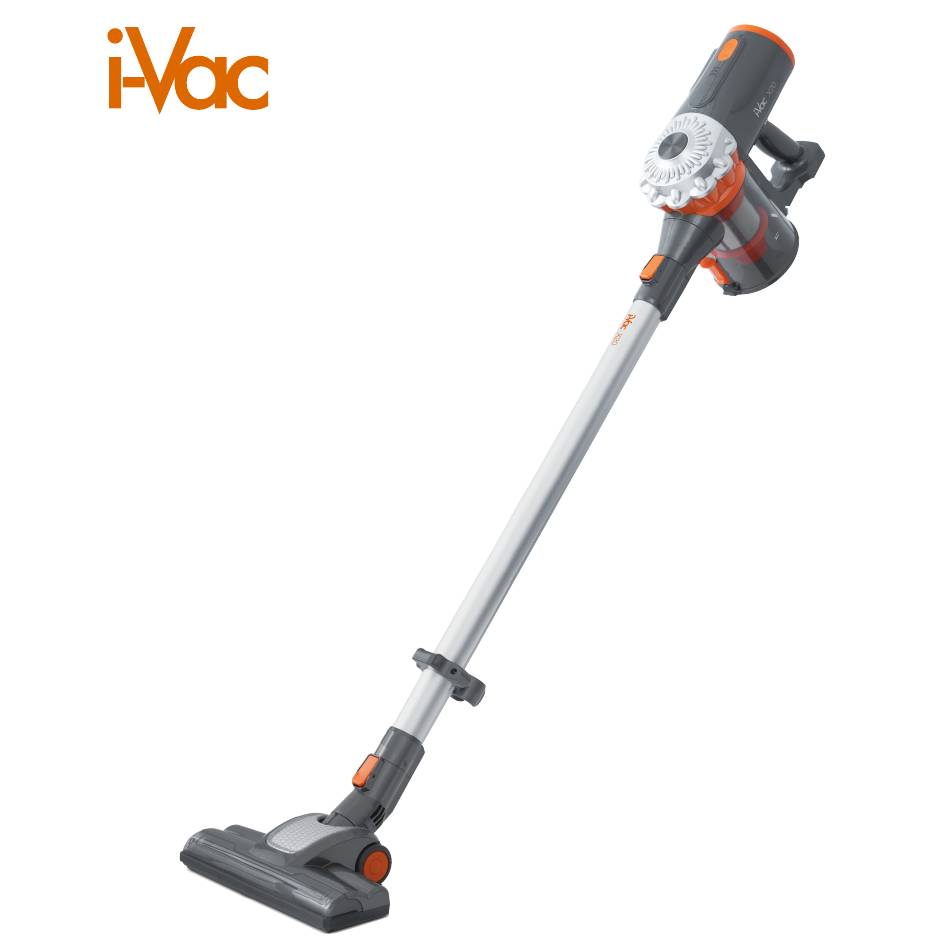

- Page 1 X20 Stick Vacuum Swivel Powerhead Advanced Cyclonic System Lightweight and Convenient...
- Page 2 2-in-1 Cleaning Tool...
-
Page 3: Specifications
Congratulations on the purchase of your new i-Vac Stick Vacuum. There are many useful features built into your cleaner and we recommend that you carefully read this instruction manual to get the most out of your vacuum cleaner. Features: On/Off Button & MAX Button... -
Page 4: Before You Begin
Before You Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately. -
Page 5: Safety Precautions And Warnings
Safety Precautions & Warnings IMPORTANT! Always switch off the appliance before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual. - Page 6 Battery use and care 15. Never operate or use the appliance without the filters in place. The appliance is only to be used with the 16. Before vacuuming, remove any large or sharp charger provided with the appliance. objects from the floor or cleaning surface in Only charge the battery inside the cleaner or order to prevent damage to the filter.
- Page 7 Assembly IMPORTANT! Switch Off the appliance before fitting or removing accessories. Connecting the Powerhead Insert the Powerhead into the rod. You will hear a “click” sound when it is securely in place. Connecting the rod to the unit During installation of the rod, insert the plug end into the air inlet of the cleaner.
- Page 8 Instructions For Use On/Off & MAX Mode Press On/Off button to start the machine. While the vacuum is turned on, press the MAX button to boost the cleaning. Attention: It is recommended to charge your product after each use to maintain maximum performance.
- Page 9 Accessories 2-in-1 Cleaning Tool The 2-in-1 Cleaning Tool can be used to clean in between hard to reach places or in tight spaces. Powerhead Ideal for daily cleaning on carpets and hard floors. Carpet Hard Floors NOTE: If the Powerhead is blocked, the motor switches off automatically. If this occurs, switch off the vacuum cleaner.
-
Page 10: Maintenance
Maintenance Charging the vacuum cleaner Insert the charger into the charging port on the vacuum cleaner. When the charging indicator light is flashing in sequence, the vacuum cleaner is being charged. When the vacuum cleaner battery is fully charged, the indicator will show three lights. -
Page 11: Emptying The Dust Canister
IMPORTANT! Turn off the cleaner before conducting any maintenance tasks. It is recommended to clean the Dust Canister after each use or when dust reaches the Max fill line. Emptying the Dust Canister Press the Dust Bin Lid Release button to open the bottom cover of the vacuum to empty the Dust Canister. -
Page 12: Cleaning The Roller Brush
Maintenance (continued) Cleaning the Roller Brush The rotating brush must be free of debris for effective cleaning and maximum suction. If a build-up of debris is found around the rotating brush, remove by carefully cutting with scissors. -
Page 13: Spare Parts
Spare Parts Please contact Godfreys Customer Care Australia on 1800 815 270 or NZ 0800 282 288 to find your local spare parts provider. Part Part Number Filter 32201727 Power Adaptor 33201765 Powerhead 33788143 Agitator 33788144... -
Page 14: Troubleshooting
Troubleshooting Problems and solutions If you come across a problem, please use the checklist of troubleshooting tips before contacting Godfreys Customer Care. Fault Cause Solution Cleaner doesn’t start Flat battery Charge the vacuum cleaner Reduced suction The Dust Canister is full of dust Empty the Dust Canister Filter is blocked Clean or replace the filter... - Page 15 Notes...
- Page 16 Cordless Stick Vacuum Conditions of warranty Your cleaner, in the case of domestic use, has a one year parts Electrical Home-Aids Pty. Limited is unable to accept responsibility and labour warranty against product defects and failures when the under this warranty for any repair work not carried out by an product is used in accordance with the terms and conditions of authorised Service Agent or from the use of non-genuine parts.
