Lightweight • Lithium • Cordless

Advertisement

Table of Contents
loading

Related Manuals for i-Vac X10

Summary of Contents for i-Vac X10

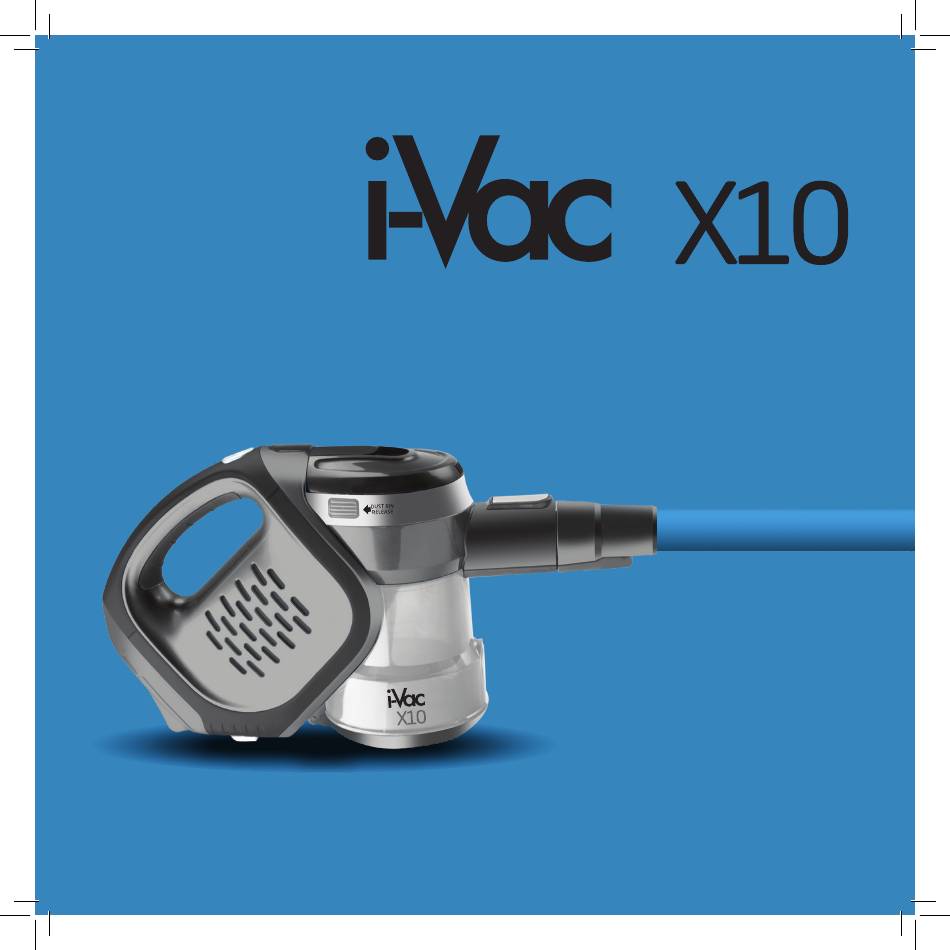

  • Page 1 Lightweight • Lithium • Cordless...
  • Page 2 Crevice Tool 2-in-1 Cleaning Tool...

  • Page 3: Specifications

    Congratulations on the purchase of your new i-Vac vacuum cleaner. There are many useful features built into your vacuum cleaner. We recommend that you carefully read this instruction manual to take the best advantage of these features. Features: Battery Release Buttons 8.

  • Page 4: Before You Begin

    Before You Begin This cleaner must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately.

  • Page 5: Safety Precautions And Warnings

    Safety Precautions & Warnings IMPORTANT! Always switch off the appliance before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual.
  • Page 6 Battery use and care 17. If the air inlet or floor head is blocked, switch off the cleaner straight away. Clear the blocked The appliance is only to be used with the charger object before attempting to start the vacuum provided with the appliance.

  • Page 7: Installing The Battery

    Assembly IMPORTANT! Always remove the battery from the appliance before fitting or removing accessories. Installing the battery Insert the battery into the machine (as shown) until a “click” is heard. Installing the dust bin Align the dust bin to the cleaner and push upward (as shown) until a “click”...
  • Page 8 Assembly (continued) Connecting the floorhead Insert the floorhead into the rod. You will hear a “click” when it is securely in place. Connecting the rod to the cleaner Insert the opposite end of the rod into the air inlet of the cleaner.

  • Page 9: Crevice Tool

    Accessories 2-in-1 Cleaning Tool The 2-in-1 Cleaning Tool can be used as a soft dusting brush for cleaning a variety of surfaces or as an upholstery tool for cleaning furniture. 2-in-1 Cleaning Tool Crevice Tool The crevice tool can be used to clean in between hard to reach places.
  • Page 10 Accessories (continued) Floorhead Ideal for daily cleaning on carpets and hard floors. Carpet Hard Floors NOTE: If the floorhead is blocked, the motor will switch off automatically. If this occurs, switch off the vacuum cleaner and remove the battery. Remove any object that has blocked the floorhead, then reinsert the battery and switch on the cleaner.

  • Page 11: Maintenance

    Maintenance Charging the vacuum cleaner Insert the charger into the charging port on the vacuum cleaner. When the power indicator light is red, the vacuum cleaner is being charged. When the power indicator turns from red to blue, the battery is fully charged. NOTE: The product needs to be charged for 5-6 hours.

  • Page 12: Emptying The Dust Bin

    Maintenance (continued) IMPORTANT! Turn off the cleaner and remove the battery before conducting any maintenance tasks. It is recommended to clean the dust bin after each use or when dust reaches the “Max” fill line. Emptying the dust bin Hold the dust bin over a rubbish bin and press the Dust Bin Lid Release button to open the dust bin lid.

  • Page 13: Cleaning The Roller Brush

    Cleaning or Replacing the Pre-motor Filters The pre-motor filters can be accessed by lifting the Filter Release Lever. The pre-motor filters can be cleaned by rinsing under lukewarm water and allowing to air dry for 24 hours before reinstalling. NOTE: It is recommended to replace the filters every 6 months. Cleaning the roller brush Use a screwdriver to rotate the locking button to the unlock position.

  • Page 14: Spare Parts

    Spare Parts Please contact Godfreys Customer Care: 1800 815 270, NZ: 0800 282 288 to find your local spare parts provider. Part Part Number Filter Set 32201447 Battery 33201442 Roller Brush 33788032...

  • Page 15: Troubleshooting

    Troubleshooting Problems and solutions If you come across a problem, please use the checklist of troubleshooting tips before contacting Godfreys Customer Care. Fault Cause Solution Cleaner doesn’t start - The battery is not installed - Remove the battery and reinsert correctly.
  • Page 16 Lightweight • Lithium • Cordless Conditions of warranty Your i-Vac cleaner, in the case of domestic use, has a one year parts of the product due to normal wear and tear, alterations, improper and labour warranty against product defects and failures when the installation, physical abuse, misuse or accidental damage.
