Related Manuals for i-Vac Pure Fresh T10
Summary of Contents for i-Vac Pure Fresh T10

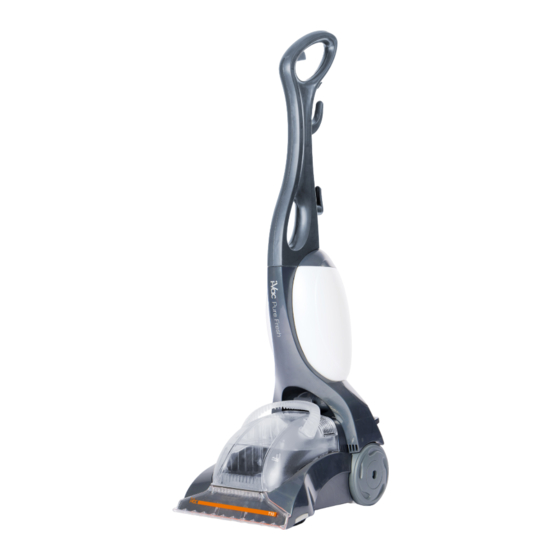

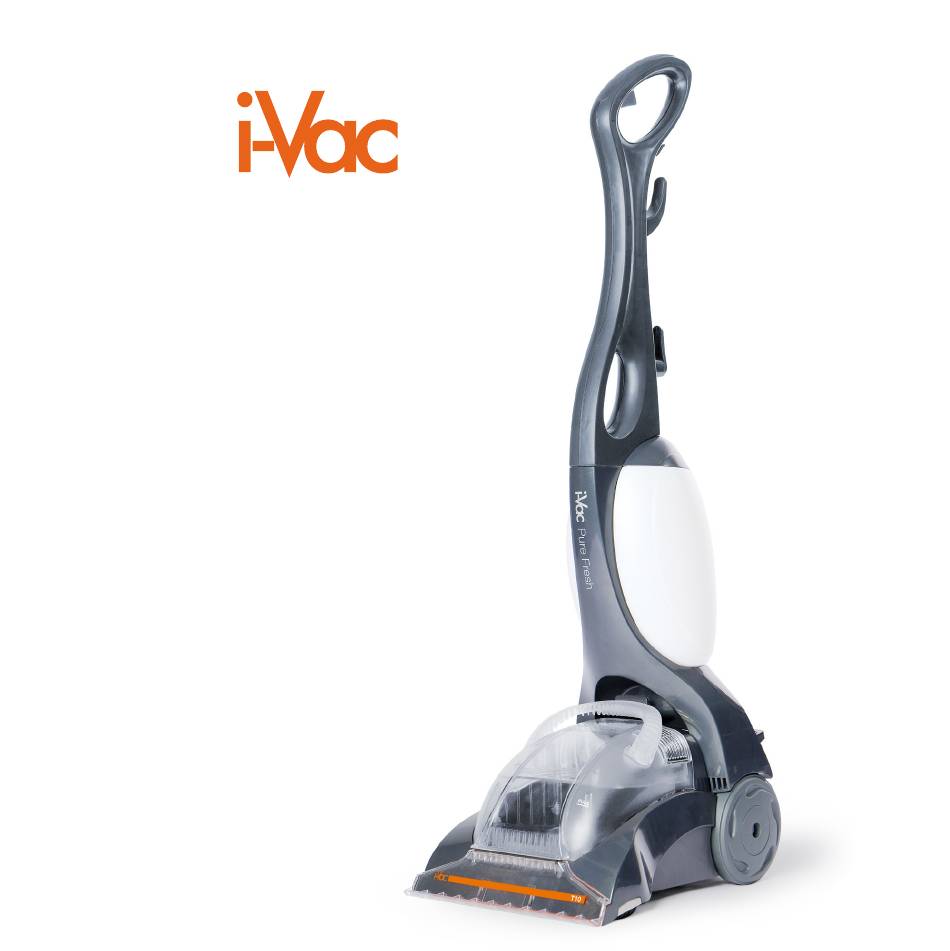

- Page 1 Pure Fresh Carpet Shampooer Rotating brush bar Spray control trigger Dual tank technology...
-
Page 3: Specifications
T10 Pure Fresh Congratulations on the purchase of your new i-Vac Carpet shampooer. There are many useful features built into your carpet shampooer. We recommend that you carefully read this instruction manual so you can make the most of all the features this machine has to offer. -
Page 4: Before You Begin
Before You Begin Please read this manual before operating cleaner This will ensure you obtain full benefit from your new carpet shampooer. Keep this instruction manual in a handy place for future reference. Important Always switch the cleaner off and remove the plug from the electricity supply before cleaning your appliance, when not in use, or when attempting any maintenance task. - Page 5 WARNING! To reduce the risk of fire, electric shock or injury when using an electrical appliance, basic precautions should always be followed, including the following: This appliance is not intended for use by Keep hair, loose clothing, fingers and all persons (including children) with reduced parts of the body away from openings and physical, sensory or mental capabilities,...
- Page 6 21. Never attempt to make any modifications to the NOTE! shampooer. Vacuum carpet thoroughly. Use a vacuum cleaner 22. Indoor use only. with a powerbrush for best results. 23. Always store the appliance indoors, in a cool, dry Remove as much furniture from the room as place.
- Page 7 Assembly IMPORTANT! The appliance should be disconnected from the power supply before assembly begins. Insert the handle onto the adapter of the unit body. Screw the screws back into the boreholes. Note: You will need a phillips head screwdriver. Insert the clean water tank into the unit body. First insert the valve into the round depression on the backside of the appliance and then press the top of the tank against the centrepiece until it audibly engages.
- Page 8 Instructions For Use WARNING! Do not use hot or boiling water to fill the water tank. Only refill the water tank with cold tap water. WARNING! Disconnect the power plug from the power supply before filling the water tank. Ensure that the water tank lid is installed securely into the cleaner before connecting the power plug to the power supply.
- Page 9 Using Your Carpet Shampooer IMPORTANT: Never leave the appliance unattended with the power on. Turn off when emptying and filling tanks. Do not oversaturate the carpet. Note: Cleaning solution may leak out of the shampooer once it is deactivated. For this reason, have a cloth laid out that you can place the shampooer on after use.
-
Page 10: Before You Clean
Before You Clean Dilute the cleaning solution as per the manufacture’s recommendation. Take a spot test on a small and marginal area of the carpet for colourfastness. Gently rub the cleaning solution on the surface with a white cloth. Then wait ten minutes and check for colour removal or bleed with a white paper towel. Carpet Cleaning Stroke the carpet cleaner forward and backwards in a straight line. -
Page 11: Maintenance
Maintenance Emptying the water tank WARNING: Always unplug power cord from electrical outlet before performing any maintenance task on the carpet shampooer. IMPORTANT: Do not wash filters in the washing machine, hand wash only. Only air dry the filters and do not in use a hair dryer. Note: Cleaning solution may leak out of the shampooer once it is deactivated. - Page 12 Replace the belt / the roller brush WARNING: The carpet shampooer contains electrical connections. The carpet shampooer is not a serviceable part. WARNING: Always unplug power cord from electrical outlet before performing any maintenance task on the carpet shampooer. Due to the normal wear and tear, the belt may break and the roller brush will stop working. Please follow the instruction below on how to replace the belt and the roller brush.
-
Page 13: Troubleshooting
- Check alignment of the tank. cleaning solution - Empty the tank. Spare Parts Part Part Number i-Vac T10 Filter set (pre motor and exhaust) 32200790 Solution tank assembly 33157851 i-Vac T10 Dirty water tank 33151764 i-Vac T10 Agitating brush roll... -
Page 14: Conditions Of Warranty
This warranty does not product is used in accordance with the terms and conditions of this apply to the cost of replacing any parts of the i-Vac Pure Fresh Carpet warranty statement. Shampooer due to normal wear and tear, alterations, improper installation, physical abuse, misuse or accidental damage.
