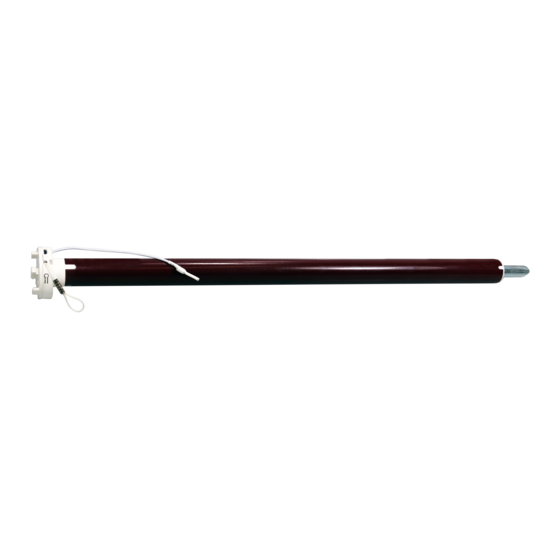

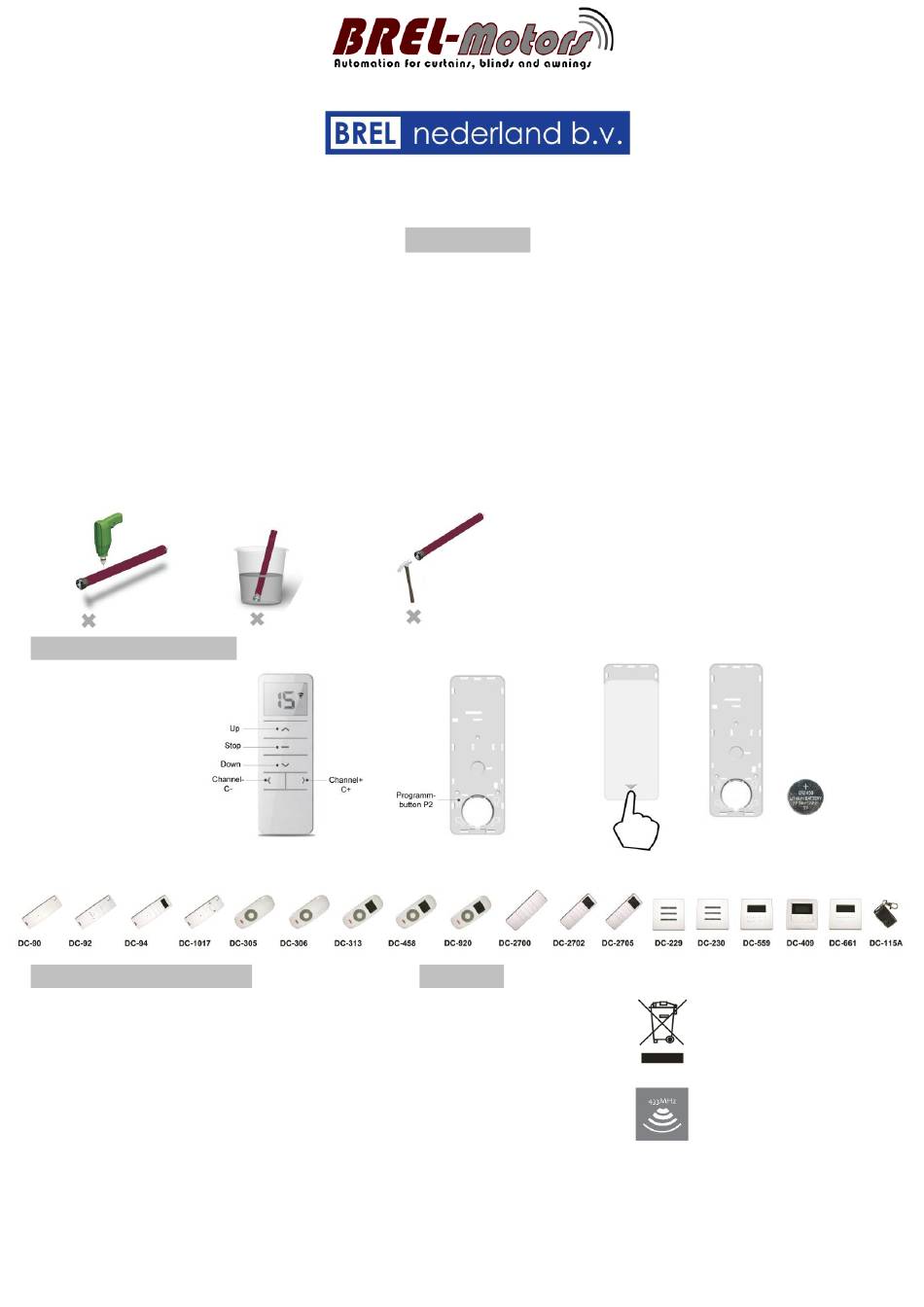

Manual Brel 22 mm 5V electronic radio motor with pullcord
Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. Keep the antenna in a good condition and do not shorten. The antenna should not come into contact
with other metal parts otherwise it will reduce the effect.
4. The motor must be protected from direct moisture influences.
_______________________________________________________________________________
Functions remote control
Works with all BREL transmitters:
______________________________________________________________________________
Technical data of the motor
•
Motor voltage:
•
Power:
•
Torque:
•
Speed:
•
Amperage:
•
Moisture and dust:
•
Storage capacity is up to 20 channels:
•
Working temperature of the motor:
o
Heavy use:
o
Normal use: -20℃ tot +70℃
BREL motors is part of:
Type MLE22
MLE22-0.5
DC 5V 2A
6 W
0.5 Nm
21 rpm
0.70 A
IP20
-10℃ tot +40℃
Page 1
Advertisement
Table of Contents
Related Manuals for BREL BREL-Motors MLE22-0.5
Summary of Contents for BREL BREL-Motors MLE22-0.5
- Page 1 Page 1 BREL motors is part of: Manual Brel 22 mm 5V electronic radio motor with pullcord Type MLE22 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Page 2 To charge the MLE22, use a charger with micro-USB plug. The battery is full when the light stops flashing and lights up green continuously. The battery is empty when the light is flashing red. ______________________________________________________________________________ Functions Reach L1 = 200 meter L2 = 35 meter ------------ Antenna Micro-USB ------------...
- Page 3 Page 3 _______________________________________________________________________________ Step 3 Setting the desired third limit position Pull 1x Go to the desired Hold the cord until the motor moves up and down. third limit position. To go to the third limit position, tighten the cord until the motor starts running. To remove / change the third limit position, the same procedure must be repeated at the position of the third limit position.
- Page 4 Page 4 _______________________________________________________________________________ Step 3 Setting the end limits If no limit positions are set, the motor will only move in the pulse setting. ▲ ▲ 1x P2 1x P2 Press the P2 Press the button Press the P2 Set the product on the button.
- Page 5 Page 5 Deleting the end position can also be done as follows: When step 1, setting up the first channel also the limit setup will be removed. ▼ 1 x P2 1x P2 The end positions are now removed from the memory of the motor. You can now re-read the end position.
- Page 6 Page 6 _______________________________________________________________________________ Option F Teach in new transmitter while maintaining final settings. Only possible if the final setting is set. ▲▼ simultaneously 1x Press P1 until Hold down the P1 key The motor moves up Push up and down at the same time Shortly.
