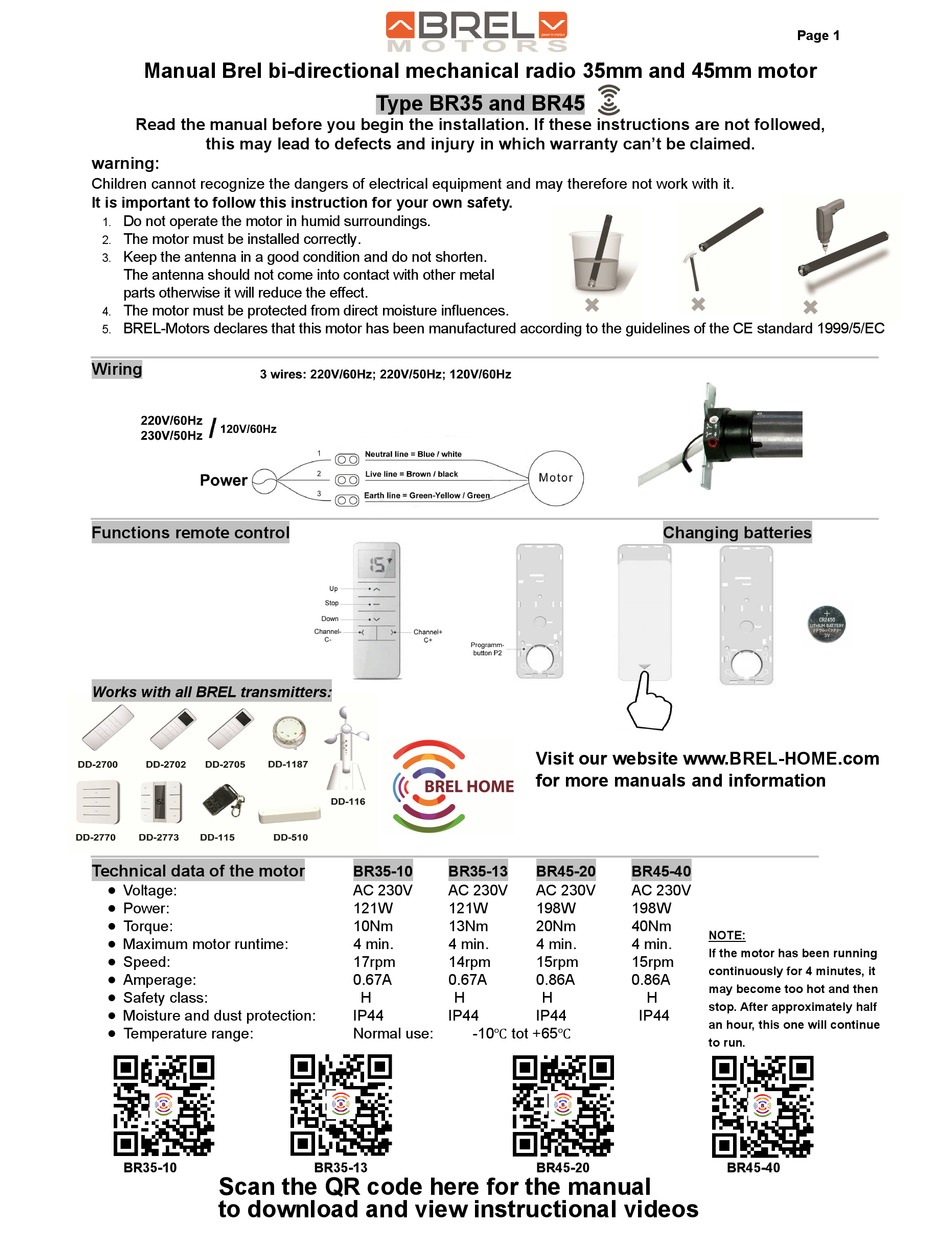

BREL BR35-10 Manual

Manual Brel bi-directional mechanical radio 35mm and 45mm motor
Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
Do not operate the motor in humid surroundings.
1.
The motor must be installed correctly.
2.
Keep the antenna in a good condition and do not shorten.
3.
The antenna should not come into contact with other metal
parts otherwise it will reduce the effect.
The motor must be protected from direct moisture influences.
4.
BREL-Motors declares that this motor has been manufactured according to the guidelines of the CE standard 1999/5/EC
5.
_______________________________________________________________________________

Wiring

_______________________________________________________________________________

Functions remote control

Works with all BREL transmitters:
_________________________________________________________________________

Technical data of the motor

 Voltage:

Power:

Torque:

Maximum motor runtime:
 Speed:
 Amperage:
 Safety class:
 Moisture and dust protection:
 Temperature range:
BR35-10
Scan the QR code here for the manual
to download and view instructional videos
Type BR35 and BR45
BR35-10 BR35-13
AC 230V AC 230V
121W 121W
10Nm 13Nm
4 min. 4 min.
17rpm 14rpm
0.67A 0.67A
H H
IP44 IP44
Normal use: -10℃ tot +65℃
BR35-13

Changing batteries

Visit our website www.BREL-HOME.com
for more manuals and information
BR45-20 BR45-40
AC 230V AC 230V
198W 198W
20Nm 40Nm
NOTE:
4 min. 4 min.
If the motor has been running
15rpm 15rpm
continuously for 4 minutes, it
0.86A 0.86A
may become too hot and then
H H
stop. After approximately half
IP44 IP44
an hour, this one will continue
to run.
BR45-20
Page 1
BR45-40
