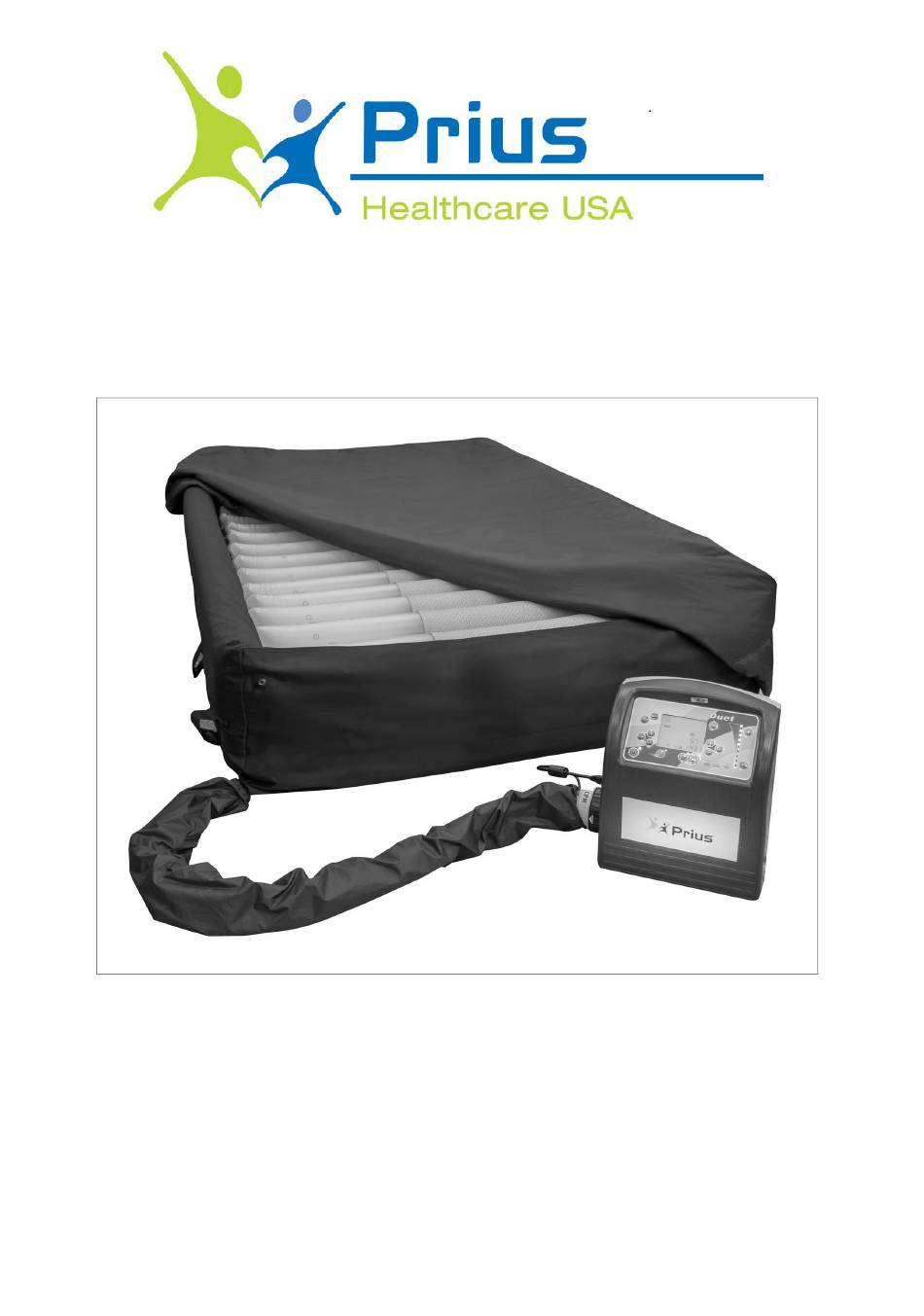

- Page 1 Duet LAL Alternating Anti-Decubitus System User Manual Manufactured by: 4027 Tampa Rd, Suite 3200 Prius Healthcare USA Oldsmar, FL 34677 Telephone : 813-854-5464 Fax : 813-854-5442 www.priushcusa.com 1908...
-
Page 2: Table Of Contents
Content 1. The Purpose of this Manual ....................1 2. Product Description ........................1 3. Technical Data ..........................4 4. Operation Instruction ....................... 5 5. Cleaning ............................8 6. Storage and Care ......................... 9 7. Maintenance and Troubleshooting .................. 10 8. - Page 3 Warning ❖ Connect the Master Control unit to a proper power source. ❖ Don’t use the system in the presence of any flammable gases. ( such as Anesthetic Agents) ❖ Keep the pump and mattress away from open flame. ❖ Keep sharp objects away from the mattress. The device is not AP/APG protected.
-
Page 4: The Purpose Of This Manual

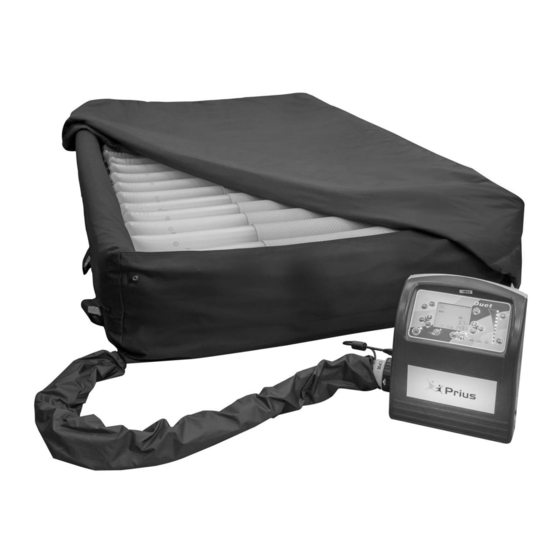

Product Description The Duet LAL Alternating Anti-Decubitus System is a unique and innovative specialty mattress replacement unit. The system utilizes true low air loss technology with a high flow rate that provides pressure management for the treatment of pressure ulcers. - Page 5 Therapy Mode Rotation Therapy LCD Display Selection for Selection Alternation, Pulsation and Static Maximum Inflation Cycle Time Preset Key Power Switch Audio Alarm Comfort ON/OFF Setting Auto Panel Lock Patient’s BMI Setting Power Failure Bottom Out Sensor Disconnect Caution Alternating pressure therapy is not recommended to patient who has serious pain or pain-sensitive symptom.
- Page 6 LCD Display introduction ALTERNATION LOCK STATIC FULL TURN CYCLE TIME TURNING MUTE PULSATION LEFT TURN CYCLE TIME FOWLER ALTERNATION RIGHT TURN HEIGHT NO TURNING AUTO PATIENT CARE WEIGHT FUNCTION BOTTOM...
-
Page 7: Technical Data
3. Technical Data Master Control Unit Model No. FC-MOX0027 Model Name Duet Size (inch) LxWxH 12.2“ x 6.7“ x 13.2“ Weight 14.3lbs Cycle Time (min) 3 - 95 Min Operating Pressure 8 +/- 5mmHg Max Operating Pressure 33 +/- 5mmHg... -
Page 8: Operation Instruction
Symbol Definition Refer to Accompanying Documents Waste Disposal Type BF Applied Part Alternating Current Caution Keep Dry Manufacturer 4. Operation Instruction 1. Power On/Stand-By Plug the power cord to the socket and switch on the power at control panel, the orange LED will illuminate, it means Stand-By. Press the button Power On/Stand-By button, the LED light will turn to green, and the control unit will start to operate. - Page 9 2.3 Pulsation Mode The system will provide pulsation pressure-relieving therapy. 3. Patient Care 3.1 Patient Care provides quick maximum inflation within seconds to help transfers and nursing procedures. 3.2 Press the Patient Care button for fast inflation. 3.3 When the mattress is fully inflated, the caregiver can transfer the patient onto the mattress.
- Page 10 5.3 Press SET button, when the height indication flash, press +/- to adjust the height of the patient. 5.4 Press SET button, when the weight indication flash, press +/- to adjust the weight of the patient. 5.5 Press SET to exit menu when finish. 6.
-
Page 11: Cleaning
5. Cleaning The Mattress The mattress should be cleaned on the bed weekly using a damp soft cloth and mild detergent. If top cover or base cover becomes grossly soiled, put on clean gloves, plastic gown and eye protection before removing top and base covers and disposing according to standard hospital procedures for contaminated waste and replace with clean covers. -
Page 12: Storage And Care
Replace Air Filter 1. Remove air filter and replace with a new one. 2. Use a soft bristle to remove dust and difficult dried-on soil. Filter NOTE: 1. Do not use phenol based cleaning solutions. 2. Switch off the electrical supply to the pump and disconnect the power cord from the main supply before cleaning and inspection) Waste Disposal This Product has been supplied by an environmentally... -
Page 13: Maintenance And Troubleshooting
7. Maintenance & Troubleshooting No daily maintenance is required. It is intended this equipment should only be serviced by properly qualified, authorized technical personnel. In case of minor trouble please refer as following Troubleshooting. Symptom Inspection Procedures Possible Solution Air is pumping out from 1. -
Page 14: Emc Related Notification
Guidance and manufacturer’s declaration – electromagnetic emissions The Duet control unit is intended for use in the electromagnetic environment specified below. The customer or the user of the Duet control unit should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 15 Guidance and manufacturer’s declaration – electromagnetic immunity The Duet control unit is intended for use in the electromagnetic environment specified below. The customer or the user of the Duet control unit should assure that it is used in such an environment. Immunity test...
- Page 16 Guidance and manufacturer’s declaration – electromagnetic immunity The Duet control unit is intended for use in the electromagnetic environment specified below. The customer or the user of the Duet control unit is responsible for making sure that it is used in such an environment.
-
Page 17: Expected Service Life
9. Expected Service Life The Duet control unit has an expected service life of five years. To maintain the schedule recommended by Prius Healthcare USA. Do NOT use unapproved condition of the pump, have the pump serviced regularly according to the accessories or attempt to modify, disassemble or otherwise misuse the Duet LAL Alternating Anti-Decubitus System. - Page 18 Prius Healthcare USA 4027 Tampa Road, #3200 Oldsmar, FL 34677, USA TEL: (813)854-5464 FAX: (813)854-5442 AL300214 V1.01...
