Summary of Contents for Hussmann HBD/BC-142

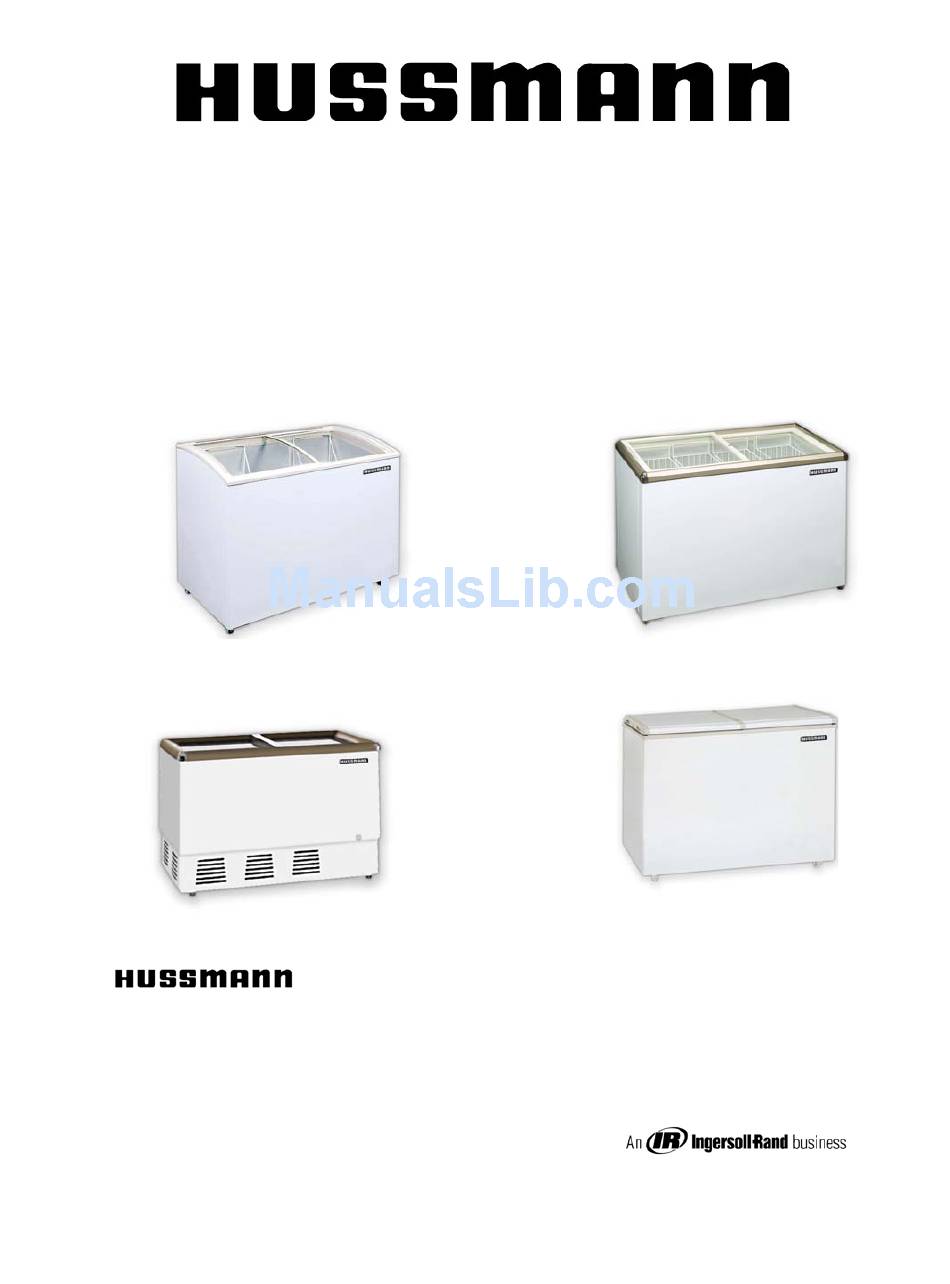

- Page 1 Sliding Glass Top & Solid Top Freezer / Cooler Chests Curved Top (Y), Interior Step & Flat Top, Interior Step Flat Top (P), Flat Interior & Solid Top(H), Interior Step Hussmann Corporation 12999 St. Charles Rock Road Bridgeton, MO 63044 Phone: 314-291-2000...
-
Page 2: Table Of Contents
Introduction Inspection Interior Liner, Insulation Cabinet Dimensions, Electrical Data, and Case Capacities Refrigerant and Refrigerant Charges Installation and Start Up, Leveling, Casters, Baskets Drain and Power Cord Temperature Control and Defrosting Cleaning Condenser Cleaning Exterior Cleaning Interior Trouble Shooting Chart Replacement Parts Procedure Replacement Parts List Wiring Diagram... -
Page 3: Introduction
(-10f), or for storage or display at “normal” (under +40f) refrigerator temperatures. All cabinets are UL electrical, UL Canadian, NOM electrical and UL sanitation listed. - Page 4 Page 4 CABINET DIMENSIONS, ELECTRICAL DATA, CABINET CAPACITIES OUTSIDE Cabinet Length Width Height HSD/SC-190Y 36.5 HSD/SC-220Y 40.6 HSD/SC-280Y 48.6 HSD/SC-320Y 54.4 HSD/SC-258 42.5 HSD/SC-302 45.7 HSD/SC-358 49.7 HSD/SC-408 53.7 HSD/SC-518 66.5 HSD/SC-132P 31.5 HSD/SC-162P 33.9 HSD/SC-192P 38.8 HSD/SC-218P 42.5 HBD/BC-142H 28.9 HBD/BC-160H 31.5...
-
Page 5: Refrigerant And Refrigerant Charges
HSD/SC-518 Page 5 ELECTRICAL Volts HSD/SC-132P HSD/SC-162P HSD/SC-192P HSD/SC-218P HBD/BC-142H HBD/BC-160H HBD/BC-180H HBD/BC-195H HBD/BC-215H HBD/BC-258H HBD/BC-302H Check the unit serial plate location on the rear of the case for the type and amount of refrigerant used as this is subject to change from time to time: HSD/SC-190Y Curved Glass Top HSD/SC-220Y Curved Glass Top HSD/SC-280Y Curved Glass Top... -
Page 6: Installation And Start Up, Leveling, Casters, Baskets
Page 6 INSTALLATION and START UP Leveling – Level case front to back and end to end, shimming where necessary upon installation to assure proper operation of drains and refrigeration systems. Casters- The units are shipped complete with 4 swivel casters attached to each underside corner of the case. -
Page 7: Drain And Power Cord
Page 7 Drain – A 1-inch drain is provided on the cabinet floor which runs to the outside of the cabinet where it is capped. It is important for proper operating temperatures to assure that the exterior drain cap is in place when the equipment is refrigerating. Power Cord –... -
Page 8: Temperature Control And Defrosting
The control is adjustable for both Freezer and Refrigerator Temperatures. Towards the Maximum Zone are freezing temperatures and towards the Minimum Zone are refrigerator temperatures. Due to the case design, once an adjustment is made some time will lapse before the temperature inside the fixture reacts to the change. -
Page 9: Cleaning Condenser
Page 9 CLEANING CONDENSER – On Models so equipped, the condenser is designed to require minimum maintenance. However, to keep the unit at top efficiency, check periodically, and remove any accumulated dust and debris. To clean condenser, a soft, nylon brush should be used to loosen dirt and lint. -
Page 10: Trouble Shooting Chart
Compressor will not cuts out on overload TROUBLE SHOOTING CHART High head pressure Warm storage temperatures 1. Temperature control not 1. Low voltage 2. Defective compressor 3. Defective relay 4. Restriction pinched cap tube 5. Restriction moisture 6. Inadequate air over condenser 7. -
Page 11: Replacement Parts Procedure
Quality Control Department. Contact your Hussmann Distributor for instructions on returning in-warranty parts. Warranty parts must be returned to the factory within 30 days of date of failure to assure proper disposition. -
Page 12: Replacement Parts List
Part Nos. Description 5-HM-1007 Compressor Panasonic DG57C84RAU6 5-HM-1008 Compressor Panasonic DG73C12RAU6 5-HM-1009 Compressor Panasonic DG86C15RAU6 5-HM-1006 Compressor LGETR MA53LBCM (All above 115-volt, R-134a Refrigerant) 5HM-2001 Temperature Control WKF27H-102-022 5-HM-3002 Condenser Fan Motor M4Q045CA2704 5-HM-8001 Caster – Non Locking (2) 5-HM-8002 Caster –... -
Page 13: Wiring Diagram
Page 13 5-HM-12006 Keys for Lid Lock 5-HM-12007 Keyes for Lid Lock 5-HM-12008 Keyes for Lid Lock 5-HM-13001 Opt. Light Fuse 2-Amp 5-HM-15001 Outside Drain Cap WIRING DIAGRAMS : HSD/SC-258,302,358,408,518 HSD/SC-132P,162P,192P,218P HSD/SC-190Y,220Y,280Y,320Y HBD/BC-142H,160H,180H,195H HBD/BC-215H,258H,302H Curved Glass with Lighted Sign Used on all Models...
