(24)
A
(12)
A1
PHILLIPS SCREWDRIVER
( not included )

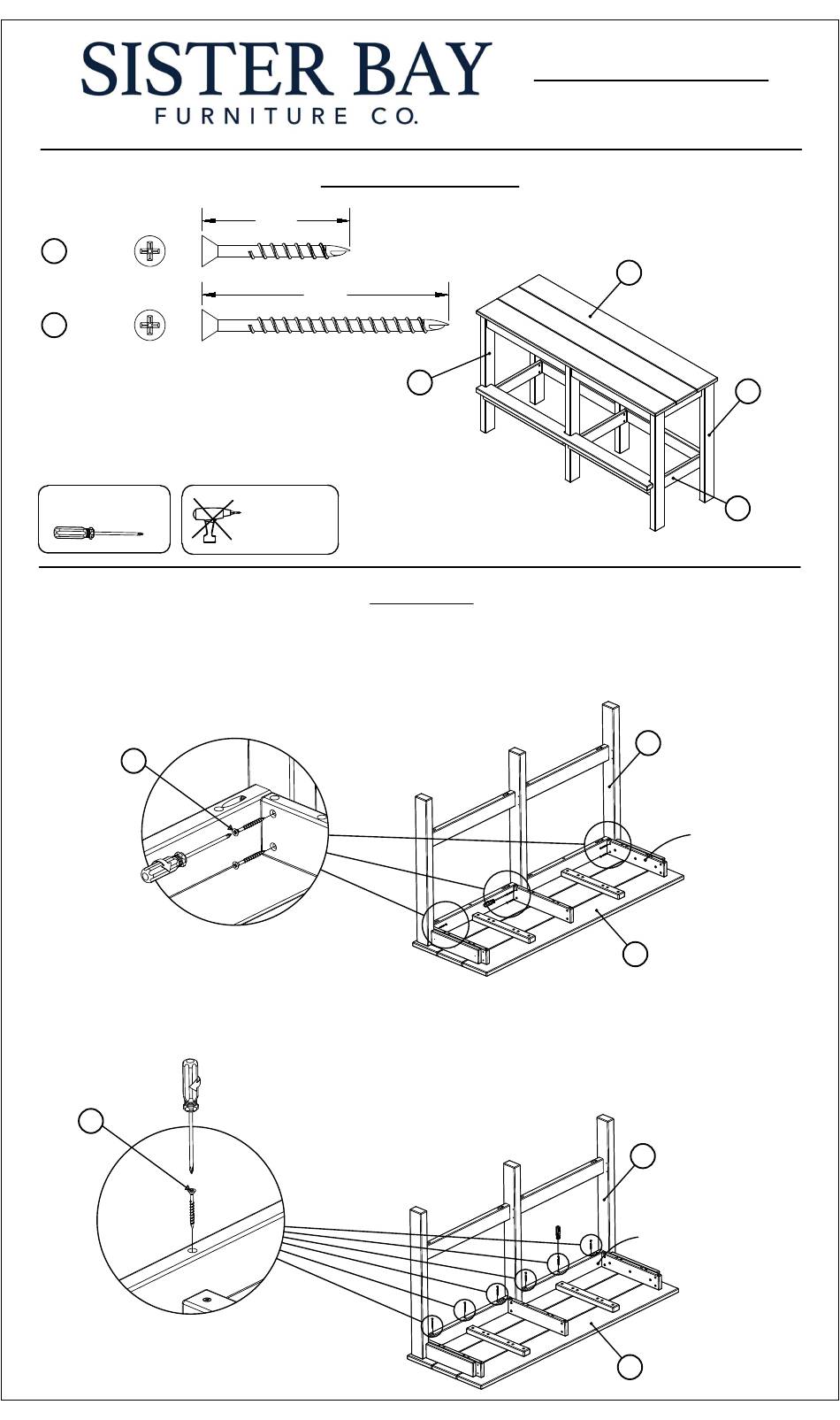

1- After laying out all components, position the Seat ( B ) upside-down and align the Back Leg Assembly ( C ) with
the Seat Supports, as shown below. Insert a Screw ( A ) through a Seat Support into a predrilled hole and begin to
tighten the screw with a screwdriver. Once the screw is a few turns tightened, move on to another screw until all 6
have been started. Leaving these loose will allow the Bench to adjust in the next procedure.
A
With the Seat Supports attached to the Back Leg, the Leg Supports can be attached. Insert a Screw ( A1 ) into
the hole on the bottom side of the Leg Support. Tighten them with a screwdriver. Once all 6 screws have been
tightened, go back and finish tightening the screws from Step 1.
A1
Hardware and Parts
1.50
2.50
( Front Leg
Assembly )
Do not use
any hand drill
on this product
Figure 1
Assembly Instructions
Hudson 47" Bar Height Bench
D
Item No: MHUD-B47B
B
( Seat )
( Back Leg
E
( Stretcher )
( Back Leg
C
Assembly )
Seat
Support
( Seat )
B
( Back Leg
C
Assembly )
Leg
Support
( Seat )
B
C
Assembly )
Advertisement
Related Manuals for Sister Bay Hudson MHUD-B47B
Summary of Contents for Sister Bay Hudson MHUD-B47B
- Page 1 Assembly Instructions Item No: MHUD-B47B Hudson 47" Bar Height Bench Hardware and Parts 1.50 (24) 2.50 ( Seat ) (12) ( Front Leg ( Back Leg Assembly ) Assembly ) Do not use PHILLIPS SCREWDRIVER ( not included ) any hand drill ( Stretcher ) on this product Figure 1...
- Page 2 To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner. Please contact our Customer Service Department for assembly assistance, questions or replacement parts at 1-866-947-7632...
