Sister Bay MCTY-48 Assembly Instructions

(10)
A
(32)
B
(4)
C
(10)
D1
(10)
D2
(10)
E

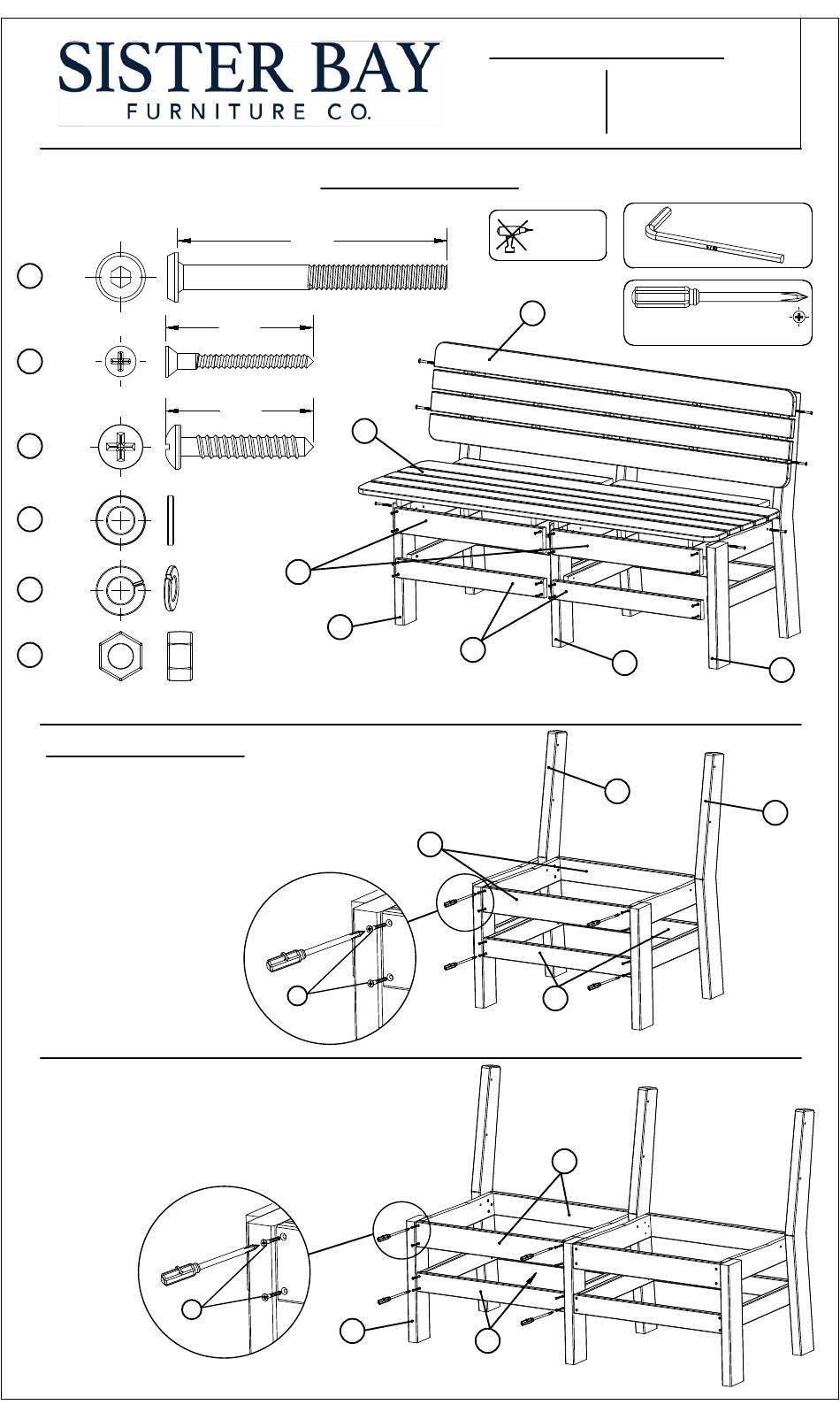

Assembly Instructions
1 - Attach part ( G ), Left Leg Assembly , and
part ( F ), Center Leg Assembly , to part
( I ), Lower Brace and part ( J ) , Upper
Brace as shown in Figure 1 using ( 16 ) of
screw ( B ) and tighten screws using a
phillips-head Screwdriver.
2 - Attach part ( H ), Right Leg Assembly , to
Assembly from Figure 1 , to part ( I ), Lower
Brace and part ( J ) , Upper Brace as shown
in Figure 2 using (16 ) of screw ( B ) and tighten
screws using a phillips-head Screwdriver.

Hardware and Parts

2.75
1.50
1.50 ( Bench Top )
(2 Front & 2 Back)
Upper Brace
J
H
( Right Leg )
Assembly
B
B
( Right Leg )
Assembly
Assembly Instructions
Item No: MCTY-48
Country 48" Bench
( Bench Back )
K
I
( 2 Front & 2 Back)
Lower Brace

Figure 1

( Front & Back)
Upper Brace
J

Figure 2

H
I
( Front & Back)
Lower Brace
Item No: MCTY-60
Country 60" Bench
Do not use
any hand drill
on this product
L
You will also need a phillips-head screwdriver
F
( Center Leg )
Assembly
F
( Center Leg )
Assembly
I
( Front & Back)
Lower Brace
( Front & Back)
Upper Brace
J
ALLEN WRENCH
( included )
( not included )
G
( Left Leg )
Assembly
G
( Left Leg )
Assembly
