Sister Bay MSUM-A-R Assembly Instructions

(8)
A
(6)
B
(3)
B1
(8)
C
(8)
C1
(8)
D
You will also need a phillips-head screwdriver
( not included )

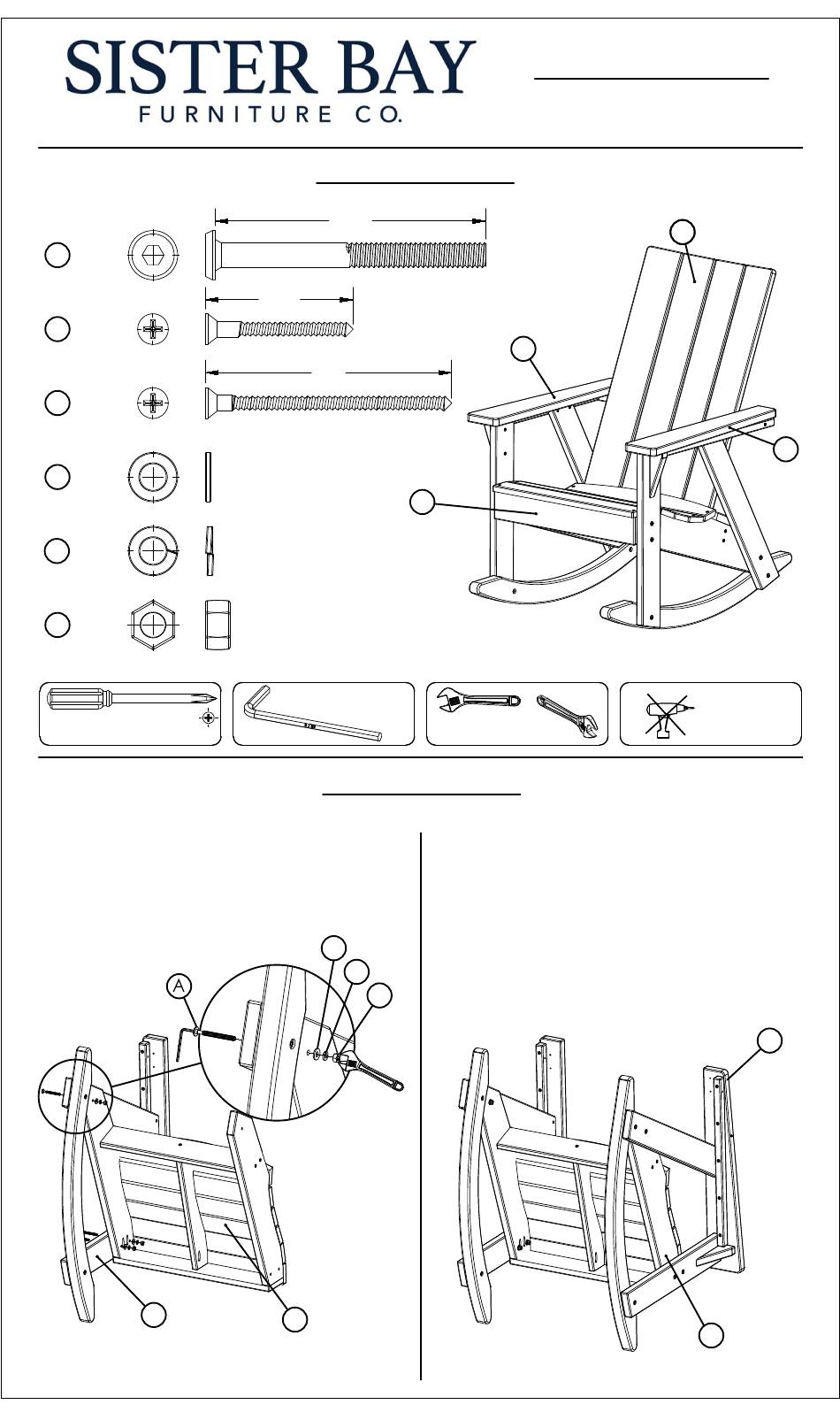

Figure 1
1 - Attach part (F), Left Arm Assembly , to part (G), Seat
Assembly. Align and insert a bolt (A) into all 4 holes,
insert washers (C)(C1) and hex nuts (D) from the other
side, see detail 1, only hand tighten for now. We'll use
the adjustable wrench and hex key to tighten
everything once the Back is on.
F
( Left Arm Assembly )

Hardware and Parts

2.75
1.50
2.0
(Seat Assembly)
ALLEN WRENCH
( included )
Assembly Instructions
C
C1
D
G
( Seat Assembly )
Assembly Instructions

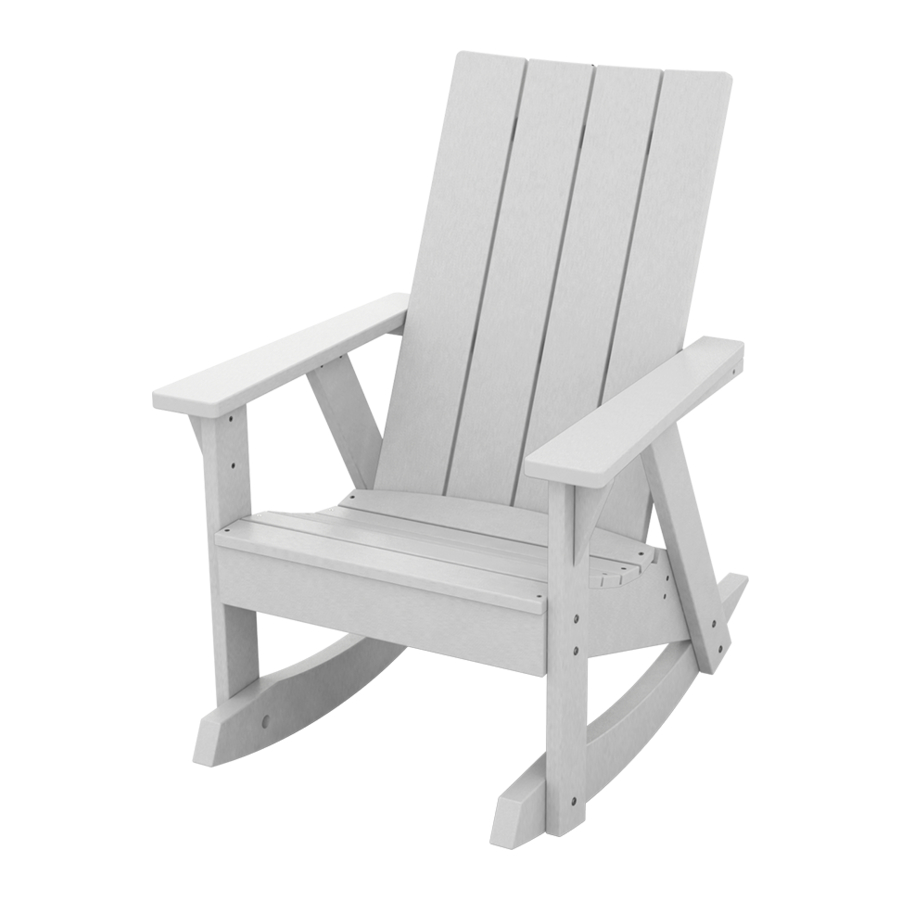

Summit Adirondack Rocker
( Right Arm Assembly )
E
G
WRENCH
( not included )
2 - Repeat step 1 on the other side attaching part (E), Right
Arm Assembly, to part (G), Seat Assembly. Again, align
and insert a bolt (A) into all 4 holes, insert washers
(C)(C1) and hex nuts (D) from the other side and hand
tighten.
Item No: MSUM-A-R
H
( Seat Back )
Do not use
any hand drill
on this product
Figure 2
( Right Arm Assembly )
G
( Seat Assembly )
F
( Left Arm
Assembly )
E
